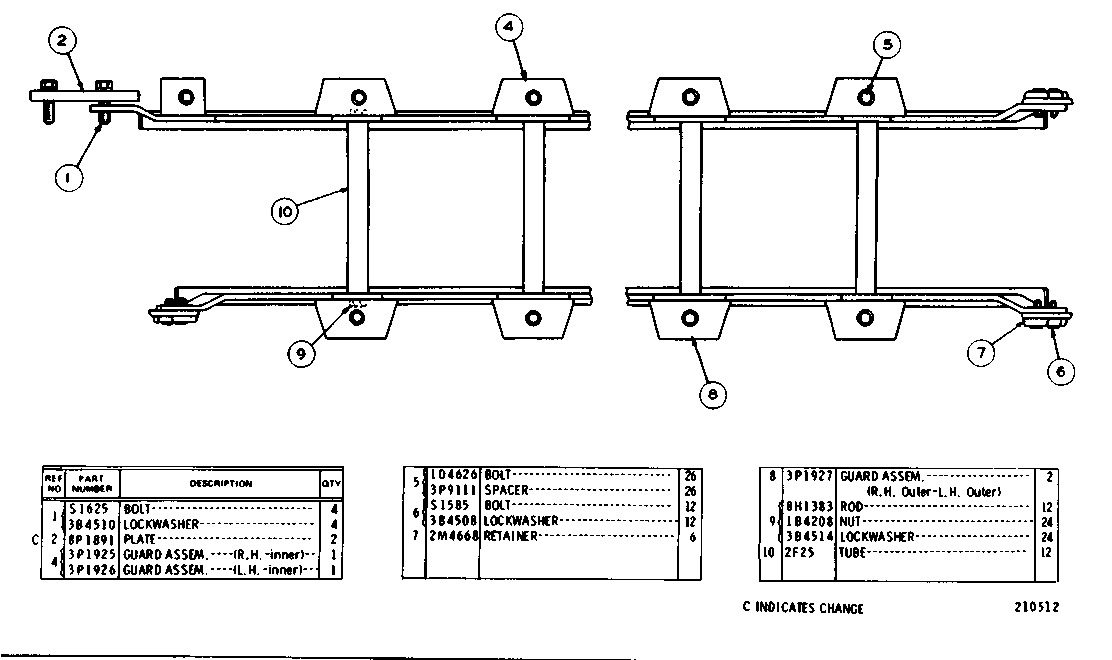

3P2358 TRACK ROLLER GUARD GROUP--Top ViewNOTE: QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH R.H. AND L.H. FRAMES

Group No: 3P2358
Part NumberPart NameQty
0S16251 BOLT4
3B4510LOCKWASHER4
8P18912 PLATE2
3P19254 GUARD ASSEM. (R.H.-inner)1
3P1926GUARD ASSEM. (L.H.-inner)1
1D46265 BOLT26
3P9111SPACER26
0S15856 BOLT12
3B4508LOCKWASHER12
2M46687 RETAINER6
3P19278 GUARD ASSEM.2
8H13839 ROD12
1B4208NUT24
3B4514LOCKWASHER24
2F002510 TUBE12
