System And Components

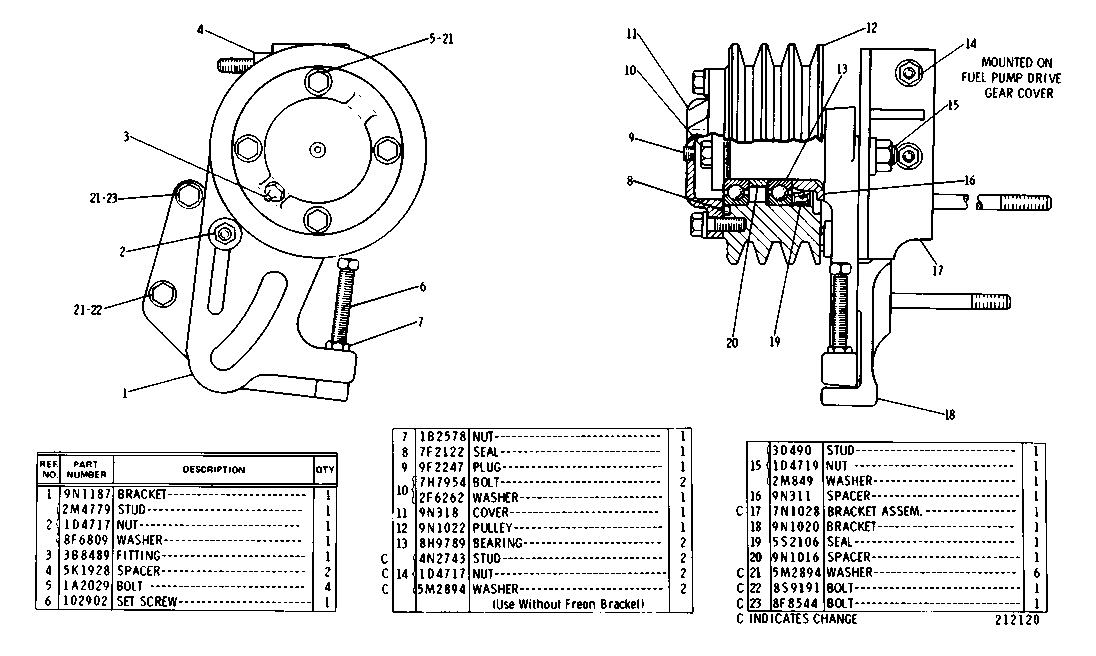

9N1222 BELT TIGHTENER GROUPAN ATTACHMENT. SEE FAN DRIVE CHART SHOWN ON PAGE 68 FOR USAGE
Group No: 9N1222
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9N1187 | 1 BRACKET | 1 | |
| 2M4779 | 2 STUD | 1 | |
| 1D4717 | NUT | 1 | |
| 8F6809 | WASHER | 1 | |
| 3B8489 | 3 FITTING | 1 | |
| 5K1928 | 4 SPACER | 2 | |
| 1A2029 | 5 BOLT | 4 | |
| 0102902 | 6 SET SCREW | 1 | |
| 1B2578 | 7 NUT | 1 | |
| 7F2122 | 8 SEAL | 1 | |
| 9F2247 | 9 PLUG | 1 | |
| 7H7954 | 10 BOLT | 2 | |
| 2F6262 | WASHER | 1 | |
| 9N0318 | 11 COVER | 1 | |
| 9N1022 | 12 PULLEY | 1 | |
| 8H9789 | 13 BEARING | 2 | |
| 4N2743 | 14 STUD | 2 | |
| 1D4717 | NUT | 2 | |
| 5M2894 | WASHER | 2 | |
| 3D0490 | 15 STUD | 1 | |
| 1D4719 | NUT | 1 | |
| 2M0849 | WASHER | 1 | |
| 9N0311 | 16 SPACER | 1 | |
| 7N1028 | 17 BRACKET ASSEM. | 1 | |
| 9N1020 | 18 BRACKET | 1 | |
| 5S2106 | 19 SEAL | 1 | |
| 9N1016 | 20 SPACER | 1 | |
| 5M2894 | 21 WASHER | 6 | |
| 8S9191 | 22 BOLT | 1 | |
| 8F8544 | 23 BOLT | 1 |
