System And Components

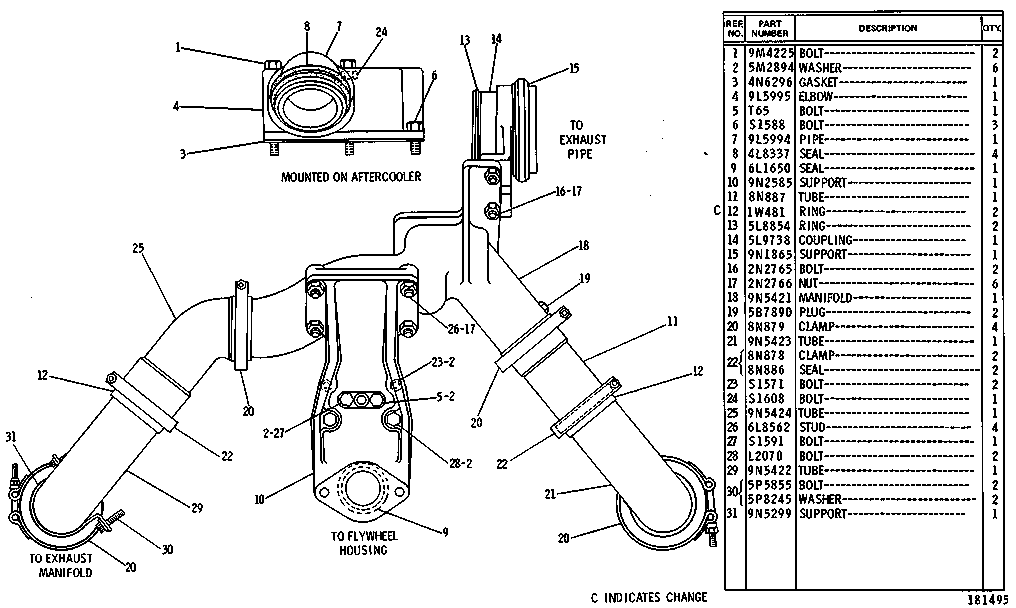

9N5202 AIR LINES GROUP--Aftercooler
Group No: 9N5202
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9M4225 | 1 BOLT | 2 | |
| 5M2894 | 2 WASHER | 6 | |
| 4N6296 | 3 GASKET | 1 | |
| 9L5995 | 4 ELBOW | 1 | |
| 0T0065 | 5 BOLT | 1 | |
| 0S1588 | 6 BOLT | 3 | |
| 9L5994 | 7 PIPE | 1 | |
| 4L8337 | 8 SEAL | 4 | |
| 6L1650 | 9 SEAL | 1 | |
| 9N2585 | 10 SUPPORT | 1 | |
| 8N0887 | 11 TUBE | 1 | |
| 1W0481 | 12 RING | 2 | |
| 5L8854 | 13 RING | 2 | |
| 5L9738 | 14 COUPLING | 1 | |
| 9N1865 | 15 SUPPORT | 1 | |
| 2N2765 | 16 BOLT | 2 | |
| 2N2766 | 17 NUT | 6 | |
| 9N5421 | 18 MANIFOLD | 1 | |
| 5B7890 | 19 PLUG | 2 | |
| 8N0879 | 20 CLAMP | 4 | |
| 9N5423 | 21 TUBE | 1 | |
| 8N0878 | 22 CLAMP | 2 | |
| 8N0886 | SEAL | 2 | |
| 0S1571 | 23 BOLT | 2 | |
| 0S1608 | 24 BOLT | 1 | |
| 9N5424 | 25 TUBE | 1 | |
| 6L8562 | 26 STUD | 4 | |
| 0S1591 | 27 BOLT | 1 | |
| 0L2070 | 28 BOLT | 2 | |
| 9N5422 | 29 TUBE | 1 | |
| 5P5855 | 30 BOLT | 2 | |
| 5P8245 | WASHER | 2 | |
| 9N5299 | 31 SUPPORT | 1 |
