System And Components

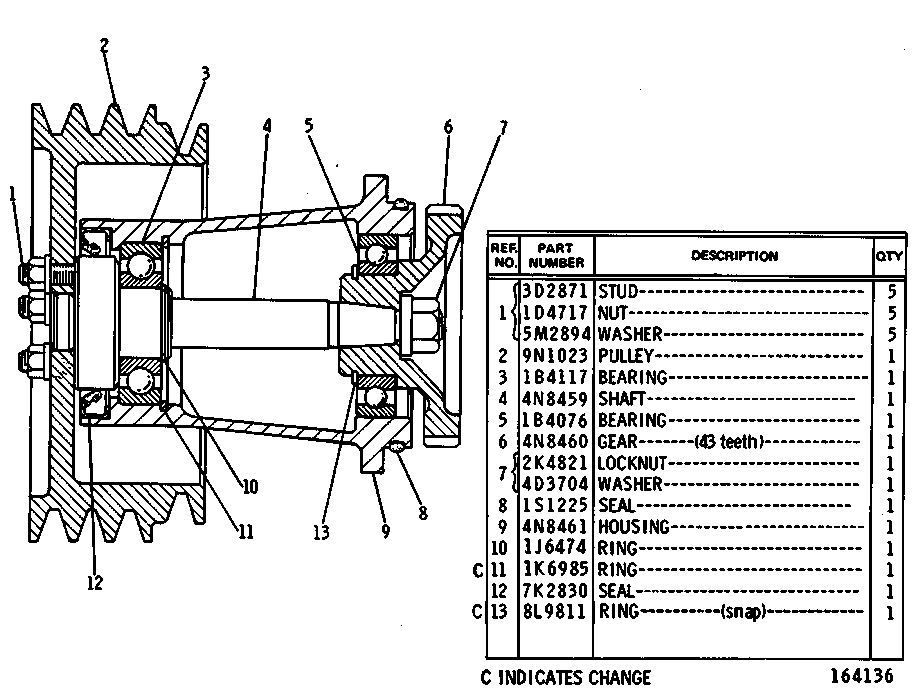

9N1223 AUXILIARY DRIVE GROUPAN ATTACHMENT. SEE FAN DRIVE CHART SHOWN ON PAGE 68 FOR USAGE
Group No: 9N1223
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3D2871 | 1 STUD | 5 | |
| 1D4717 | NUT | 5 | |
| 5M2894 | WASHER | 5 | |
| 9N1023 | 2 PULLEY | 1 | |
| 1B4117 | 3 BEARING | 1 | |
| 4N8459 | 4 SHAFT | 1 | |
| 1B4076 | 5 BEARING | 1 | |
| 4N8460 | 6 GEAR (43 teeth) | 1 | |
| 2K4821 | 7 LOCKNUT | 1 | |
| 4D3704 | WASHER | 1 | |
| 1S1225 | 8 SEAL | 1 | |
| 4N8461 | 9 HOUSING | 1 | |
| 1J6474 | 10 RING | 1 | |
| 1K6985 | 11 RING | 1 | |
| 7K2830 | 12 SEAL | 1 | |
| 8L9811 | 13 RING (snap) | 1 |
