System And Components

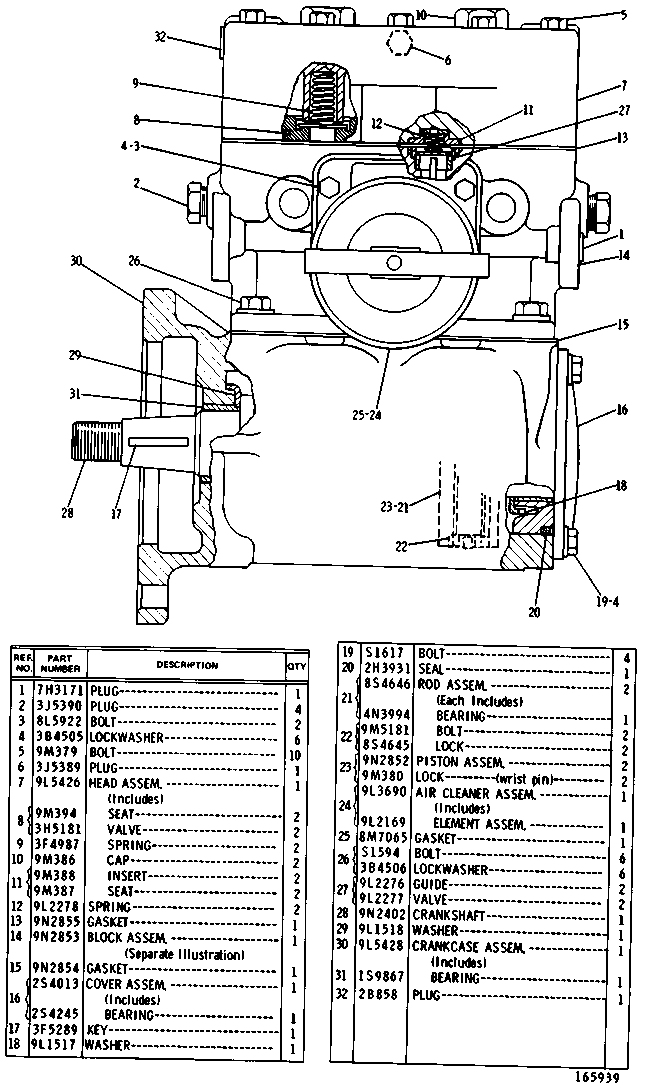

9N2779 AIR COMPRESSOR GROUPReplaced by 9N5782 listed on Page 133E. Serial No. 28V1042-Up
Group No: 9N2779
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7H3171 | 1 PLUG | 1 | |
| 3J5390 | 2 PLUG | 4 | |
| 8L5922 | 3 BOLT | 2 | |
| 3B4505 | 4 LOCKWASHER | 6 | |
| 9M0379 | 5 BOLT | 10 | |
| 3J5389 | 6 PLUG | 1 | |
| 9L5426 | 7 HEAD ASSEM. | 1 | |
| 9M0394 | 8 SEAT | 2 | |
| 3H5181 | VALVE | 2 | |
| 3F4987 | 9 SPRING | 2 | |
| 9M0386 | 10 CAP | 2 | |
| 9M0388 | 11 INSERT | 2 | |
| 9M0387 | SEAT | 2 | |
| 9L2278 | 12 SPRING | 2 | |
| 9N2855 | 13 GASKET | 1 | |
| 9N2853 | 14 BLOCK ASSEM. | 1 | |
| 9N2854 | 15 GASKET | 1 | |
| 2S4013 | 16 COVER ASSEM. | 1 | |
| 2S4245 | BEARING | 1 | |
| 3F5289 | 17 KEY | 1 | |
| 9L1517 | 18 WASHER | 1 | |
| 0S1617 | 19 BOLT | 4 | |
| 2H3931 | 20 SEAL | 1 | |
| 8S4646 | 21 ROD ASSEM. | 2 | |
| 4N3994 | BEARING | 1 | |
| 9M5181 | 22 BOLT | 2 | |
| 8S4645 | LOCK | 2 | |
| 9N2852 | 23 PISTON ASSEM. | 2 | |
| 9M0380 | LOCK (wrist pin) | 2 | |
| 9L3690 | 24 AIR CLEANER ASSEM. | 1 | |
| 9L2169 | ELEMENT ASSEM. | 1 | |
| 8M7065 | 25 GASKET | 1 | |
| 0S1594 | 26 BOLT | 6 | |
| 3B4506 | LOCKWASHER | 6 | |
| 9L2276 | 27 GUIDE | 2 | |
| 9L2277 | VALVE | 2 | |
| 9N2402 | 28 CRANKSHAFT | 1 | |
| 9L1518 | 29 WASHER | 1 | |
| 9L5428 | 30 CRANKCASE ASSEM. | 1 | |
| 1S9867 | 31 BEARING | 1 | |
| 2B0858 | 32 PLUG | 1 |
