System And Components

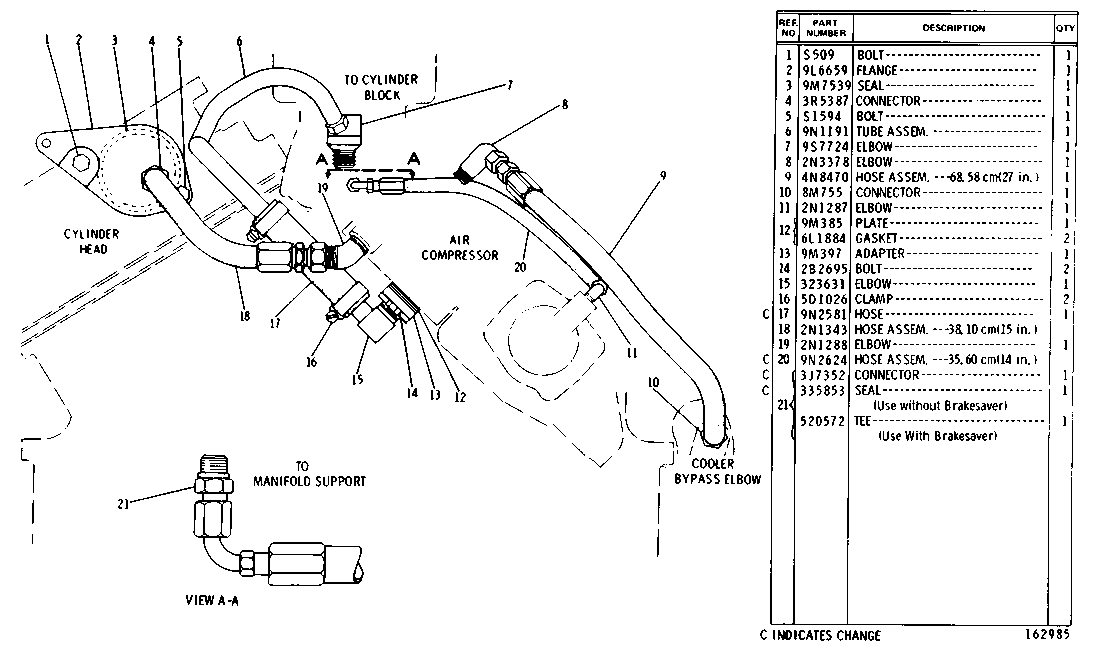

9N1190 AIR COMPRESSOR LINES GROUP--For Direct Injection EngineSerial No. 28V453 to 28V467 inclusive
Group No: 9N1190
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0S0509 | 1 BOLT | 1 | |
| 9L6659 | 2 FLANGE | 1 | |
| 9M7539 | 3 SEAL | 1 | |
| 3R5387 | 4 CONNECTOR | 1 | |
| 0S1594 | 5 BOLT | 1 | |
| 9N1191 | 6 TUBE ASSEM. | 1 | |
| 9S7724 | 7 ELBOW | 1 | |
| 2N3378 | 8 ELBOW | 1 | |
| 4N8470 | 9 HOSE ASSEM. 68.58 cm(27 in.) | 1 | |
| 8M0755 | 10 CONNECTOR | 1 | |
| 2N1287 | 11 ELBOW | 1 | |
| 9M0385 | 12 PLATE | 1 | |
| 6L1884 | GASKET | 2 | |
| 9M0397 | 13 ADAPTER | 1 | |
| 2B2695 | 14 BOLT | 2 | |
| 0323631 | 15 ELBOW | 1 | |
| 5D1026 | 16 CLAMP | 2 | |
| 9N2581 | 17 HOSE | 1 | |
| 2N1343 | 18 HOSE ASSEM. 38.10 cm(15 in.) | NULL | |
| 2N1288 | 19 ELBOW | 1 | |
| 9N2624 | 20 HOSE ASSEM. 35.60 cm(14 in.) | NULL | |
| 3J7352 | 21 CONNECTOR | 1 | |
| 0335853 | SEAL | 1 | |
| 0520572 | TEE | 1 |
