System And Components

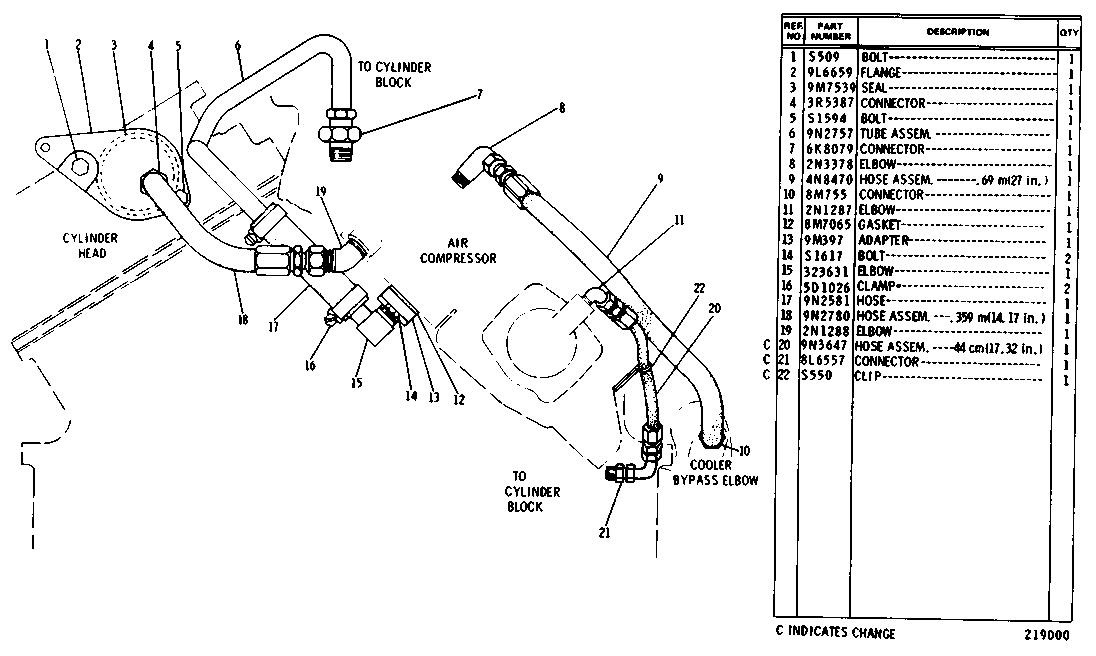

9N1190 AIR COMPRESSOR LINES GROUP--For Direct Injection EngineSerial No. 28V1042-UP
Group No: 9N1190
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0S0509 | 1 BOLT | 1 | |
| 9L6659 | 2 FLANGE | 1 | |
| 9M7539 | 3 SEAL | 1 | |
| 3R5387 | 4 CONNECTOR | 1 | |
| 0S1594 | 5 BOLT | 1 | |
| 9N2757 | 6 TUBE ASSEM. | 1 | |
| 6K8079 | 7 CONNECTOR | 1 | |
| 2N3378 | 8 ELBOW | 1 | |
| 4N8470 | 9 HOSE ASSEM. .69 m(27 in.) | 1 | |
| 8M0755 | 10 CONNECTOR | 1 | |
| 2N1287 | 11 ELBOW | 1 | |
| 8M7065 | 12 GASKET | 1 | |
| 9M0397 | 13 ADAPTER | 1 | |
| 0S1617 | 14 BOLT | 2 | |
| 0323631 | 15 ELBOW | 1 | |
| 5D1026 | 16 CLAMP | 2 | |
| 9N2581 | 17 HOSE | 1 | |
| 9N2780 | 18 HOSE ASSEM. .359 m(14.17 in.) | 1 | |
| 2N1288 | 19 ELBOW | 1 | |
| 9N3647 | 20 HOSE ASSEM. 44 cm(17.32 in.) | 1 | |
| 8L6557 | 21 CONNECTOR | 1 | |
| 0S0550 | 22 CLIP | 1 |
