System And Components

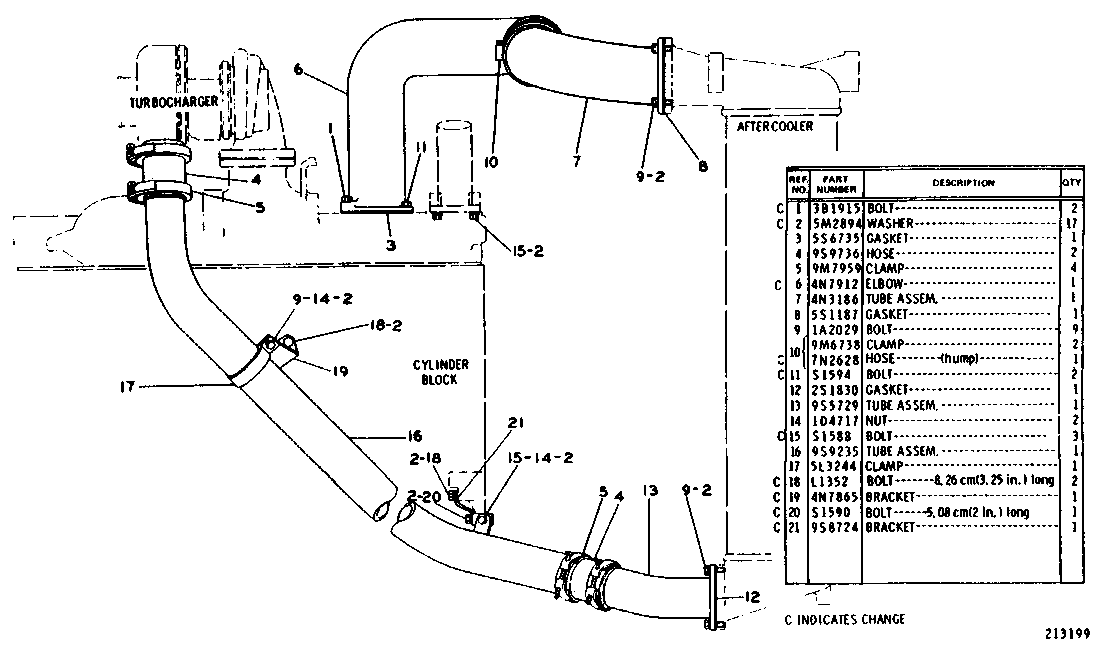

2P7398 AFTERCOOLER AIR LINES GROUP
Group No: 2P7398
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B1915 | 1 BOLT | 2 | |
| 5M2894 | 2 WASHER | 17 | |
| 5S6735 | 3 GASKET | 1 | |
| 9S9736 | 4 HOSE | 2 | |
| 9M7959 | 5 CLAMP | 4 | |
| 4N7912 | 6 ELBOW | 1 | |
| 4N3186 | 7 TUBE ASSEM. | 1 | |
| 5S1187 | 8 GASKET | 1 | |
| 1A2029 | 9 BOLT | 9 | |
| 9M6738 | 10 CLAMP | 2 | |
| 7N2628 | HOSE (hump) | 1 | |
| 0S1594 | 11 BOLT | 2 | |
| 2S1830 | 12 GASKET | 1 | |
| 9S5729 | 13 TUBE ASSEM. | 1 | |
| 1D4717 | 14 NUT | 2 | |
| 0S1588 | 15 BOLT | 3 | |
| 9S9235 | 16 TUBE ASSEM. | 1 | |
| 5L3244 | 17 CLAMP | 1 | |
| 0L1352 | 18 BOLT 8.26 cm(3.25 in.) long | 2 | |
| 4N7865 | 19 BRACKET | 1 | |
| 0S1590 | 20 BOLT 5.08 cm(2 in.) long | 1 | |
| 9S8724 | 21 BRACKET | 1 |
