System And Components

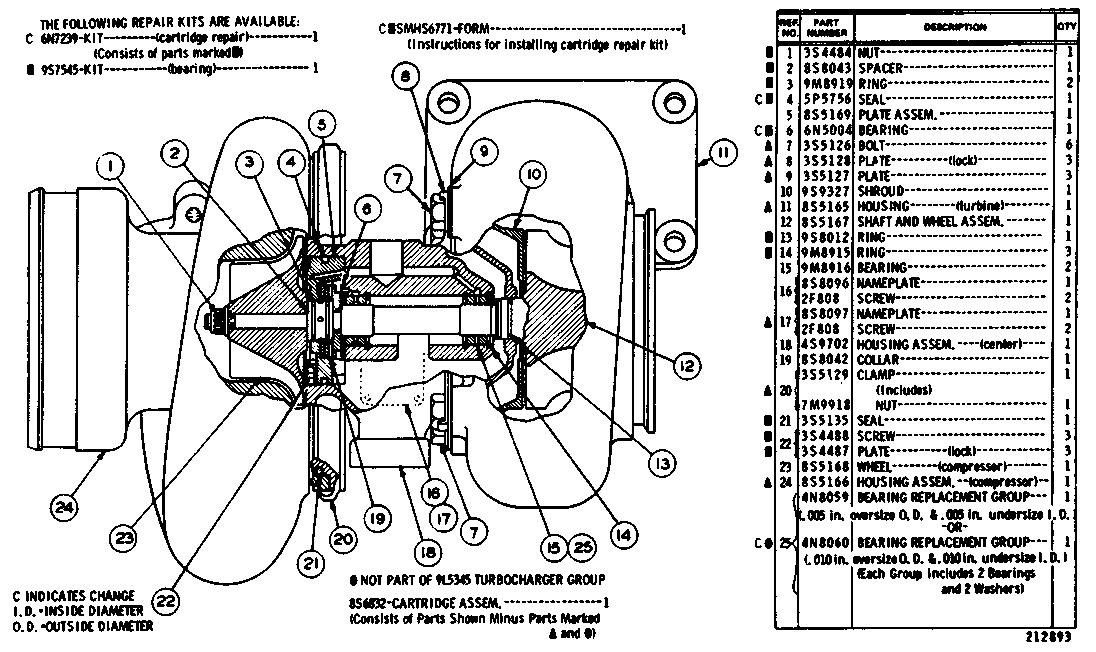

9L5345 TURBOCHARGER GROUP--Type 1Replaced by 8S8039 shown on Page 42. Engine Serial No. 3N49744 to 3N86459 inclusive
Group No: 9L5345
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N7239 | KIT (cartridge repair) | 1 | |
| 9S7549 | KIT (bearing) | 1 | |
| 8S6832 | CARTRIDGE ASSEM. | 1 | |
| 3S4484 | 1 NUT | 1 | |
| 8S8043 | 2 SPACER | 1 | |
| 9M8919 | 3 RING | 2 | |
| 5P5756 | 4 SEAL | 1 | |
| 8S5169 | 5 PLATE ASSEM. | 1 | |
| 6N5004 | 6 BEARING | 1 | |
| 3S5126 | 7 BOLT | 6 | |
| 3S5128 | 8 PLATE (lock) | 3 | |
| 3S5127 | 9 PLATE | 3 | |
| 9S9327 | 10 SHROUD | 1 | |
| 8S5165 | 11 HOUSING (turbine) | 1 | |
| 8S5167 | 12 SHAFT AND WHEEL ASSEM. | 1 | |
| 9S8012 | 13 RING | 1 | |
| 9M8915 | 14 RING | 3 | |
| 9M8916 | 15 BEARING | 2 | |
| 8S8096 | 16 NAMEPLATE | 1 | |
| 2F0808 | SCREW | 2 | |
| 8S8097 | 17 NAMEPLATE | 1 | |
| 2F0808 | SCREW | 2 | |
| 4S9702 | 18 HOUSING ASSEM. (center) | 1 | |
| 8S8042 | 19 COLLAR | 1 | |
| 3S5129 | 20 CLAMP | 1 | |
| 7M9918 | NUT | 1 | |
| 3S5135 | 21 SEAL | 1 | |
| 3S4488 | 22 SCREW | 3 | |
| 3S4487 | PLATE (lock) | 3 | |
| 8S5168 | 23 WHEEL (compressor) | 1 | |
| 8S5166 | 24 HOUSING ASSEM. (compressor) | 1 | |
| 4N8059 | 25 BEARING REPLACEMENT GROUP | 1 | |
| 4N8060 | BEARING REPLACEMENT GROUP | 1 |
