System And Components

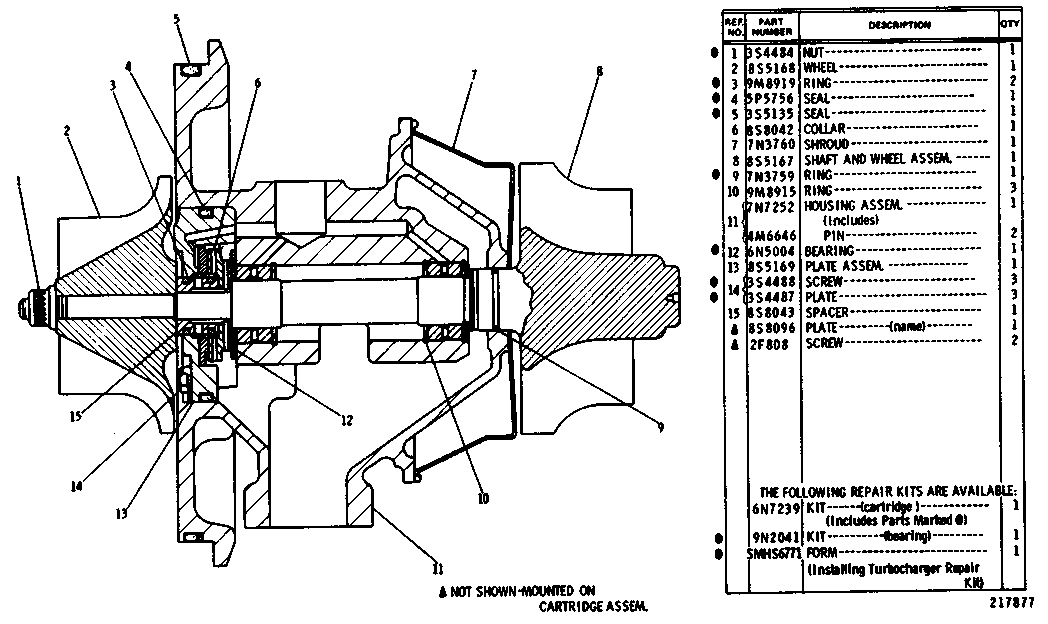

7N7248 CARTRIDGE GROUPPart of 9L5345 Turbocharger Group shown on Page 41
Group No: 7N7248
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S4484 | 1 NUT | 1 | |
| 8S5168 | 2 WHEEL | 1 | |
| 9M8919 | 3 RING | 2 | |
| 5P5756 | 4 SEAL | 1 | |
| 3S5135 | 5 SEAL | 1 | |
| 8S8042 | 6 COLLAR | 1 | |
| 7N3760 | 7 SHROUD | 1 | |
| 8S5167 | 8 SHAFT AND WHEEL ASSEM. | 1 | |
| 7N3759 | 9 RING | 1 | |
| 9M8915 | 10 RING | 3 | |
| 7N7252 | 11 HOUSING ASSEM. | 1 | |
| 4M6646 | PIN | 2 | |
| 6N5004 | 12 BEARING | 1 | |
| 8S5169 | 13 PLATE ASSEM. | 1 | |
| 3S4488 | 14 SCREW | 3 | |
| 3S4487 | PLATE | 3 | |
| 8S8043 | 15 SPACER | 1 | |
| 8S8096 | PLATE (name) | 1 | |
| 2F0808 | SCREW | 2 | |
| 6N7239 | KIT (cartridge) | 1 | |
| 9N2041 | KIT (bearing) | 1 |
