System And Components

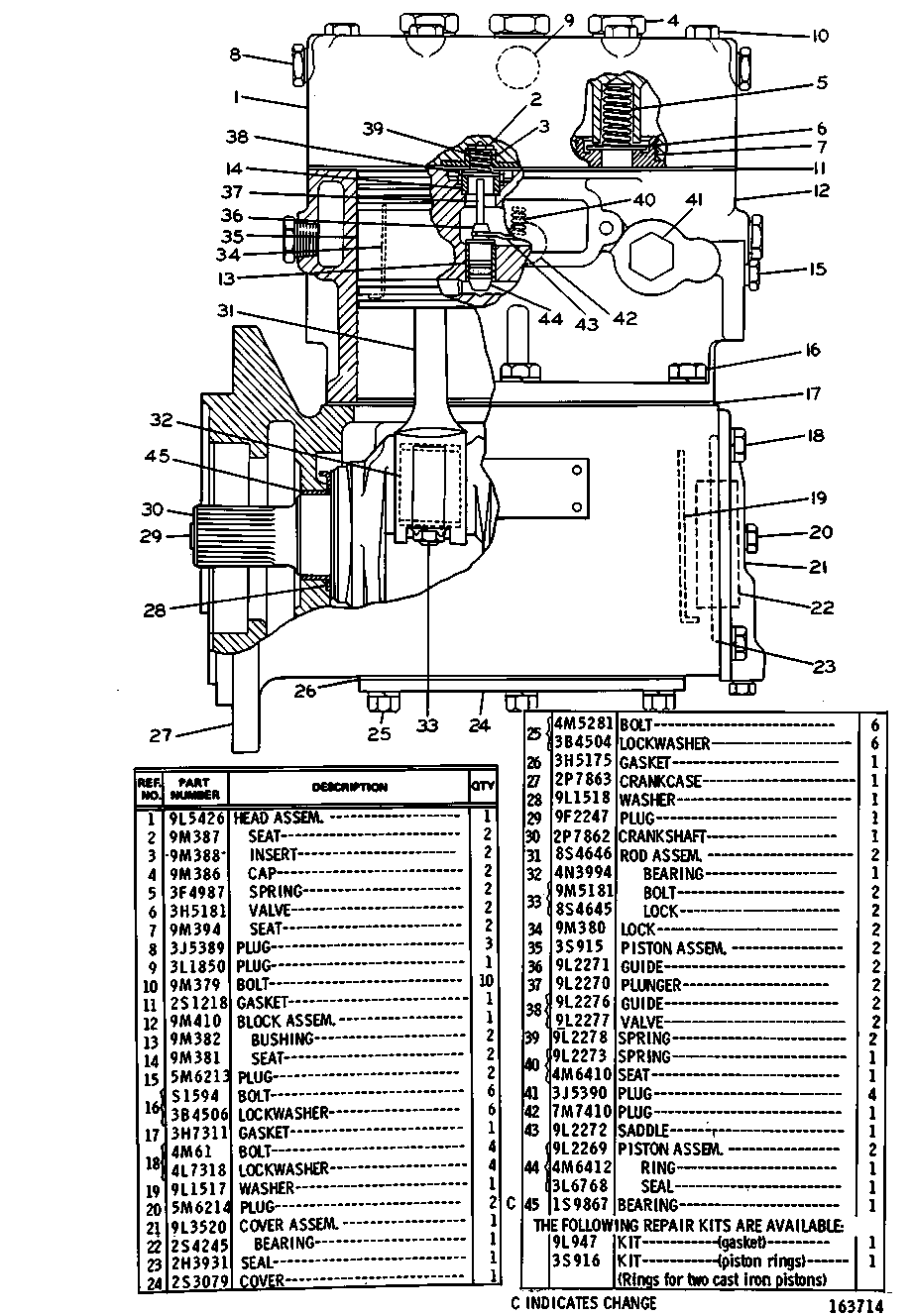

2P1830 AIR COMPRESSOR GROUPEngine Serial No. 3N49744 to 3N59264 inclusive
Group No: 2P1830
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9L5426 | 1 HEAD ASSEM. | 1 | |
| 9M0387 | 2 SEAT | 2 | |
| 9M0388 | 3 INSERT | 2 | |
| 9M0386 | 4 CAP | 2 | |
| 3F4987 | 5 SPRING | 2 | |
| 3H5181 | 6 VALVE | 2 | |
| 9M0394 | 7 SEAT | 2 | |
| 3J5389 | 8 PLUG | 3 | |
| 3L1850 | 9 PLUG | 1 | |
| 9M0379 | 10 BOLT | 10 | |
| 2S1218 | 11 GASKET | 1 | |
| 9M0410 | 12 BLOCK ASSEM. | 1 | |
| 9M0382 | 13 BUSHING | 2 | |
| 9M0381 | 14 SEAT | 2 | |
| 5M6213 | 15 PLUG | 2 | |
| 0S1594 | 16 BOLT | 6 | |
| 3B4506 | LOCKWASHER | 6 | |
| 3H7311 | 17 GASKET | 1 | |
| 4M0061 | 18 BOLT | 4 | |
| 4L7318 | LOCKWASHER | 4 | |
| 9L1517 | 19 WASHER | 1 | |
| 5M6214 | 20 PLUG | 2 | |
| 9L3520 | 21 COVER ASSEM. | 1 | |
| 2S4245 | 22 BEARING | 1 | |
| 2H3931 | 23 SEAL | 1 | |
| 2S3079 | 24 COVER | 1 | |
| 4M5281 | 25 BOLT | 6 | |
| 3B4504 | LOCKWASHER | 6 | |
| 3H5175 | 26 GASKET | 1 | |
| 2P7863 | 27 CRANKCASE | 1 | |
| 9L1518 | 28 WASHER | 1 | |
| 9F2247 | 29 PLUG | 1 | |
| 2P7862 | 30 CRANKSHAFT | 1 | |
| 8S4646 | 31 ROD ASSEM. | 2 | |
| 4N3994 | 32 BEARING | 1 | |
| 9M5181 | 33 BOLT | 2 | |
| 8S4645 | LOCK | 2 | |
| 9M0380 | 34 LOCK | 2 | |
| 3S0915 | 35 PISTON ASSEM. | 2 | |
| 9L2271 | 36 GUIDE | 2 | |
| 9L2270 | 37 PLUNGER | 2 | |
| 9L2276 | 38 GUIDE | 2 | |
| 9L2277 | VALVE | 2 | |
| 9L2278 | 39 SPRING | 2 | |
| 9L2273 | 40 SPRING | 1 | |
| 4M6410 | SEAT | 1 | |
| 3J5390 | 41 PLUG | 4 | |
| 7M7410 | 42 PLUG | 1 | |
| 9L2272 | 43 SADDLE | 1 | |
| 9L2269 | 44 PISTON ASSEM. | 2 | |
| 4M6412 | RING | 1 | |
| 3L6768 | SEAL | 1 | |
| 1S9867 | 45 BEARING | 1 | |
| 9L0947 | KIT (gasket) | 1 | |
| 3S0916 | KIT (piston rings) | 1 |
