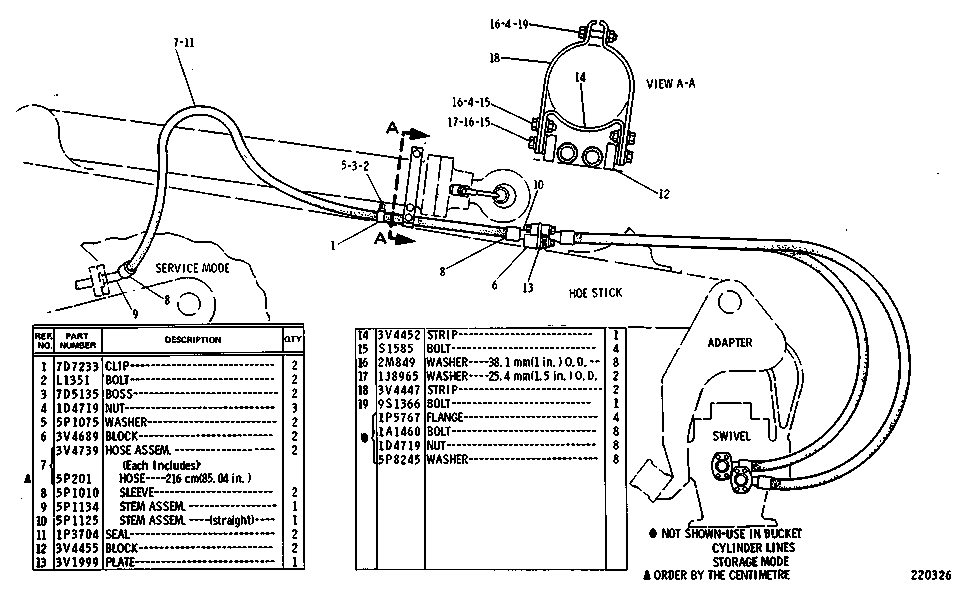

3V9645 CLAMSHELL LINES GROUP--6.5 Ft. Stick--Part 1 of 2FOR USE WITH 8K3407 OR 3V8830 HOE STICK ARRANGEMENTS AND 8K4959 ACTUATOR ARRANGEMENT

Group No: 3V9645
Part NumberPart NameQty
7D72331 CLIP2
0L13512 BOLT2
7D51353 BOSS2
1D47194 NUT3
5P10755 WASHER2
3V46896 BLOCK2
3V47397 HOSE ASSEM.2
5P0201HOSE 216 cm(85.04 in.)NULL
5P10108 SLEEVE2
5P11349 STEM ASSEM.1
5P112510 STEM ASSEM. (straight)1
1P370411 SEAL2
3V445512 BLOCK2
3V199913 PLATE1
3V445214 STRIP1
0S158515 BOLT4
2M084916 WASHER 38.1 mm(1 in.) O.D.8
1J896517 WASHER 25.4 mm(1.5 in.) O.D.2
3V444718 STRIP2
9S136619 BOLT1
1P5767FLANGE4
1A1460BOLT8
1D4719NUT8
5P8245WASHER8
