System And Components

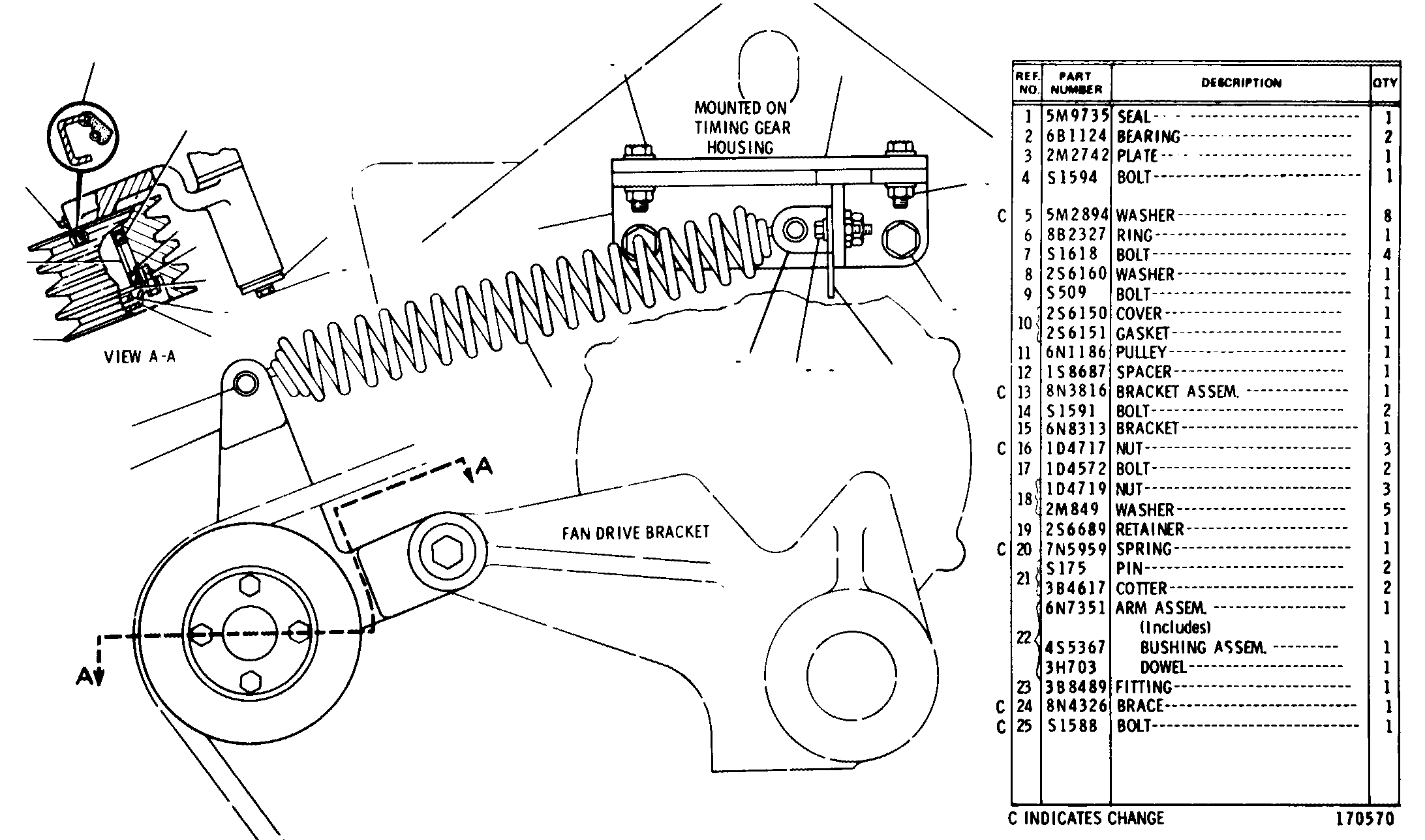

6N6636 BELT TIGHTENER GROUPSerial No. 42X1 to 42X745 inclusive
Group No: 6N6636
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5M9735 | 1 SEAL | 1 | |
| 6B1124 | 2 BEARING | 2 | |
| 2M2742 | 3 PLATE | 1 | |
| 0S1594 | 4 BOLT | 1 | |
| 5M2894 | 5 WASHER | 8 | |
| 8B2327 | 6 RING | 1 | |
| 0S1618 | 7 BOLT | 4 | |
| 2S6160 | 8 WASHER | 1 | |
| 0S0509 | 9 BOLT | 1 | |
| 2S6150 | 10 COVER | 1 | |
| 2S6151 | GASKET | 1 | |
| 6N1186 | 11 PULLEY | 1 | |
| 1S8687 | 12 SPACER | 1 | |
| 8N3816 | 13 BRACKET ASSEM. | 1 | |
| 0S1591 | 14 BOLT | 2 | |
| 6N8313 | 15 BRACKET | 1 | |
| 1D4717 | 16 NUT | 3 | |
| 1D4572 | 17 BOLT | 2 | |
| 1D4719 | 18 NUT | 3 | |
| 2M0849 | WASHER | 5 | |
| 2S6689 | 19 RETAINER | 1 | |
| 7N5959 | 20 SPRING | 1 | |
| 0S0175 | 21 PIN | 2 | |
| 3B4617 | COTTER | 2 | |
| 6N7351 | 22 ARM ASSEM. | 1 | |
| 4S5367 | BUSHING ASSEM. | 1 | |
| 3H0703 | DOWEL | 1 | |
| 3B8489 | 23 FITTING | 1 | |
| 8N4326 | 24 BRACE | 1 | |
| 0S1588 | 25 BOLT | 1 |
