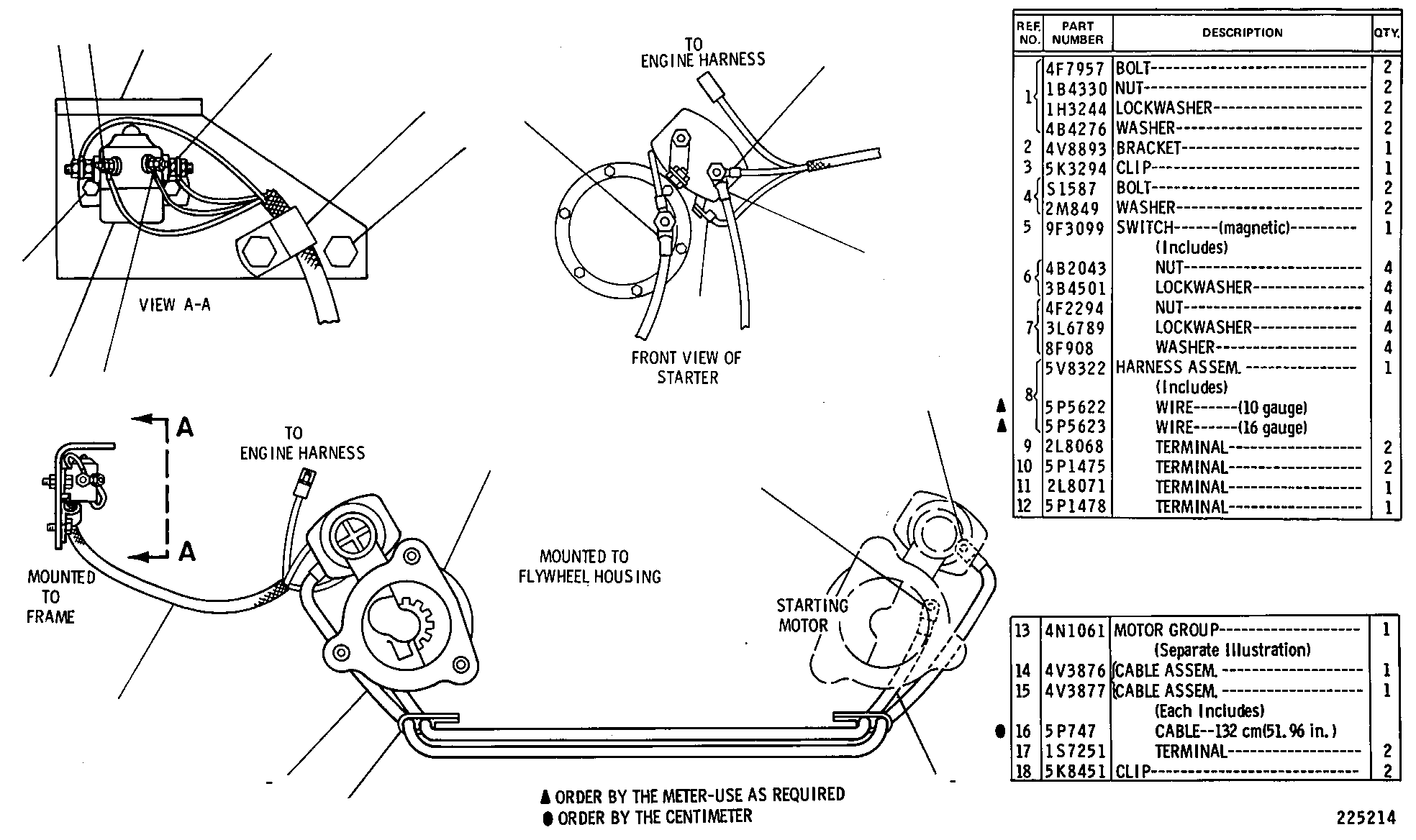

5V8452 ELECTRIC STARTING MOTOR GROUPSerial No. 42X655--Up
Group No: 5V8452
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4F7957 | 1 BOLT | 2 | |
| 1B4330 | NUT | 2 | |
| 1H3244 | LOCKWASHER | 2 | |
| 4B4276 | WASHER | 2 | |
| 4V8893 | 2 BRACKET | 1 | |
| 5K3294 | 3 CLIP | 1 | |
| 0S1587 | 4 BOLT | 2 | |
| 2M0849 | WASHER | 2 | |
| 9F3099 | 5 SWITCH (magnetic) | 1 | |
| 4B2043 | 6 NUT | 4 | |
| 3B4501 | LOCKWASHER | 4 | |
| 4F2294 | 7 NUT | 4 | |
| 3L6789 | LOCKWASHER | 4 | |
| 8F0908 | WASHER | 4 | |
| 5V8322 | 8 HARNESS ASSEM. | 1 | |
| 5P5622 | WIRE (10 gauge) | NULL | |
| 5P5623 | WIRE (16 gauge) | NULL | |
| 2L8068 | 9 TERMINAL | 2 | |
| 5P1475 | 10 TERMINAL | 2 | |
| 2L8071 | 11 TERMINAL | 1 | |
| 5P1478 | 12 TERMINAL | 1 | |
| 4N1061 | 13 MOTOR GROUP | 1 | |
| 4V3876 | 14 CABLE ASSEM. | 1 | |
| 4V3877 | 15 CABLE ASSEM. | 1 | |
| 5P0747 | 16 CABLE 132 cm(51.96 in.) | NULL | |
| 1S7251 | 17 TERMINAL | 2 | |
| 5K8451 | 18 CLIP | 2 |
