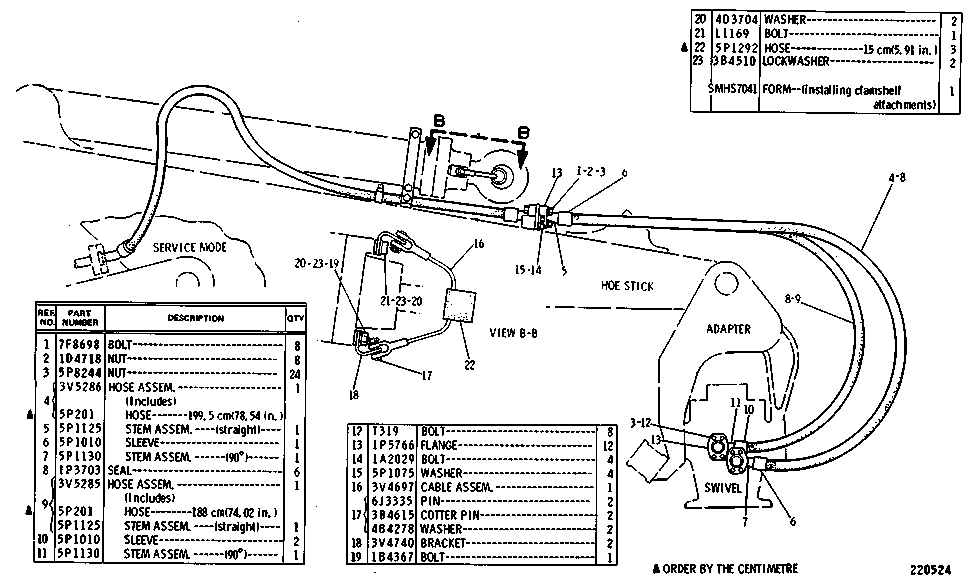

Assembly
100%

3V9645 CLAMSHELL LINES GROUP-PART 2FOR USE WITH 3V8830 HOE STICK ARRANGEMENT AND 8K4959 ACTUATOR ARRANGEMENT

Group No: 3V9645
Part NumberPart NameQty
7F86981 BOLT8
1D47182 NUT8
5P82443 NUT24
3V52864 HOSE ASSEM.1
5P0201HOSE 199.5 cm(78.54 in.)NULL
5P11255 STEM ASSEM. (straight)1
5P10106 SLEEVE1
5P11307 STEM ASSEM. (90 degrees)1
1P37038 SEAL6
3V52859 HOSE ASSEM.1
5P0201HOSE 188 cm(74.02 in.)NULL
5P1125STEM ASSEM. (straight)1
5P101010 SLEEVE2
5P113011 STEM ASSEM. (90 degrees)1
0T031912 BOLT8
1P576613 FLANGE12
1A202914 BOLT4
5P107515 WASHER4
3V469716 CABLE ASSEM.1
6J333517 PIN2
3B4615COTTER PIN2
4B4278WASHER2
3V474018 BRACKET2
1B436719 BOLT1
4D370420 WASHER2
0L116921 BOLT1
5P129222 HOSE 15 cm(5.91 in.)3
3B451023 LOCKWASHER2
