System And Components

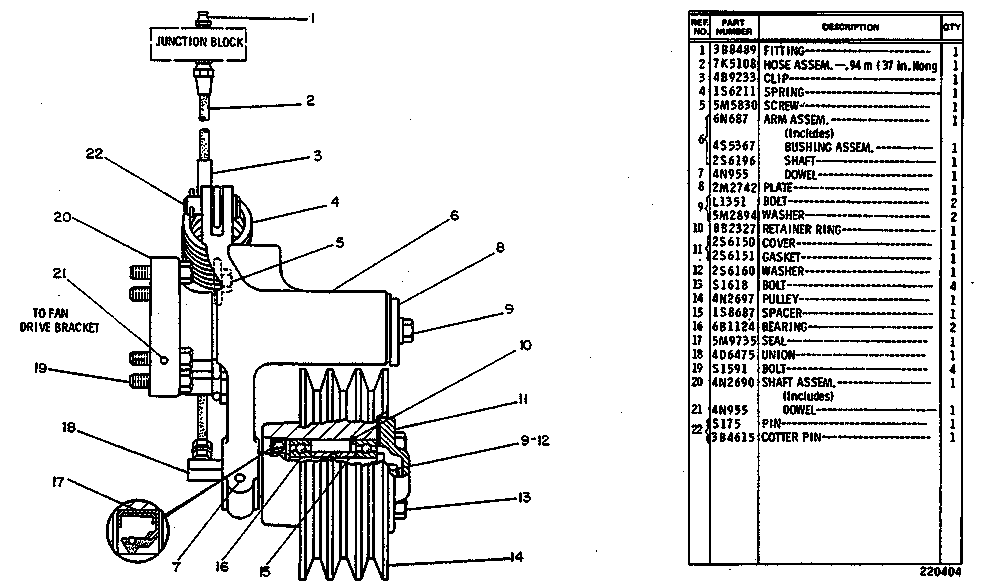

6N2210 BELT TIGHTNER GROUP
Group No: 6N2210
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B8489 | 1 FITTING | 1 | |
| 7K5108 | 2 HOSE ASSEM. .94 m (37 in.) long | 1 | |
| 4B9233 | 3 CLIP | 1 | |
| 1S6211 | 4 SPRING | 1 | |
| 5M5830 | 5 SCREW | 1 | |
| 6N0687 | 6 ARM ASSEM. | 1 | |
| 4S5367 | BUSHING ASSEM. | 1 | |
| 2S6196 | SHAFT | 1 | |
| 4N0955 | 7 DOWEL | 1 | |
| 2M2742 | 8 PLATE | 1 | |
| 0L1351 | 9 BOLT | 2 | |
| 5M2894 | WASHER | 2 | |
| 8B2327 | 10 RETAINER RING | 1 | |
| 2S6150 | 11 COVER | 1 | |
| 2S6151 | GASKET | 1 | |
| 2S6160 | 12 WASHER | 1 | |
| 0S1618 | 13 BOLT | 4 | |
| 4N2697 | 14 PULLEY | 1 | |
| 1S8687 | 15 SPACER | 1 | |
| 6B1124 | 16 BEARING | 2 | |
| 5M9735 | 17 SEAL | 1 | |
| 4D6475 | 18 UNION | 1 | |
| 0S1591 | 19 BOLT | 4 | |
| 4N2690 | 20 SHAFT ASSEM. | 1 | |
| 4N0955 | 21 DOWEL | 1 | |
| 0S0175 | 22 PIN | 1 | |
| 3B4615 | COTTER PIN | 1 |
