System And Components

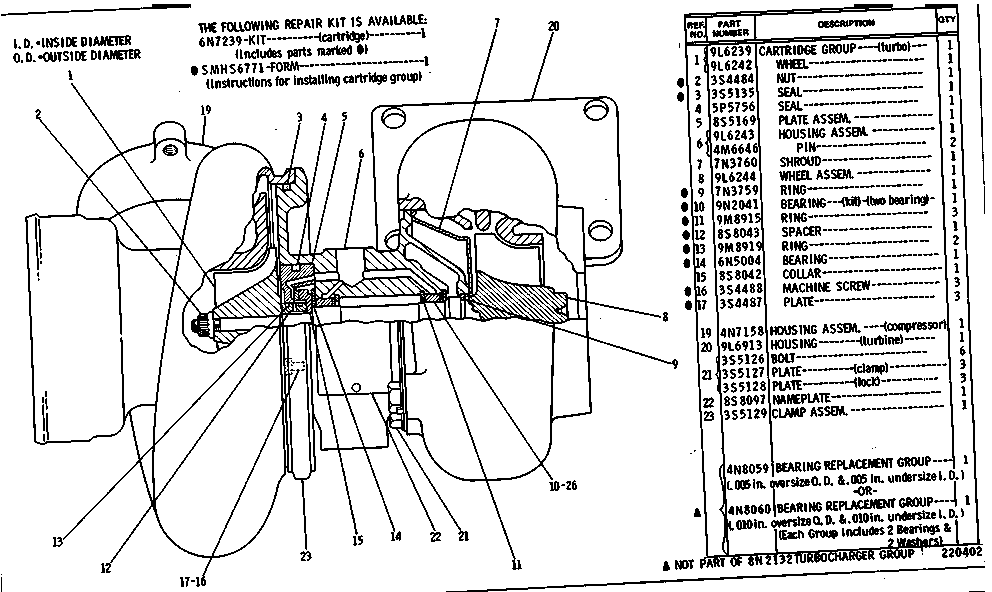

8N2132 TURBOCHARGER GROUP--Replaced by 9L6308 shown on Page 45Engine Serial No. 70V5101 to 70V9198 inclusive
Group No: 8N2132
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9L6239 | 1 CARTRIDGE GROUP (turbo) | 1 | |
| 9L6242 | WHEEL | 1 | |
| 3S4484 | 2 NUT | 1 | |
| 3S5135 | 3 SEAL | 1 | |
| 5P5756 | 4 SEAL | 1 | |
| 8S5169 | 5 PLATE ASSEM. | 1 | |
| 9L6243 | 6 HOUSING ASSEM. | 1 | |
| 4M6646 | PIN | 2 | |
| 7N3760 | 7 SHROUD | 1 | |
| 9L6244 | 8 WHEEL ASSEM. | 1 | |
| 7N3759 | 9 RING | 1 | |
| 9N2041 | 10 BEARING (kit)-(two bearing) | 1 | |
| 9M8915 | 11 RING | 3 | |
| 8S8043 | 12 SPACER | 1 | |
| 9M8919 | 13 RING | 2 | |
| 6N5004 | 14 BEARING | 1 | |
| 8S8042 | 15 COLLAR | 1 | |
| 3S4488 | 16 MACHINE SCREW | 3 | |
| 3S4487 | 17 PLATE | 3 | |
| 4N7158 | 19 HOUSING ASSEM. (compressor) | 1 | |
| 9L6913 | 20 HOUSING (turbine) | 1 | |
| 3S5126 | 21 BOLT | 6 | |
| 3S5127 | PLATE (clamp) | 3 | |
| 3S5128 | PLATE (lock) | 3 | |
| 8S8097 | 22 NAMEPLATE | 1 | |
| 3S5129 | 23 CLAMP ASSEM. | 1 | |
| 4N8059 | BEARING REPLACEMENT GROUP | 1 | |
| 4N8060 | BEARING REPLACEMENT GROUP | 1 | |
| 6N7239 | KIT (cartridge) | 1 |
