System And Components

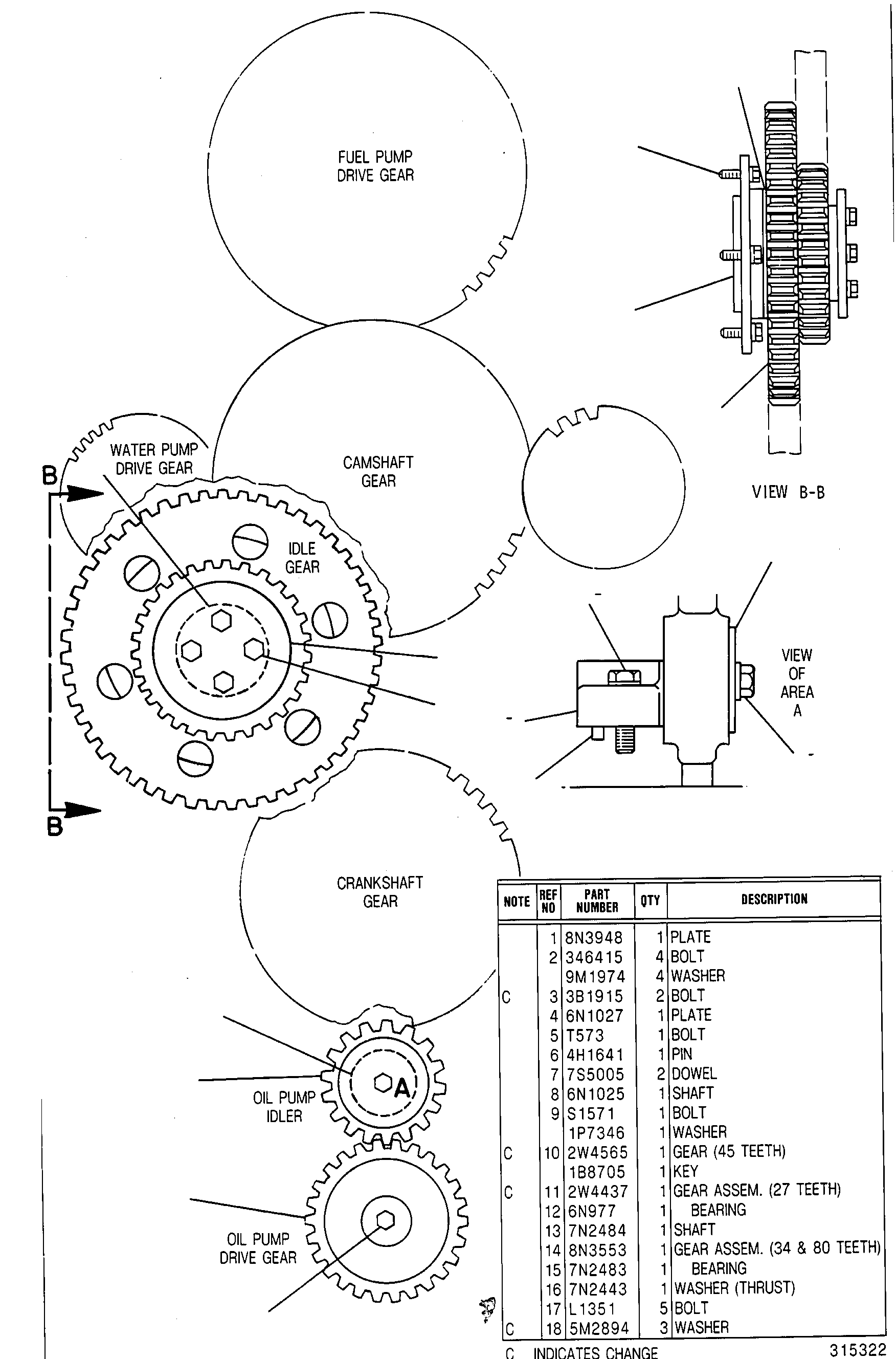

8N2985 FRONT TIMING GEAR GROUPENGINE SERIAL NO. 73W2999-UP
Group No: 8N2985
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8N3948 | 1 PLATE-THRUST | 1 | |
| 0346415 | 2 BOLT | 4 | |
| 9M1974 | WASHER | 4 | |
| 3B1915 | 3 BOLT | 2 | |
| 6N1027 | 4 PLATE-THRUST | 1 | |
| 0T0573 | 5 BOLT | 1 | |
| 4H1641 | 6 PIN-SPRING | 1 | |
| 7S5005 | 7 DOWEL | 2 | |
| 6N1025 | 8 SHAFT-PUMP IDLER | 1 | |
| 0S1571 | 9 BOLT | 1 | |
| 1P7346 | WASHER | 1 | |
| 2W4565 | 10 GEAR-OIL PUMP DRIVE (45 TEETH) | 1 | |
| 1B8705 | KEY-WOODRUFF | 1 | |
| 2W4437 | 11 GEAR AS-IDLER (27 TEETH) | 1 | |
| 6N0977 | 12 BEARING-SLEEVE | 1 | |
| 7N2484 | 13 SHAFT-DRIVE IDLER | 1 | |
| 8N3553 | 14 GEAR AS-IDLER (34 & 80 TEETH) | 1 | |
| 7N2483 | 15 BEARING-SLEEVE | 1 | |
| 7N2443 | 16 WASHER-THRUST (THRUST) | 1 | |
| 0L1351 | 17 BOLT | 5 | |
| 5M2894 | 18 WASHER | 3 |
