System And Components

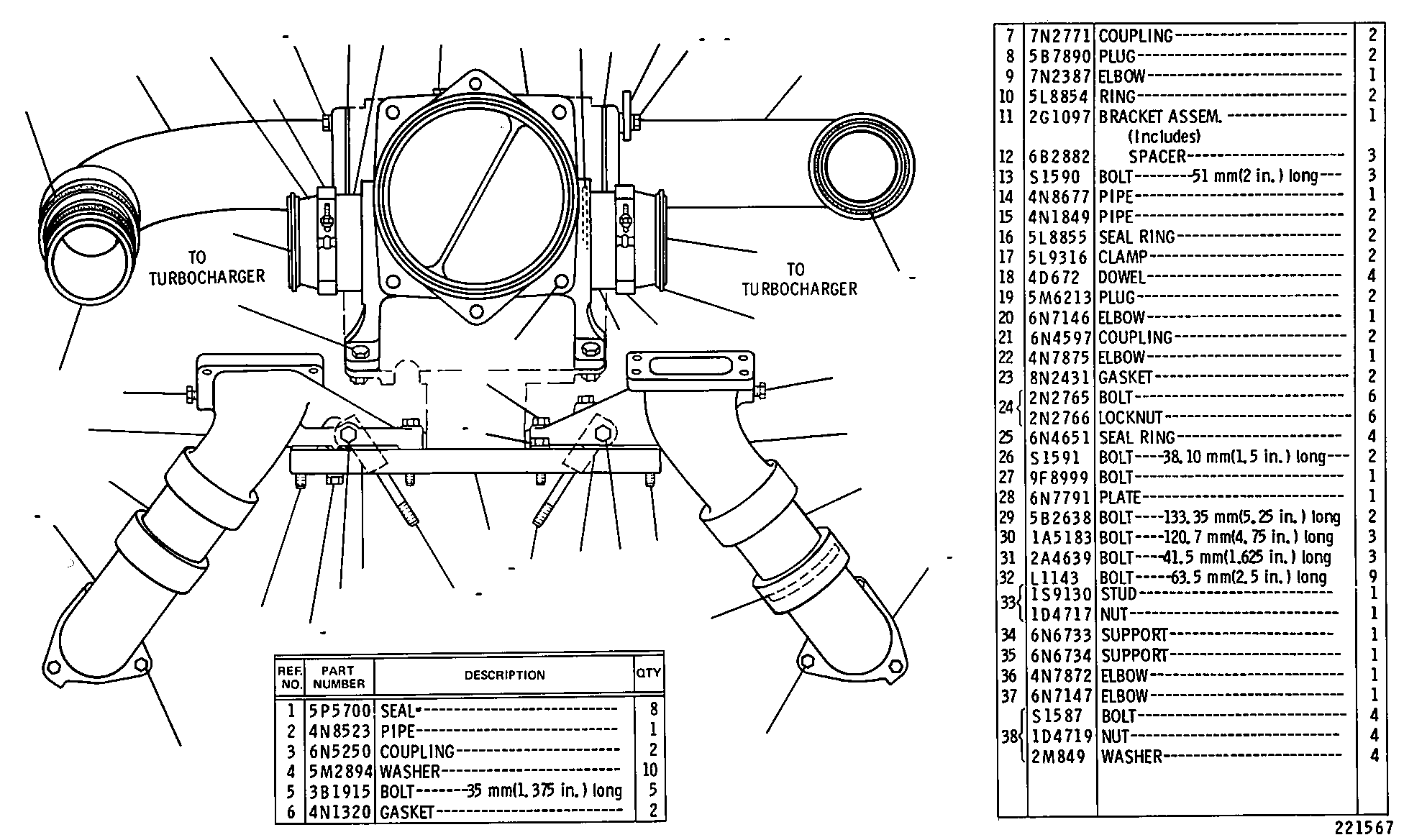

4N8538 AIR LINES GROUPENGINE SERIAL NO. 73W1 TO 73W2036 INCLUSIVE
Group No: 4N8538
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5P5700 | 1 SEAL | 8 | |
| 4N8523 | 2 PIPE | 1 | |
| 6N5250 | 3 COUPLING | 2 | |
| 5M2894 | 4 WASHER | 10 | |
| 3B1915 | 5 BOLT 35 mm(1.375 in.) long | 5 | |
| 4N1320 | 6 GASKET | 2 | |
| 7N2771 | 7 COUPLING | 2 | |
| 5B7890 | 8 PLUG | 2 | |
| 7N2387 | 9 ELBOW | 1 | |
| 5L8854 | 10 RING | 2 | |
| 2G1097 | 11 BRACKET ASSEM. | 1 | |
| 6B2882 | 12 SPACER | 3 | |
| 0S1590 | 13 BOLT 51 mm(2 in.) long | 3 | |
| 4N8677 | 14 PIPE | 1 | |
| 4N1849 | 15 PIPE | 2 | |
| 5L8855 | 16 SEAL RING | 2 | |
| 5L9316 | 17 CLAMP | 2 | |
| 4D0672 | 18 DOWEL | 4 | |
| 5M6213 | 19 PLUG | 2 | |
| 6N7146 | 20 ELBOW | 1 | |
| 6N4597 | 21 COUPLING | 2 | |
| 4N7875 | 22 ELBOW | 1 | |
| 8N2431 | 23 GASKET | 2 | |
| 2N2765 | 24 BOLT | 6 | |
| 2N2766 | LOCKNUT | 6 | |
| 6N4651 | 25 SEAL RING | 4 | |
| 0S1591 | 26 BOLT 38.10 mm(1.5 in.) long | 2 | |
| 9F8999 | 27 BOLT | 1 | |
| 6N7791 | 28 PLATE | 1 | |
| 5B2638 | 29 BOLT 133.35 mm(5.25 in.) long | 2 | |
| 1A5183 | 30 BOLT 120.7 mm(4.75 in.) long | 3 | |
| 2A4639 | 31 BOLT 41.5 mm(1.625 in.) long | 3 | |
| 0L1143 | 32 BOLT 63.5 mm(2.5 in.) long | 9 | |
| 1S9130 | 33 STUD | 1 | |
| 1D4717 | NUT | 1 | |
| 6N6733 | 34 SUPPORT | 1 | |
| 6N6734 | 35 SUPPORT | 1 | |
| 4N7872 | 36 ELBOW | 1 | |
| 6N7147 | 37 ELBOW | 1 | |
| 0S1587 | 38 BOLT | 4 | |
| 1D4719 | NUT | 4 | |
| 2M0849 | WASHER | 4 |
