System And Components

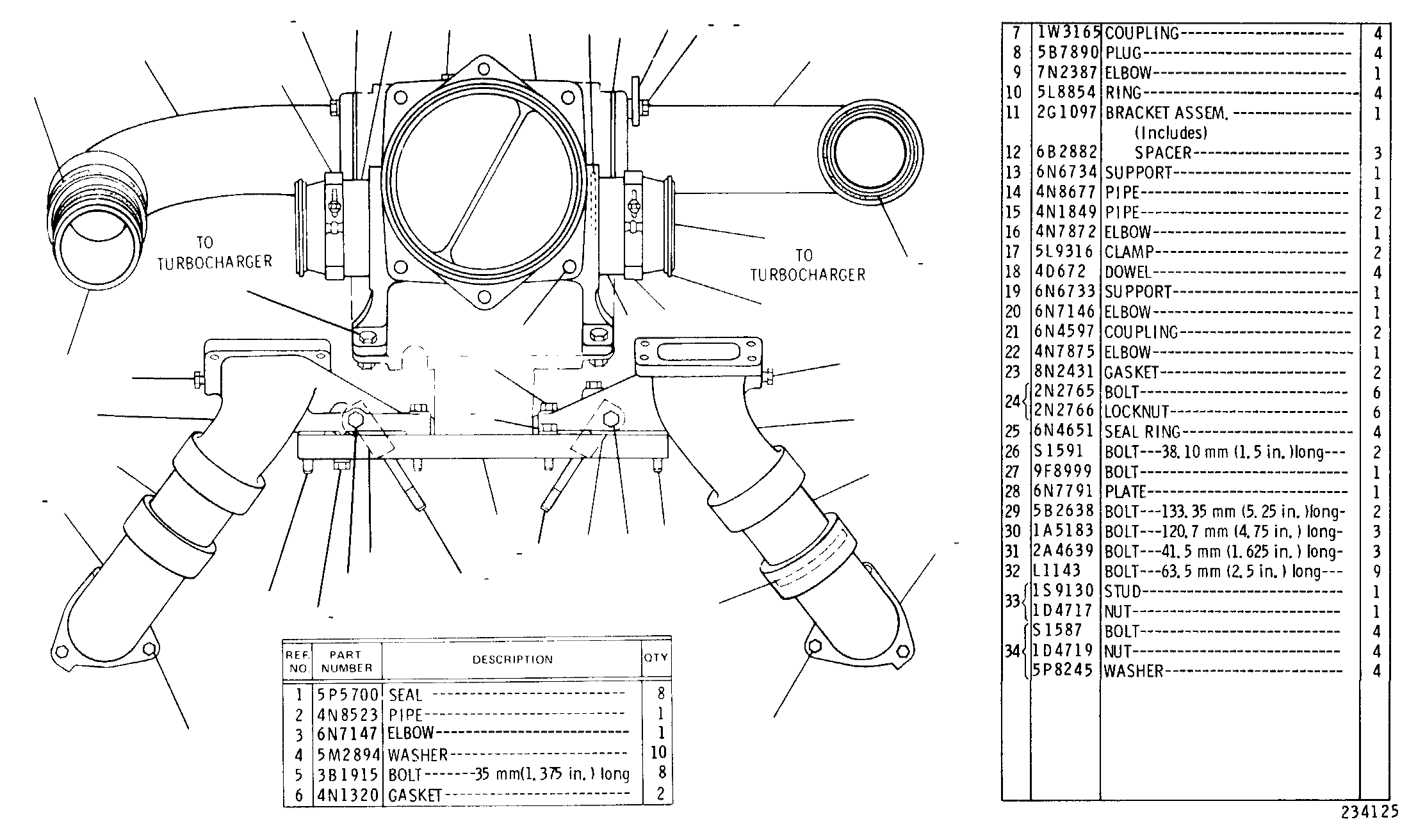

8N8622 AIR LINES GROUPENGINE SERIAL NO. 73W2037 TO 73W3590 INCLUSIVE
Group No: 8N8622
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5P5700 | 1 SEAL | 8 | |
| 4N8523 | 2 PIPE | 1 | |
| 6N7147 | 3 ELBOW | 1 | |
| 5M2894 | 4 WASHER | 10 | |
| 3B1915 | 5 BOLT 35 mm(1.375 in.) long | 8 | |
| 4N1320 | 6 GASKET | 2 | |
| 1W3165 | 7 COUPLING | 4 | |
| 5B7890 | 8 PLUG | 4 | |
| 7N2387 | 9 ELBOW | 1 | |
| 5L8854 | 10 RING | 4 | |
| 2G1097 | 11 BRACKET ASSEM. | 1 | |
| 6B2882 | 12 SPACER | 3 | |
| 6N6734 | 13 SUPPORT | 1 | |
| 4N8677 | 14 PIPE | 1 | |
| 4N1849 | 15 PIPE | 2 | |
| 4N7872 | 16 ELBOW | 1 | |
| 5L9316 | 17 CLAMP | 2 | |
| 4D0672 | 18 DOWEL | 4 | |
| 6N6733 | 19 SUPPORT | 1 | |
| 6N7146 | 20 ELBOW | 1 | |
| 6N4597 | 21 COUPLING | 2 | |
| 4N7875 | 22 ELBOW | 1 | |
| 8N2431 | 23 GASKET | 2 | |
| 2N2765 | 24 BOLT | 6 | |
| 2N2766 | LOCKNUT | 6 | |
| 6N4651 | 25 SEAL RING | 4 | |
| 0S1591 | 26 BOLT 38.10 mm(1.5 in.)long | 2 | |
| 9F8999 | 27 BOLT | 1 | |
| 6N7791 | 28 PLATE | 1 | |
| 5B2638 | 29 BOLT 133.35 mm (5.25 in.)long | 2 | |
| 1A5183 | 30 BOLT 120.7 mm (4.75 in.) long | 3 | |
| 2A4639 | 31 BOLT 41.5 mm (1.625 in.) long | 3 | |
| 0L1143 | 32 BOLT 63.5 mm (2.5 in.) long | 9 | |
| 1S9130 | 33 STUD | 1 | |
| 1D4717 | NUT | 1 | |
| 0S1587 | 34 BOLT | 4 | |
| 1D4719 | NUT | 4 | |
| 5P8245 | WASHER | 4 |
