System And Components

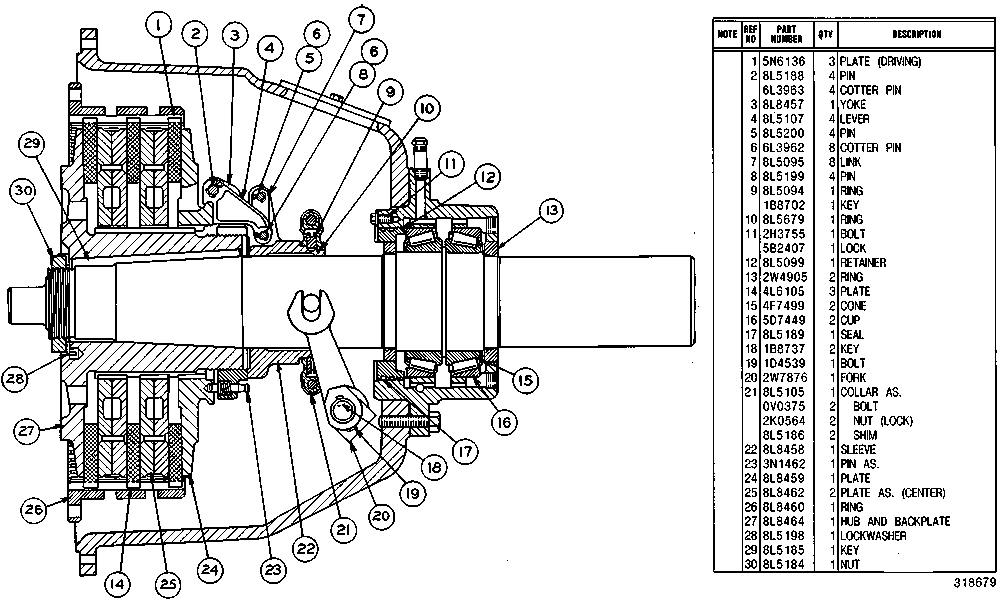

2W4914 CLUTCH GROUP-PART 1PART OF 2W4915 REAR CLUTCH POWER TAKE-OFF GROUP SHOWN ON PAGE 425A
Group No: 2W4914
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5N6136 | 1 PLATE-DRIVING (DRIVING) | 3 | |
| 8L5188 | 2 PIN | 4 | |
| 6L3963 | COTTER | 4 | |
| 8L8457 | 3 YOKE-ADJUSTING | 1 | |
| 8L5107 | 4 LEVER | 4 | |
| 8L5200 | 5 PIN | 4 | |
| 6L3962 | 6 COTTER | 8 | |
| 8L5095 | 7 LINK-LEVER | 8 | |
| 8L5199 | 8 PIN | 4 | |
| 8L5094 | 9 RING-COLLAR | 1 | |
| 1B8702 | KEY-WOODRUFF | 1 | |
| 8L5679 | 10 RING-RETAINING | 1 | |
| 2H3755 | 11 BOLT | 1 | |
| 5B2407 | LOCK | 1 | |
| 8L5099 | 12 RETAINER-BEARING | 1 | |
| 2W4905 | 13 RING-SEAL | 2 | |
| 4L6105 | 14 PLATE-DRIVING | 3 | |
| 4F7499 | 15 CONE-ROLLER BEARING | 2 | |
| 5D7449 | 16 CUP-ROLLER BEARING | 2 | |
| 8L5189 | 17 SEAL-O-RING | 1 | |
| 1B8737 | 18 KEY-WOODRUFF | 2 | |
| 1D4539 | 19 BOLT | 1 | |
| 2W7876 | 20 FORK-THROW-OUT | 1 | |
| 8L5105 | 21 COLLAR AS-SLEEVE | 1 | |
| 0V0375 | BOLT | 2 | |
| 2K0564 | LOCKNUT (LOCK) | 2 | |
| 8L5186 | SHIM | 2 | |
| 8L8458 | 22 SLEEVE-SLIDING | 1 | |
| 3N1462 | 23 PIN AS | 1 | |
| 8L8459 | 24 PLATE-PRESSURE | 1 | |
| 8L8462 | 25 PLATE AS-CENTER (CENTER) | 2 | |
| 8L8460 | 26 RING-DRIVING | 1 | |
| 8L8464 | 27 HUB & BACKPLATE | 1 | |
| 8L5198 | 28 LOCKWASHER | 1 | |
| 8L5185 | 29 KEY | 1 | |
| 8L5184 | 30 NUT-SHAFT | 1 |
