System And Components

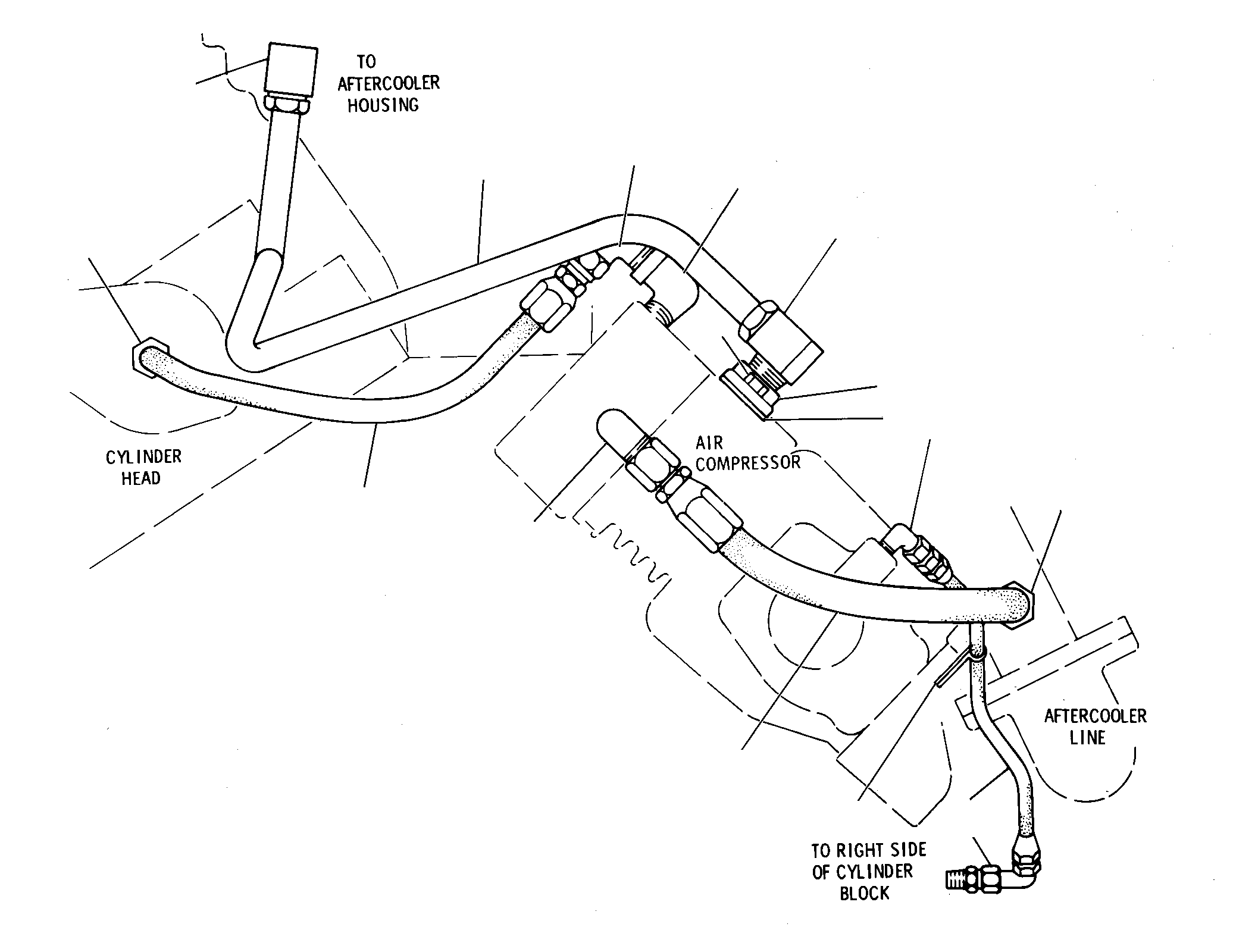

7N8230 AIR COMPRESSOR LINES GROUP-AFTERCOOLEDPART OF 7N8411 AIR COMPRESSOR ARRANGEMENT LISTED ON PAGE 441
Group No: 7N8230
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5K9240 | 1 ELBOW-FLARED | 2 | |
| 7N7794 | 2 TUBE AS-SUPPLY | 1 | |
| 7L7262 | 3 ELBOW-FLARED | 1 | |
| 0032143 | 4 ELBOW | 1 | |
| 0S1617 | 5 BOLT | 2 | |
| 9M0397 | 6 ADAPTER-INLET | 1 | |
| 8M7065 | 7 GASKET-AIR INLET | 1 | |
| 2N1287 | 8 ELBOW-FLARED | 1 | |
| 8M0755 | 9 CONNECTOR | 1 | |
| 8L6557 | 10 CONNECTOR | 1 | |
| 9N6418 | 11 HOSE AS | 1 | |
| 0S0550 | 12 CLIP | 1 | |
| 9L5126 | 13 HOSE AS-END | 1 | |
| 2N3378 | 14 ELBOW | 1 | |
| 9N6419 | 15 HOSE AS-WATER | 1 | |
| 3R5387 | 16 CONNECTOR | 1 |
