System And Components

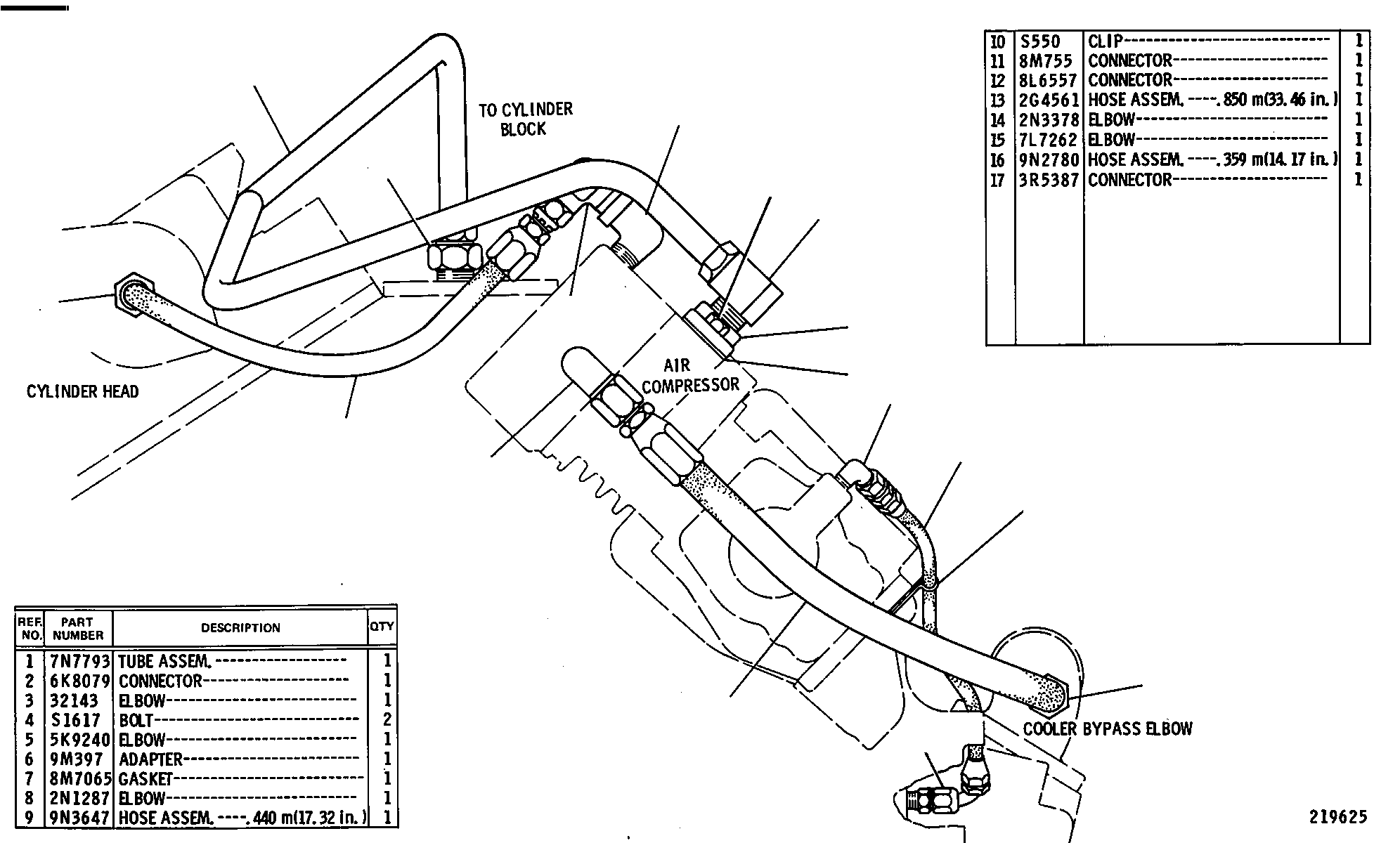

7N8409 AIR COMPRESSOR LINES GROUP-NON-AFTERCOOLEDPART OF 7N8410 AIR COMPRESSOR ARRANGEMENT LISTED ON PAGE 441
Group No: 7N8409
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7N7793 | 1 TUBE ASSEM. | 1 | |
| 6K8079 | 2 CONNECTOR | 1 | |
| 0032143 | 3 ELBOW | 1 | |
| 0S1617 | 4 BOLT | 2 | |
| 5K9240 | 5 ELBOW | 1 | |
| 9M0397 | 6 ADAPTER | 1 | |
| 8M7065 | 7 GASKET | 1 | |
| 2N1287 | 8 ELBOW | 1 | |
| 9N3647 | 9 HOSE ASSEM. .440 m(17.32 in.) | 1 | |
| 0S0550 | 10 CLIP | 1 | |
| 8M0755 | 11 CONNECTOR | 1 | |
| 8L6557 | 12 CONNECTOR | 1 | |
| 2G4561 | 13 HOSE ASSEM. .850 m(33.46 in.) | 1 | |
| 2N3378 | 14 ELBOW | 1 | |
| 7L7262 | 15 ELBOW | 1 | |
| 9N2780 | 16 HOSE ASSEM. .359 m(14.17 in.) | 1 | |
| 3R5387 | 17 CONNECTOR | 1 |
