System And Components

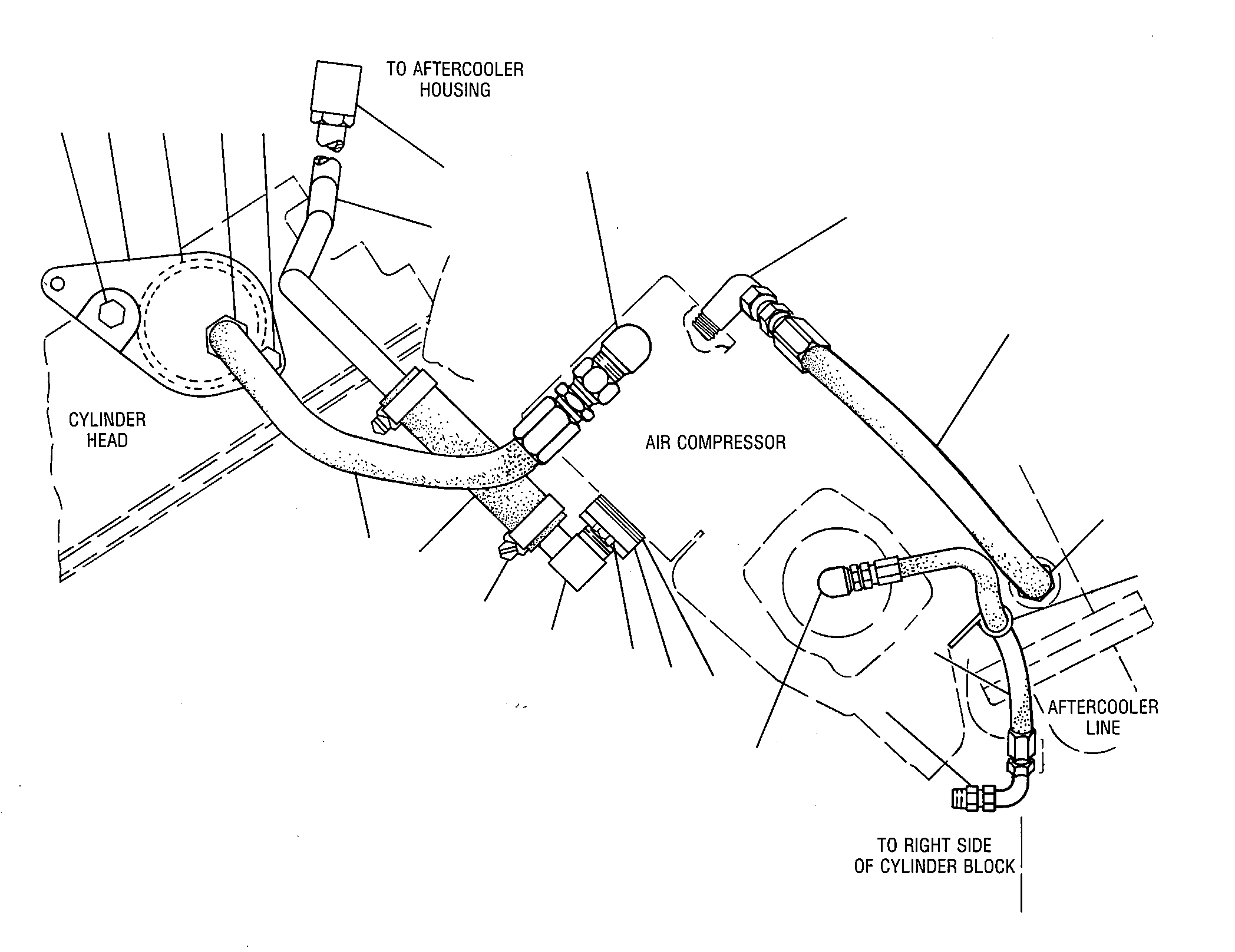

9N5243 AIR COMPRESSOR LINES GROUPSERIAL NO. 67U6192-UP. PART OF 2W2624 AIR COMPRESSOR ARRANGEMENT
Group No: 9N5243
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0S0509 | 1 BOLT | 1 | |
| 9L6659 | 2 FLANGE | 1 | |
| 9M7539 | 3 SEAL | 1 | |
| 3R5387 | 4 CONNECTOR | 1 | |
| 0S1594 | 5 BOLT | 1 | |
| 9N5594 | 6 TUBE AS | 1 | |
| 5K9240 | 7 ELBOW-FLARED | 1 | |
| 7L7262 | 8 ELBOW-FLARED | 1 | |
| 9L5126 | 9 HOSE AS-END 43CM(16.92IN) | 1 | |
| 8M0755 | 10 CONNECTOR | 1 | |
| 2N1287 | 11 ELBOW-FLARED | 1 | |
| 8M7065 | 12 GASKET-AIR INLET | 1 | |
| 9M0397 | 13 ADAPTER-INLET | 1 | |
| 0S1617 | 14 BOLT | 2 | |
| 0323631 | 15 ELBOW | 1 | |
| 5D1026 | 16 CLAMP-HOSE | 2 | |
| 9N2581 | 17 HOSE | 1 | |
| 9N5244 | 18 HOSE AS 46CM(18.11IN) | 1 | |
| 2N3378 | 19 ELBOW | 1 | |
| 9N5245 | 20 HOSE AS 51.5CM(20.27IN) | 1 | |
| 8L6557 | 21 CONNECTOR | 1 | |
| 0S0550 | 22 CLIP | 1 |
