System And Components

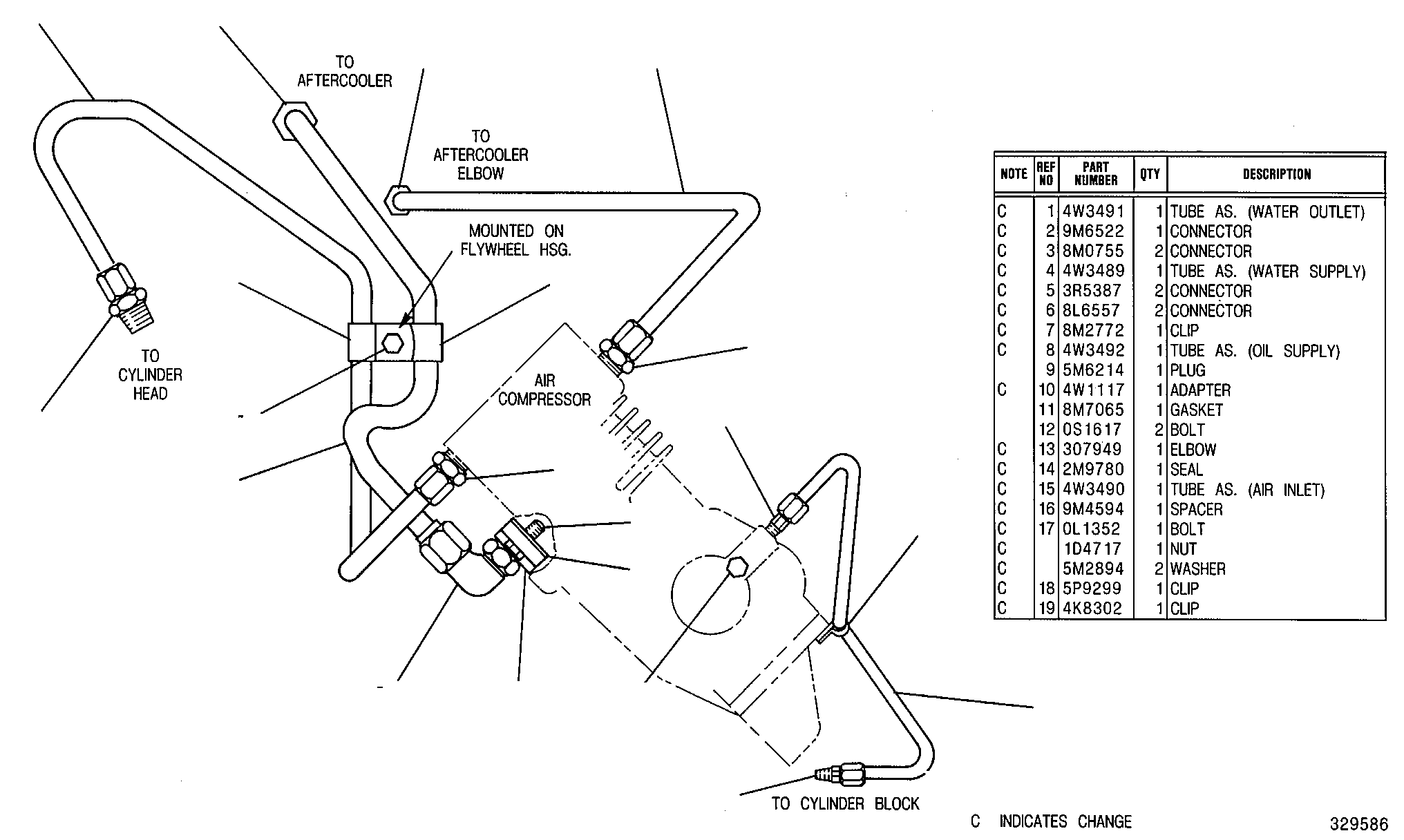

4N8335 AIR COMPRESSOR LINES GROUPENGINE SERIAL NO. 48W17214-UP
Group No: 4N8335
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4W3491 | 1 TUBE AS-OUTLET (WATER OUTLET) | 1 | |
| 9M6522 | 2 CONNECTOR-FLARED | 1 | |
| 8M0755 | 3 CONNECTOR | 2 | |
| 4W3489 | 4 TUBE AS-SUPPLY (WATER SUPPLY) | 1 | |
| 3R5387 | 5 CONNECTOR | 2 | |
| 8L6557 | 6 CONNECTOR | 2 | |
| 8M2772 | 7 CLIP | 1 | |
| 4W3492 | 8 TUBE AS-SUPPLY (OIL SUPPLY) | 1 | |
| 5M6214 | 9 PLUG-PIPE | 1 | |
| 4W1117 | 10 ADAPTER-INLET | 1 | |
| 8M7065 | 11 GASKET-AIR INLET | 1 | |
| 0S1617 | 12 BOLT | 2 | |
| 0307949 | 13 ELBOW | 1 | |
| 2M9780 | 14 SEAL-O-RING | 1 | |
| 4W3490 | 15 TUBE AS-INLET (AIR INLET) | 1 | |
| 9M4594 | 16 SPACER | 1 | |
| 0L1352 | 17 BOLT | 1 | |
| 1D4717 | NUT | 1 | |
| 5M2894 | WASHER | 2 | |
| 5P9299 | 18 CLIP | 1 | |
| 4K8302 | 19 CLIP | 1 |
