System And Components

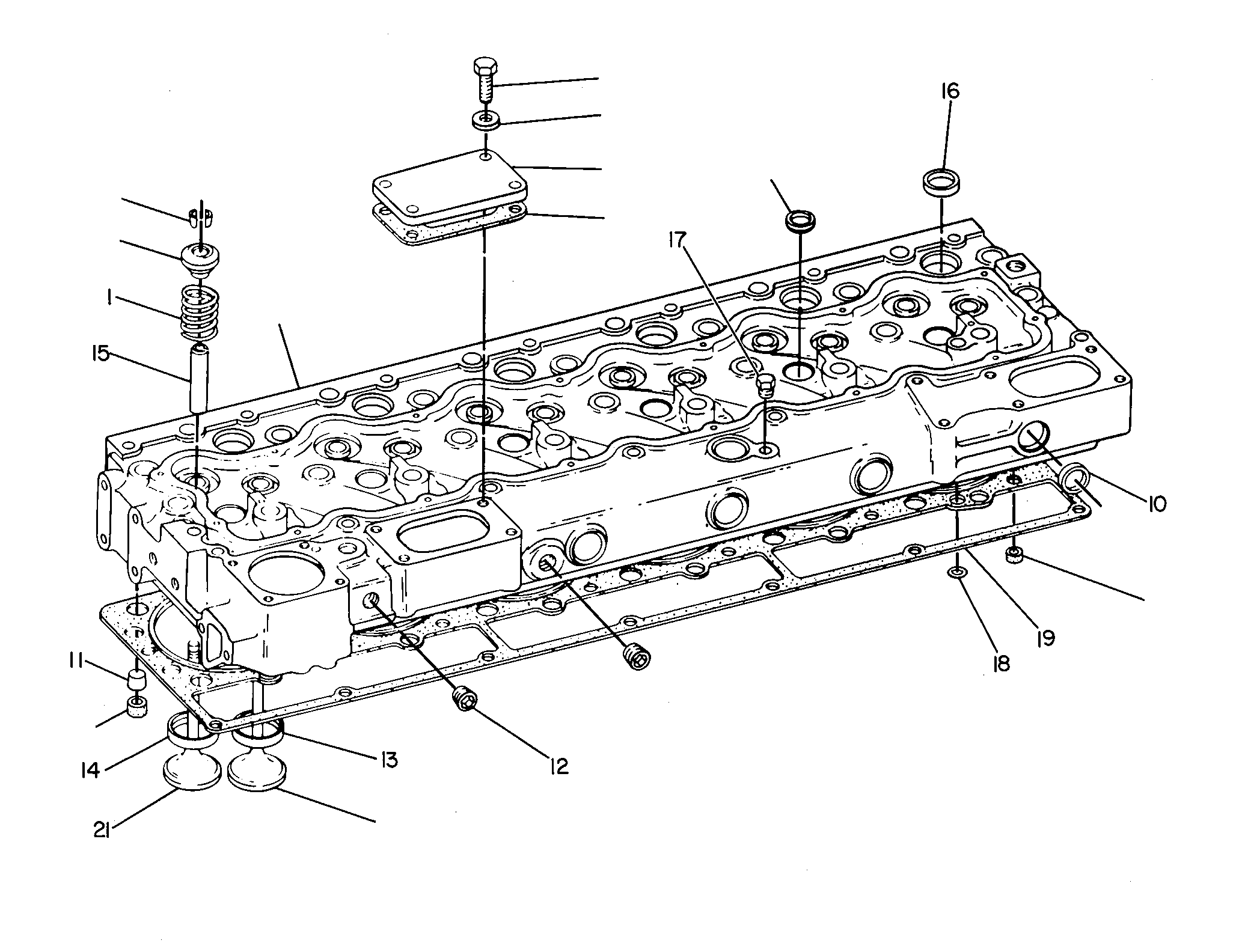

7N-8876 CYLINDER HEAD GPS/N 08Z3945-33155
Group No: 7N-8876
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7S7144 | 1 SPRING-VALVE | 12 | |
| 1W5300 | 2 ROTOCOIL AS | 12 | |
| 8N7782 | ROTOCOIL AS | 1 | |
| 6N7174 | SHIELD-OIL | 1 | |
| 2A4429 | 3 LOCK-RETAINER | 24 | |
| 8N6796 | 4 CYLINDER HEAD GP | 1 | |
| 0S1594 | 5 BOLT (3/8-16X1-IN) | 4 | |
| 5M2894 | 6 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 1P6367 | 7 COVER | 1 | |
| 5S6735 | 8 GASKET | 1 | |
| 3B0623 | 9 PLUG-CUP (25.73-MM OD) | 6 | |
| 3S8313 | 10 PLUG-CUP | 7 | |
| 1S3062 | 11 DIRECTOR-WATER | 18 | |
| 2B0858 | 12 PLUG-PIPE | 3 | |
| 7N4448 | 13 INSERT (INTAKE)(INTAKE) | 6 | |
| 8N0435 | 14 INSERT (EXHAUST) | 6 | |
| 2P1262 | 15 GUIDE-VALVE | 12 | |
| 3P1896 | 16 PLUG-CUP (35.31-MM OD) | 12 | |
| 7H3171 | 17 PLUG-PIPE | 1 | |
| 3S5496 | 18 SEAL-O-RING | 1 | |
| 7N7999 | 19 GASKET-CYLINDER HEAD | 1 | |
| 6N9915 | 20 VALVE-INLET | 6 | |
| 6N9916 | 21 VALVE-EXHAUST | 6 | |
| 4W8087 | 22 SEAL | 18 | |
| 7N8018 | 23 SEAL | 6 |
