System And Components

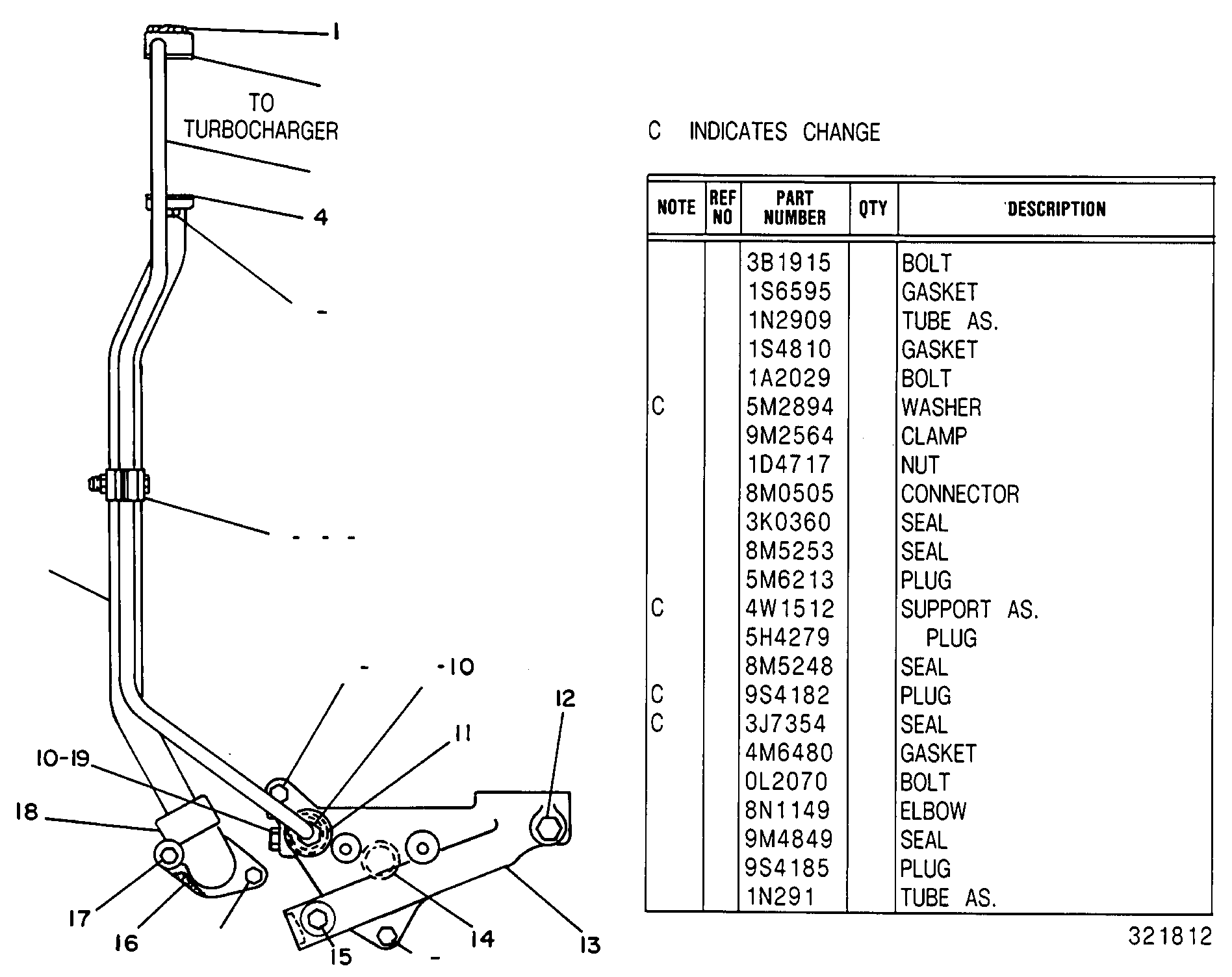

8N-2235 LINES GP-TURBOCHARGER OILS/N 08Z3945-21659
Group No: 8N-2235
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B1915 | 1 BOLT (3/8-16X1.375-IN) | 2 | |
| 1S6595 | 2 GASKET-OIL SUPPLY | 1 | |
| 1N2909 | 3 TUBE AS-OIL | 1 | |
| 1S4810 | 4 GASKET-OIL DRAIN | 1 | |
| 1A2029 | 5 BOLT (3/8-16X1.125-IN) | 6 | |
| 5M2894 | 6 WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 9M2564 | 7 CLAMP-TUBE | 2 | |
| 1D4717 | 8 NUT (3/8-16-THD) | 1 | |
| 8M0505 | 9 ADAPTER | 1 | |
| 3K0360 | 10 SEAL-O-RING | 2 | |
| 8M5253 | 11 SEAL-O-RING | 1 | |
| 5M6213 | 12 PLUG-PIPE (1/4-18-THD) | 1 | |
| 4W1512 | 13 SUPPORT AS-PUMP | 1 | |
| 5H4279 | PLUG-CUP | 1 | |
| 8M5248 | 14 SEAL-O-RING | 2 | |
| 9S4182 | 15 PLUG (7/16-20-THD) | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4M6480 | 16 GASKET | 1 | |
| 0L2070 | 17 BOLT (3/8-16X2.25-IN) | 1 | |
| 8N1149 | 18 ELBOW | 1 | |
| 9M4849 | SEAL-O-RING | 1 | |
| 9S4185 | 19 PLUG (3/4-16-THD) | 1 | |
| 1N2911 | 20 TUBE AS-OIL DRAIN | 1 |
