System And Components

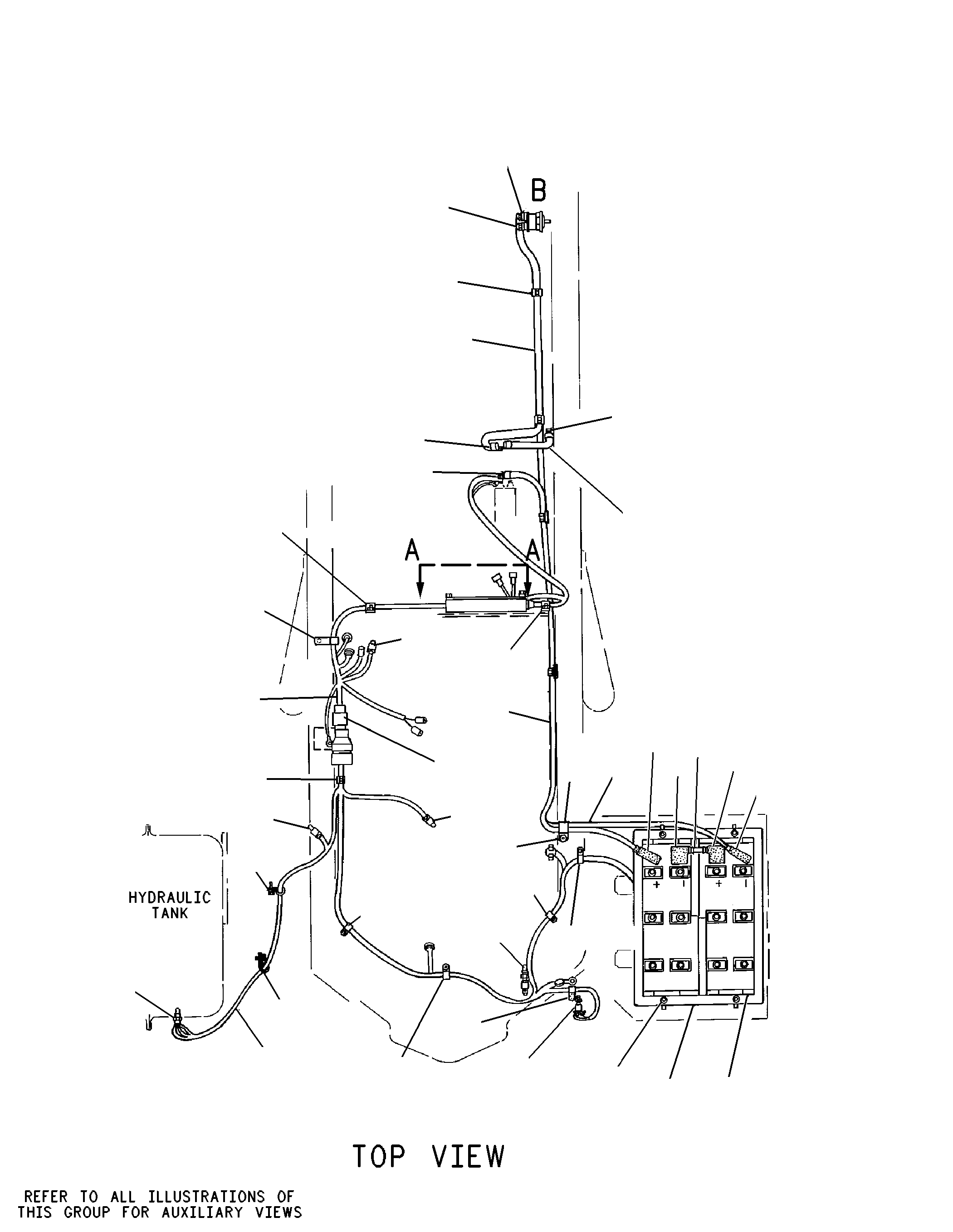

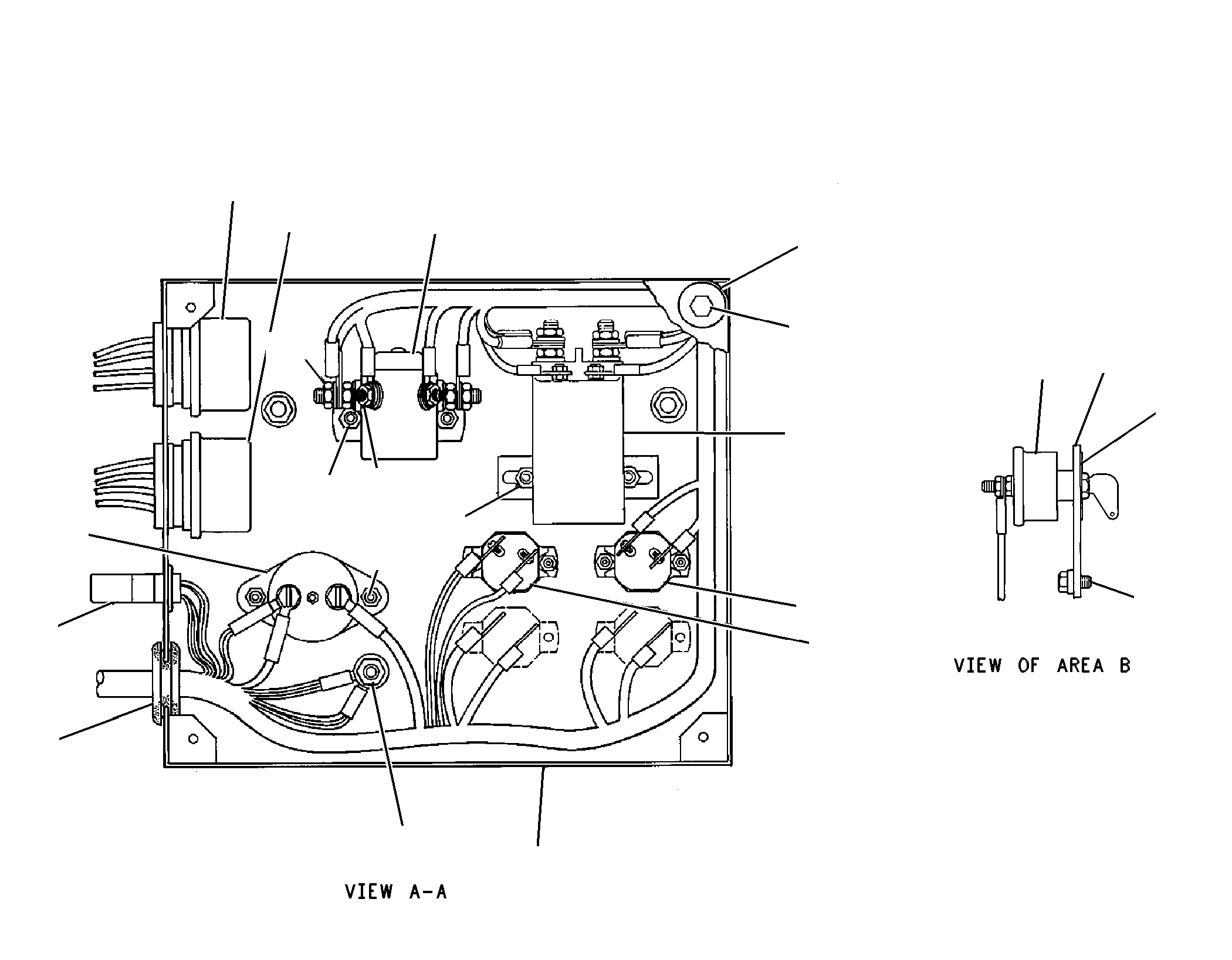

2V-7814 BATTERY & WIRING GPS/N 17Z550-748
Group No: 2V-7814
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8V0622 | 1 CABLE AS-BATTERY | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(14 CM) | ||
| 9G0004 | 2 COVER AS-TERMINAL (RED) | 1 | |
| 5M9204 | TERMINAL AS (POSITIVE) | 1 | |
| 5M9205 | 3 TERMINAL AS (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 9G0003 | 4 COVER AS-TERMINAL (BLACK) | 1 | |
| 9G4232 | 5 BATTERY (12-VOLT) | 2 | |
| 7N0060 | VENT AS (20.64MM ID) | 6 | |
| 4K8473 | 6 FRAME AS | 1 | |
| 8V0614 | 7 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(320CM) | ||
| 7N5274 | 8 COVER AS-TERMINAL (BLACK) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE)(00 GA) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1S7252 | 9 TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 5K8451 | 10 CLIP (LOOP) | 5 | |
| 1D4717 | 11 NUT (3/8-16-THD) | 17 | |
| 5M2894 | 12 WASHER-HARD (10.2X18.5X2.5-MM THK) | 13 | |
| 8V0615 | 13 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(188 CM) | ||
| 8N1725 | 14 COVER AS-TERMINAL (RED) | 1 | |
| 3D2098 | TERMINAL AS (POS) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1S7251 | 15 TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 7P6682 | 16 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(40CM) | ||
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 1D4719 | 17 NUT-FULL (1/2-13-THD) | 1 | |
| 5P8245 | 18 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 7S2430 | 19 BOLT | 4 | |
| 5V7079 | 20 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(122 CM) | ||
| 1S7252 | 21 TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 1S7251 | 22 TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 5P7854 | 23 CLIP (LOOP) | 3 | |
| 5N2840 | 24 CLIP | 1 | |
| 8V2689 | 25 HARNESS AS-POWER | 1 | |
| 3T3048 | 26 CLIP AS | 1 | |
| 3T3047 | 27 CLIP AS | 1 | |
| 4S1962 | 28 CLIP (LOOP) | 1 | |
| 3T3045 | 29 CLIP AS | 2 | |
| 7V6086 | 30 HARNESS AS | 1 | |
| 8N2248 | 31 SWITCH AS-TEMPERATURE | 1 | |
| 3K0360 | 32 SEAL-O-RING | 1 | |
| 6D4246 | 33 CLIP (LOOP) | 1 | |
| 9M8406 | 34 CLIP (LOOP) | 1 | |
| 4D7794 | 35 CLIP | 4 | |
| 2M9346 | 36 SWITCH AS-PRESSURE | 1 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 3B6552 | 37 ELBOW-PIPE | 1 | |
| 5H8936 | ADAPTER | 1 | |
| 7N3718 | 38 CLIP | 1 | |
| 9G8009 | 39 SWITCH AS-PRESSURE (BRAKE AIR) | 2 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER (4.3MM ID) | 2 | |
| 3V3308 | 40 WASHER-HARD (10.2X20.5X2.5-MM THK) | 4 | |
| 2N1931 | 41 ELBOW-PIPE | 1 | |
| 7M3361 | 42 GROMMET | 1 | |
| 2V9473 | 43 DIODE AS | 1 | |
| 2V2380 | 44 CIRCUIT BREAKER AS (60-AMPERE) | 1 | |
| 6V8365 | SCREW-MACHINE (1/4-28X0.5-IN) | 2 | |
| 1H3244 | LOCKWASHER (.025IN THK) | 4 | |
| 3T0689 | 45 RELAY AS | 1 | |
| 9G1946 | 46 KEEPER | 2 | |
| 9G1928 | 47 RELAY AS | 1 | |
| 0S0509 | 48 BOLT (3/8-16X0.75-IN) | 2 | |
| 7V2912 | 49 COVER | 1 | |
| 0310215 | 50 BOLT-LOCKING (1/4-20X0.625-IN) | 4 | |
| 8M2337 | WASHER (7.2X24.5X3-MM THK) | 4 | |
| 3T0376 | 51 SWITCH AS-MAGNETIC | 1 | |
| 4F2294 | NUT-JAM (5/16-24-THD) | 2 | |
| 6V8186 | NUT-FULL (5/16-24-THD) | 2 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 3R8920 | 52 CIRCUIT BREAKER AS (8-AMPERE) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER (4.3MM ID) | 2 | |
| 7N1621 | 53 CIRCUIT BREAKER AS (3-AMPERE) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER (4.3MM ID) | 2 | |
| 7V2913 | 54 BOX AS | 1 | |
| 1D4717 | 55 NUT (3/8-16-THD) | 3 | |
| 3V3308 | 56 WASHER-HARD (10.2X20.5X2.5-MM THK) | 4 | |
| 2S9556 | 57 SCREW-MACHINE (10-32X0.875-IN) | 2 | |
| 4B2049 | NUT (10-32-THD) | 2 | |
| 4B4274 | WASHER (5.5X13X1.2-MM THK) | 2 | |
| 5M6668 | 58 SCREW-MACHINE (8-32X0.75-IN) | 4 | |
| 4B4863 | WASHER (4.7X11X1.2-MM THK) | 4 | |
| 0S1614 | 59 BOLT (1/4-20X0.5-IN) | 4 | |
| 1B4330 | 60 NUT (1/4-20-THD) | 4 | |
| 5P0537 | WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 7N0718 | 61 SWITCH GP-DISCONNECT | 1 | |
| 5V3637 | 62 PLATE | 1 | |
| 8H8648 | 63 PLATE-INSTRUCTION (DISCONNECT SWITCH) | 1 | |
| 9F3099 | 64 SWITCH GP-MAGNETIC (24-VOLT)(MAGNETIC) | 1 | |
| 4B2043 | 65 NUT (8-32-THD) | 2 | |
| 4F2294 | 66 NUT-JAM (5/16-24-THD) | 2 |
