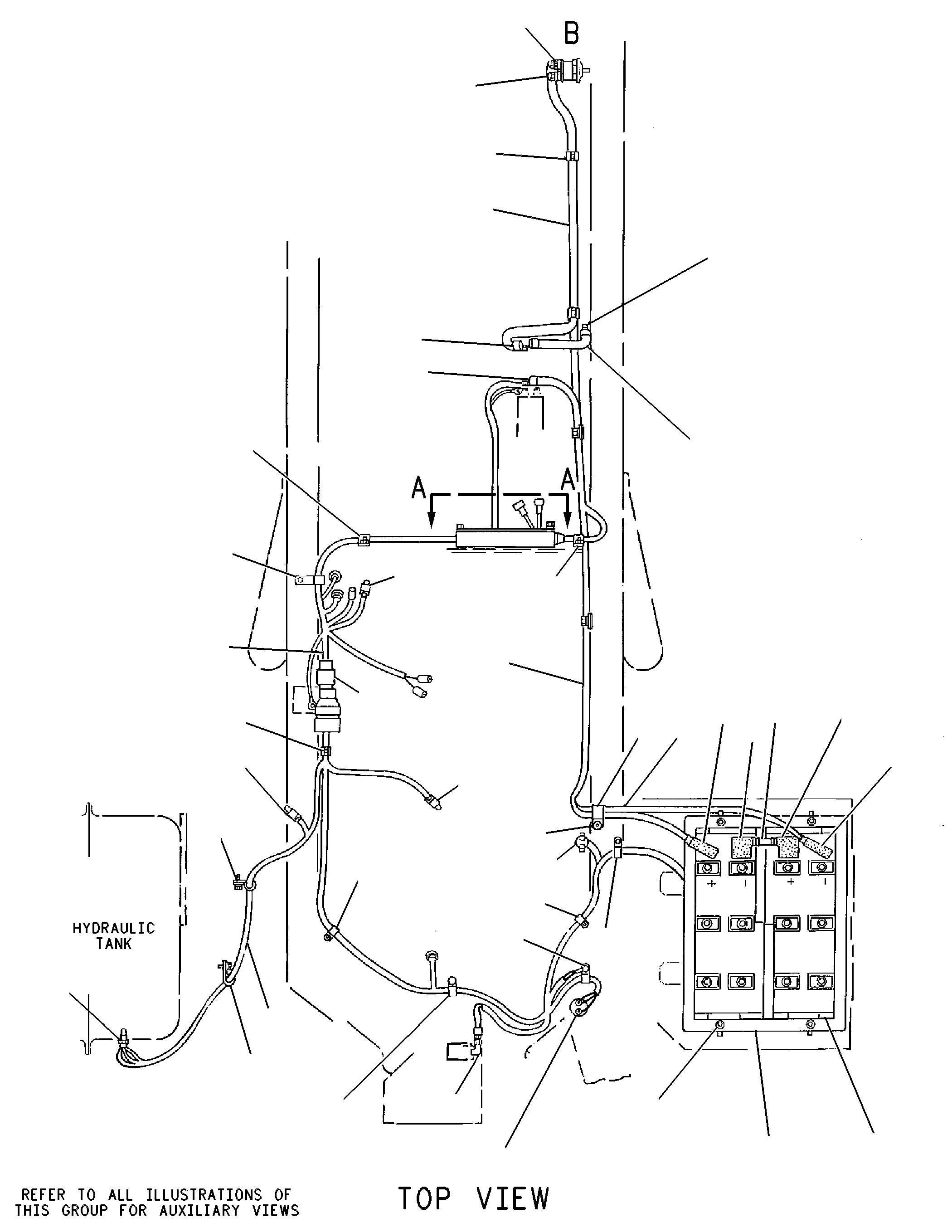

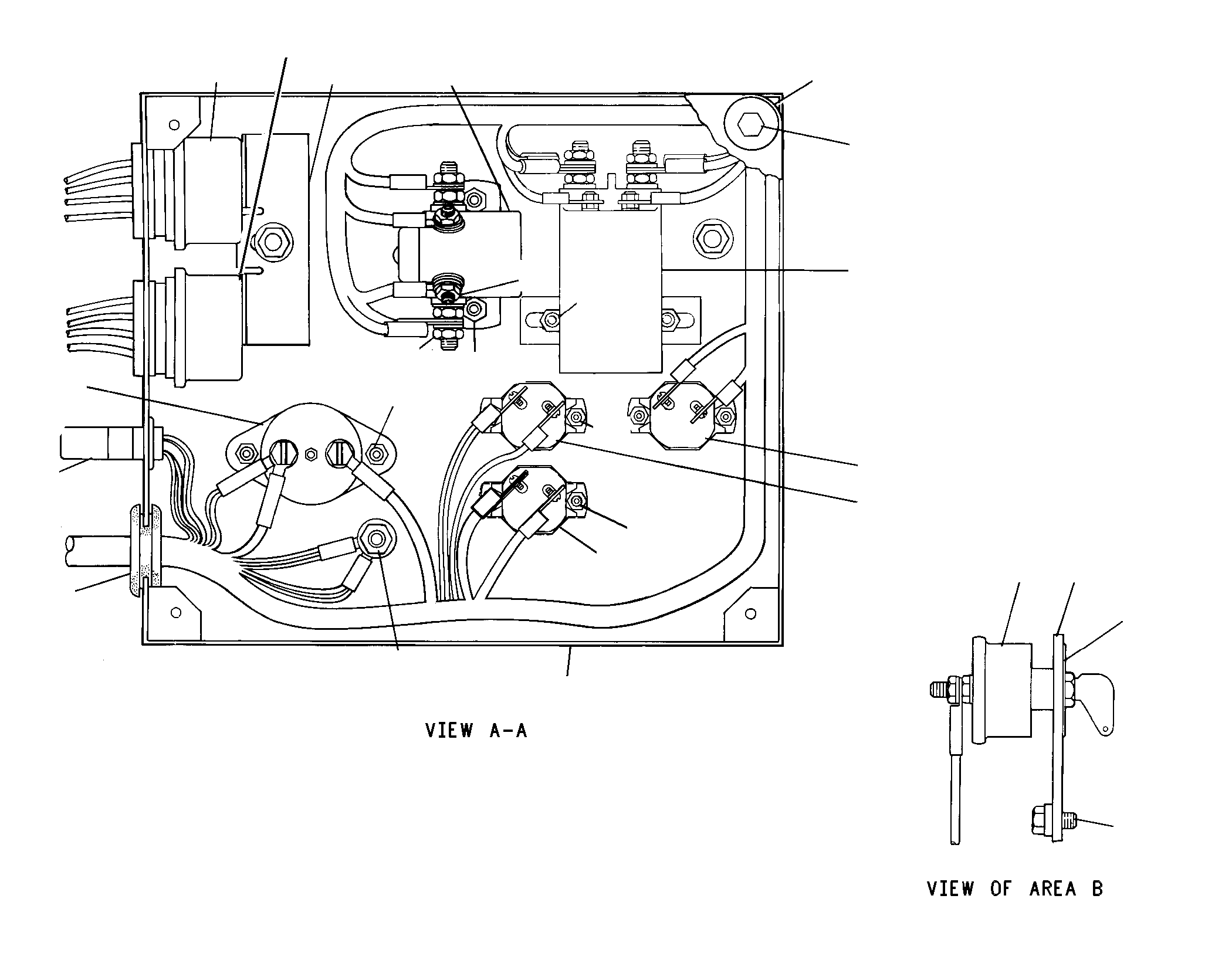

2V-7814 BATTERY & WIRING GPS/N 17Z749-1631

Group No: 2V-7814
Part NumberPart NameQty
8V06221 CABLE AS-BATTERY1
5P0761CABLE (00-GA, RED)(14CM)
9G00042 COVER AS-TERMINAL (RED)1
8T9757TERMINAL AS-BATTERY (NEGATIVE)1
8C59173 TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
9G00034 COVER AS-TERMINAL (BLACK)1
9G42325 BATTERY (12-VOLT)2
7N0060VENT AS (20.64MM ID)6
4K84736 FRAME AS1
8V06147 CABLE AS1
5P0747CABLE (00-GA, BLACK)(320CM)
7N52748 COVER AS-TERMINAL (BLACK)1
3S6050TERMINAL AS-BATTERY (NEGATIVE)(00 GA)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1S72529 TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
5K845110 CLIP (LOOP)5
6V880111 NUT (3/8-16-THD)16
3V330812 WASHER-HARD (10.2X20.5X2.5-MM THK)4
8V061513 CABLE AS1
5P0761CABLE (00-GA, RED)(188CM)
8N172514 COVER AS-TERMINAL (RED)1
3S6049TERMINAL AS-BATTERY (POSITIVE)(00 GA)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1S725115 TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
8N0869COVER-TERMINAL (RED)1
7P668216 CABLE AS1
5P0747CABLE (00-GA, BLACK)(40CM)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
6V818817 NUT (1/2-13-THD)1
8T4223WASHER-HARD (13.5X25.5X3-MM THK)1
7S243018 BOLT4
8T489619 WASHER-HARD (10.2X18.5X2.5-MM THK)14
5V707920 CABLE AS1
5P0747CABLE (00-GA, BLACK)(122CM)
1S725221 TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
1S725122 TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
5P785423 CLIP (LOOP)1
3B776424 BUSHING (REDUCING)2
1S099425 CLIP (LOOP)2
5N284026 CLIP1
8V268927 HARNESS AS-POWER1
3T304828 CLIP AS1
3T304729 CLIP AS1
4S196230 CLIP (LOOP)1
3T304531 CLIP AS2
7V608632 HARNESS AS1
8N224833 SWITCH AS-TEMPERATURE1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER (4.3MM ID)2
3K036034 SEAL-O-RING1
6D424635 CLIP (LOOP)1
9M840636 CLIP (LOOP)1
4D779437 CLIP4
2M934638 SWITCH AS-PRESSURE (STOP LIGHT)1
6V8378NUT (10-32-THD)2
8F1434LOCKWASHER2
3B655239 ELBOW-PIPE1
5H8936ADAPTER1
9G800940 SWITCH AS-PRESSURE (BRAKE AIR)2
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER (4.3MM ID)2
7N371841 CLIP1
5M306242 BOLT (3/8-16X0.75-IN)2
7M336143 GROMMET1
2V947344 DIODE AS1
2V238045 CIRCUIT BREAKER AS (60-AMPERE)1
6V8365SCREW-MACHINE (1/4-28X0.5-IN)(1/4-28 THD)2
1H3244LOCKWASHER (.025IN THK)4
3T068946 RELAY AS1
9G194647 KEEPER2
9G192848 RELAY AS1
5M306249 BOLT (3/8-16X0.75-IN)2
7V291250 COVER1
031021551 BOLT-LOCKING (1/4-20X0.625-IN)4
8M2337WASHER (7.2X24.5X3-MM THK)4
3T037652 SWITCH AS-MAGNETIC1
4F2294NUT-JAM (5/16-24-THD)(LARGE)2
6V8378NUT (10-32-THD)2
3R892053 CIRCUIT BREAKER AS (8-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER (4.3MM ID)2
7N162154 CIRCUIT BREAKER AS (3-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER (4.3MM ID)2
7V291355 BOX AS1
6V880156 NUT (3/8-16-THD)3
8T489657 WASHER-HARD (10.2X18.5X2.5-MM THK)5
2S955658 SCREW-MACHINE (10-32X0.875-IN)2
4B2049NUT (10-32-THD)2
4B4274WASHER (5.5X13X1.2-MM THK)2
5M666859 SCREW-MACHINE (8-32X0.75-IN)6
4B4863WASHER (4.7X11X1.2-MM THK)6
5S734960 BOLT (1/4-20X0.5-IN)4
6V818561 NUT (1/4-20-THD)4
8T4205WASHER-HARD (7.2X14.5X2-MM THK)4
7N071862 SWITCH GP-DISCONNECT1
5V363763 PLATE1
8H864864 PLATE-INSTRUCTION (DISCONNECT SWITCH)1
9F309965 SWITCH GP-MAGNETIC (24-VOLT)(MAGNETIC)1
4B204366 NUT (8-32-THD)2
4F229467 NUT-JAM (5/16-24-THD)2
9C795068 STRIP1
8D726569 CIRCUIT BREAKER AS (40-AMPERE)1
