System And Components

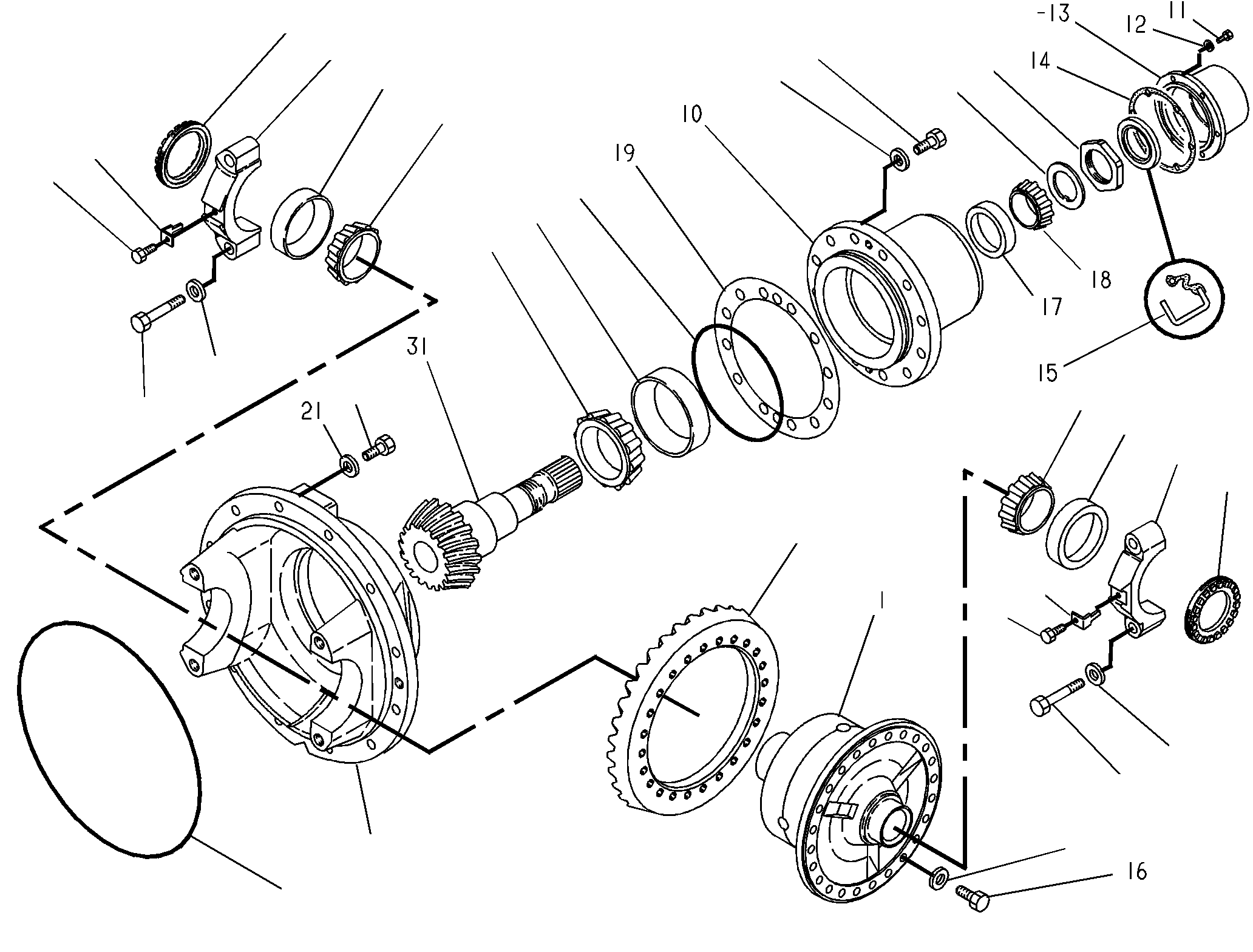

9C-4560 DIFFERENTIAL & BEVEL GEAR GP -FRONTS/N 17Z941-1333
Group No: 9C-4560
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9C4562 | 1 DIFFERENTIAL GP | 1 | |
| 0300060 | 2 CUP-BEARING (TAPERED ROLLER) | 1 | |
| 0300061 | 3 CONE-BEARING (TAPERED ROLLER) | 1 | |
| 5M7329 | 4 SEAL-O-RING | 1 | |
| 6W1635 | 5 CARRIER AS-DIFFERENTIAL | 1 | |
| 2H3856 | 6 BOLT (7/8-9X3.75-IN) | 4 | |
| 5P8249 | 7 WASHER-HARD (24X41.5X4-MM THK) | 4 | |
| 1A1135 | 8 BOLT (5/8-11X2-IN) | 12 | |
| 5P8247 | 9 WASHER-HARD (17X32X3.5-MM THK) | 36 | |
| 8V7884 | 10 HOUSING-SUPPORT | 1 | |
| 0343557 | 11 BOLT-LOCKING (3/8-16X1.125-IN) | 6 | |
| 5M2894 | 12 WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 8V6007 | 13 RETAINER | 1 | |
| 2K5109 | 14 GASKET | 1 | |
| 5K2595 | 15 SEAL-LIP TYPE | 1 | |
| 8T1901 | 16 BOLT (5/8-18-THD) | 24 | |
| 2D9454 | 17 CUP-BEARING | 1 | |
| 2D9455 | 18 CONE-BEARING | 1 | |
| 4V5395 | 19 SHIM PACK (INCLUDES 20-SHIMS) | 1 | |
| 1A0458 | 20 BOLT (3/4-10X1.75-IN) | 12 | |
| 5P8248 | 21 WASHER-HARD (20X36.5X3.5-MM THK) | 12 | |
| 1P3934 | 22 CUP-BEARING | 1 | |
| 1P3935 | 23 CONE-BEARING | 1 | |
| 8V8034 | 24 GEAR-BEVEL (46-TEETH) | 1 | |
| 6W1638 | 25 WASHER (71X95X5-MM THK) | 1 | |
| 5K9107 | 26 BOLT-LOCKING (3/8-16X0.75-IN) | 2 | |
| 6V6652 | 27 SEALANT | ||
| 8V9720 | 28 NUT-ADJUSTMENT | 1 | |
| 3J0634 | 29 SEAL-O-RING | 1 | |
| 9V6563 | 30 LOCKNUT (2.75X18-THD) | 1 | |
| 8V8035 | 31 SHAFT-PINION | 1 | |
| 1J2860 | 32 CUP-BEARING (TAPERED ROLLER) | 1 | |
| 1J4757 | 33 CONE-BEARING (TAPERED ROLLER) | 1 | |
| 8D2628 | 34 NUT (5-13/16-12-THD) | 1 | |
| 2K0537 | 35 LOCK-BEARING | 2 |
