System And Components
2V-7804 CONTROL GP-SERVICE BRAKES/N 17Z1-93; 17Z95-190
Group No: 2V-7804
| Part Number | Part Name | Qty | |
|---|---|---|---|

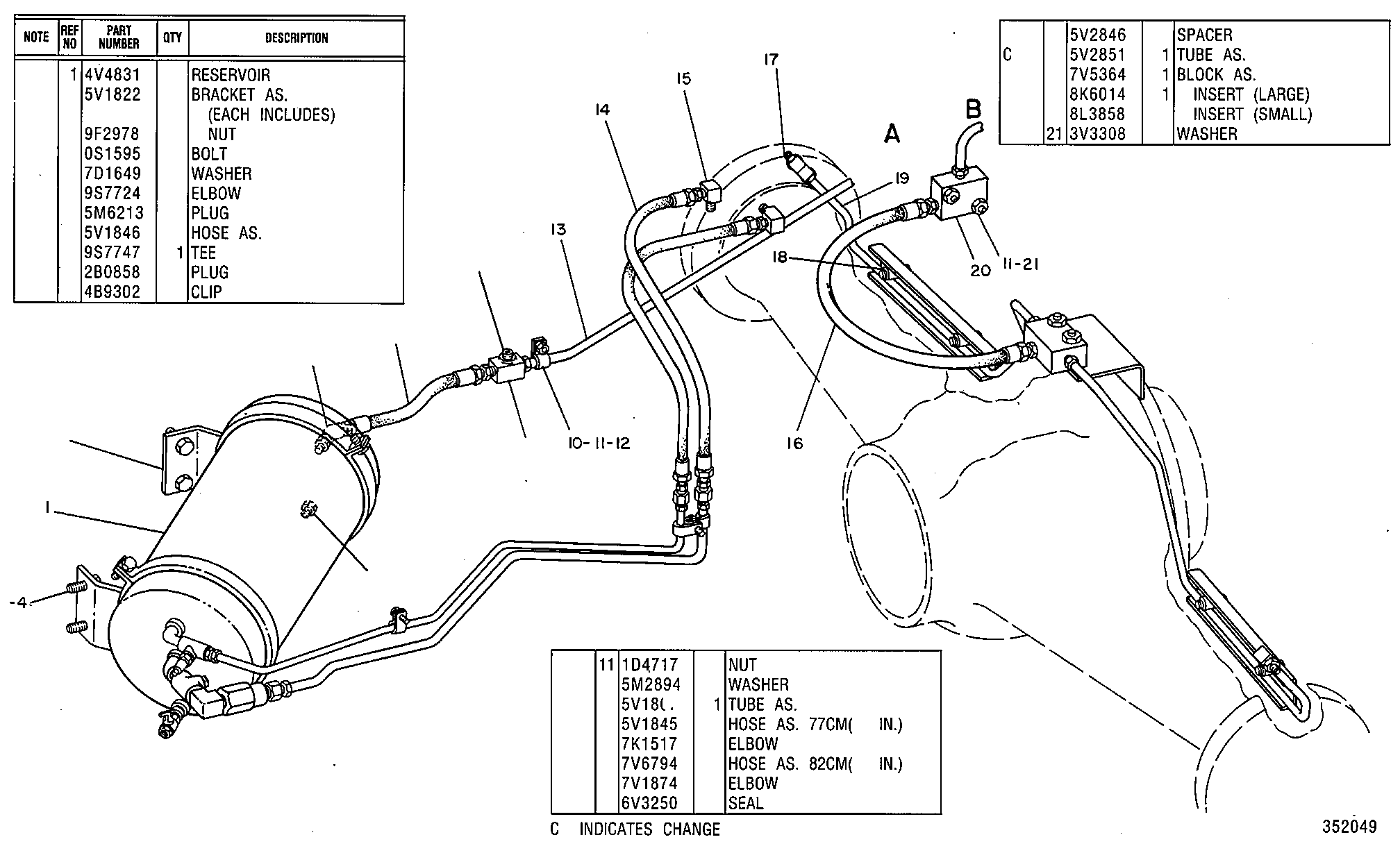

| 4V4831 | 1 RESERVOIR | 1 | |
| 5V1822 | 2 BRACKET AS | 2 | |
| 9F2978 | 3 NUT-WELD (3/8-16-THD) | 2 | |
| 0S1595 | 4 BOLT (1/2-13X1.25-IN) | 4 | |
| 7D1649 | WASHER-HARD (13.5X32X5-MM THK) | 4 | |
| 9S7724 | 5 ELBOW-FLARED | 1 | |
| 5M6213 | 6 PLUG-PIPE (1/4-18-THD) | 1 | |
| 5V1846 | 7 HOSE AS | 1 | |
| 9S7747 | 8 TEE-FLARED | 1 | |
| 2B0858 | 9 PLUG-PIPE | 1 | |
| 4B9302 | 10 CLIP (LOOP) | 1 | |
| 1D4717 | 11 NUT (3/8-16-THD) | 3 | |
| 5M2894 | 12 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 5V1807 | 13 TUBE AS | 1 | |
| 5V1845 | 14 HOSE AS (77CM) | 1 | |
| 7K1517 | 15 ELBOW | 1 | |
| 7V6794 | 16 HOSE AS (82CM) | 1 | |
| 7V1874 | 17 ELBOW | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 5V2846 | 18 SPACER | 2 | |
| 5V2851 | 19 TUBE AS | 1 | |
| 7V5364 | 20 BLOCK AS | 1 | |
| 8K6014 | INSERT-FLARED (FOR 15.88-MM OD) | 1 | |
| 8L3858 | INSERT-FLARED (FOR 12.70-MM OD) | 1 | |
| 3V3308 | 21 WASHER-HARD (10.2X20.5X2.5-MM THK) | 2 | |

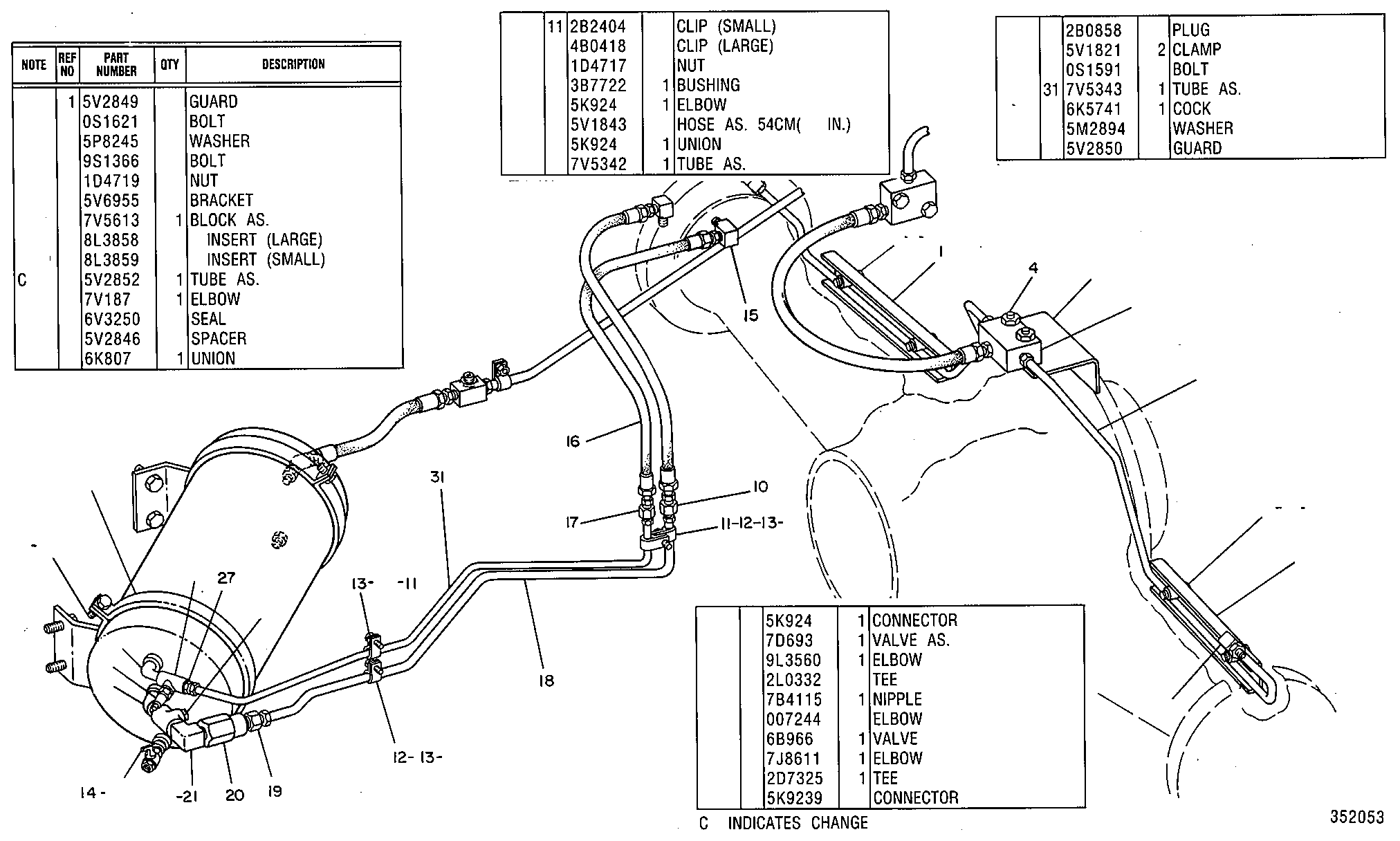

| 5V2849 | 1 GUARD | 1 | |
| 0S1621 | 2 BOLT (1/2-13X1-IN) | 4 | |
| 5P8245 | 3 WASHER-HARD (13.5X25.5X3-MM THK) | 7 | |
| 9S1366 | 4 BOLT (1/2-13X2.5-IN) | 2 | |
| 1D4719 | NUT-FULL (1/2-13-THD) | 2 | |
| 5V6955 | 5 BRACKET | 1 | |
| 7V5613 | 6 BLOCK AS | 1 | |
| 8L3858 | INSERT-FLARED (FOR 12.70-MM OD) | 1 | |
| 8L3859 | INSERT-FLARED (FOR 9.52-MM OD)(SMALL) | 2 | |
| 5V2852 | 7 TUBE AS | 1 | |
| 7V1874 | 8 ELBOW | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 5V2846 | 9 SPACER | 2 | |
| 6K8077 | 10 UNION-FLARED | 1 | |
| 2B2404 | 11 CLIP | 2 | |
| 4B0418 | 12 CLIP (LOOP) | 2 | |
| 1D4717 | 13 NUT (3/8-16-THD) | 3 | |
| 3B7722 | 14 BUSHING-PIPE | 1 | |
| 5K9243 | 15 ELBOW-FLARED | 1 | |
| 5V1843 | 16 HOSE AS (54CM) | 1 | |
| 5K9242 | 17 UNION-FLARED | 1 | |
| 7V5342 | 18 TUBE AS | 1 | |
| 5K9245 | 19 CONNECTOR | 1 | |
| 7D6936 | 20 VALVE AS-CHECK | 1 | |
| 9L3560 | 21 ELBOW | 1 | |
| 2L0332 | 22 TEE-PIPE REDUCING | 1 | |
| 7B4115 | NIPPLE-PIPE | 1 | |
| 0007244 | 23 ELBOW | 1 | |
| 6B9664 | 24 VALVE-AIR RELIEF | 1 | |
| 7J8611 | 25 ELBOW-PIPE | 1 | |
| 2D7325 | 26 TEE-PIPE | 1 | |
| 5K9239 | 27 CONNECTOR | 1 | |
| 2B0858 | 28 PLUG-PIPE | 1 | |
| 5V1821 | 29 CLAMP | 2 | |
| 0S1591 | 30 BOLT (3/8-16X1.5-IN) | 4 | |
| 7V5343 | 31 TUBE AS | 1 | |
| 6K5741 | 32 VALVE-DRAIN | 1 | |
| 5M2894 | 33 WASHER-HARD (10.2X18.5X2.5-MM THK) | 7 | |
| 5V2850 | 34 GUARD | 1 | |

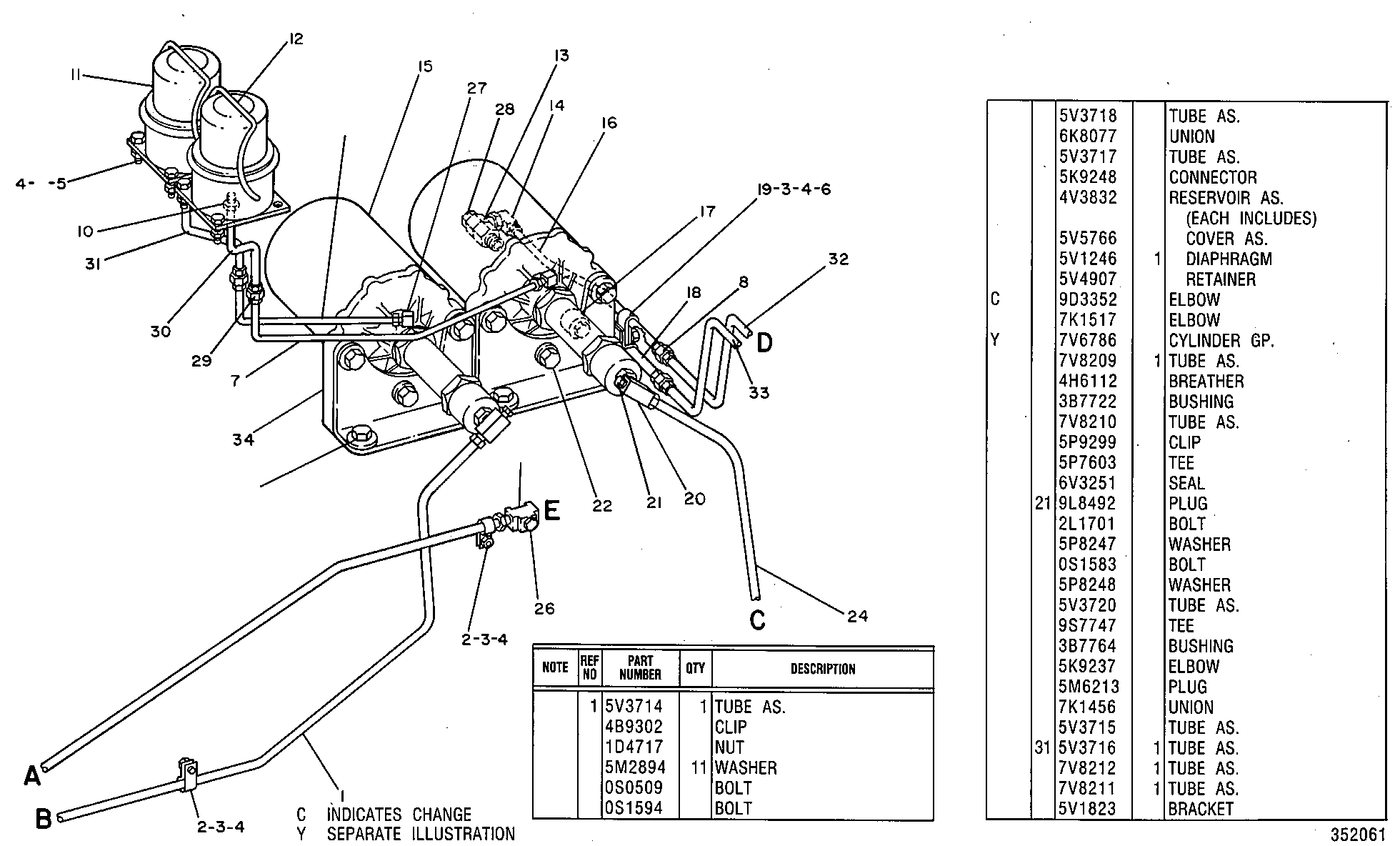

| 5V3714 | 1 TUBE AS | 1 | |
| 4B9302 | 2 CLIP (LOOP) | 2 | |
| 1D4717 | 3 NUT (3/8-16-THD) | 11 | |
| 5M2894 | 4 WASHER-HARD (10.2X18.5X2.5-MM THK) | 11 | |
| 0S0509 | 5 BOLT (3/8-16X0.75-IN) | 8 | |
| 0S1594 | 6 BOLT (3/8-16X1-IN) | 1 | |
| 5V3718 | 7 TUBE AS | 1 | |
| 6K8077 | 8 UNION-FLARED | 2 | |
| 5V3717 | 9 TUBE AS | 1 | |
| 5K9248 | 10 CONNECTOR | 2 | |
| 4V3832 | 11 RESERVOIR AS | 2 | |
| 5V5766 | COVER AS | 1 | |
| 5V1246 | DIAPHRAGM | 1 | |
| 5V4907 | 12 RETAINER | 1 | |
| 9D3352 | 13 ELBOW | 2 | |
| 7K1517 | 14 ELBOW | 2 | |
| 7V6786 | 15 CYLINDER GP-AIR/HYDRAULIC | 2 | |
| 7V8209 | 16 TUBE AS | 1 | |
| 4H6112 | 17 BREATHER | 2 | |
| 3B7722 | BUSHING-PIPE | 2 | |
| 7V8210 | 18 TUBE AS | 1 | |
| 5P9299 | 19 CLIP (LOOP) | 2 | |
| 5P7603 | 20 TEE-FLARED | 2 | |
| 6V3251 | SEAL-O-RING | 2 | |
| 9L8492 | 21 PLUG | 2 | |
| 2L1701 | 22 BOLT (5/8-18X1.5-IN) | 6 | |
| 5P8247 | WASHER-HARD (17X32X3.5-MM THK) | 6 | |
| 0S1583 | 23 BOLT (3/4-10X1.25-IN) | 4 | |
| 5P8248 | WASHER-HARD (20X36.5X3.5-MM THK) | 4 | |
| 5V3720 | 24 TUBE AS | 1 | |
| 9S7747 | 25 TEE-FLARED | 1 | |
| 3B7764 | 26 BUSHING (REDUCING) | 1 | |
| 5K9237 | 27 ELBOW-FLARED | 2 | |
| 5M6213 | 28 PLUG-PIPE (1/4-18-THD) | 2 | |
| 7K1456 | 29 UNION-FLARED | 2 | |
| 5V3715 | 30 TUBE AS | 1 | |
| 5V3716 | 31 TUBE AS | 1 | |
| 7V8212 | 32 TUBE AS | 1 | |
| 7V8211 | 33 TUBE AS | 1 | |
| 5V1823 | 34 BRACKET | 2 | |

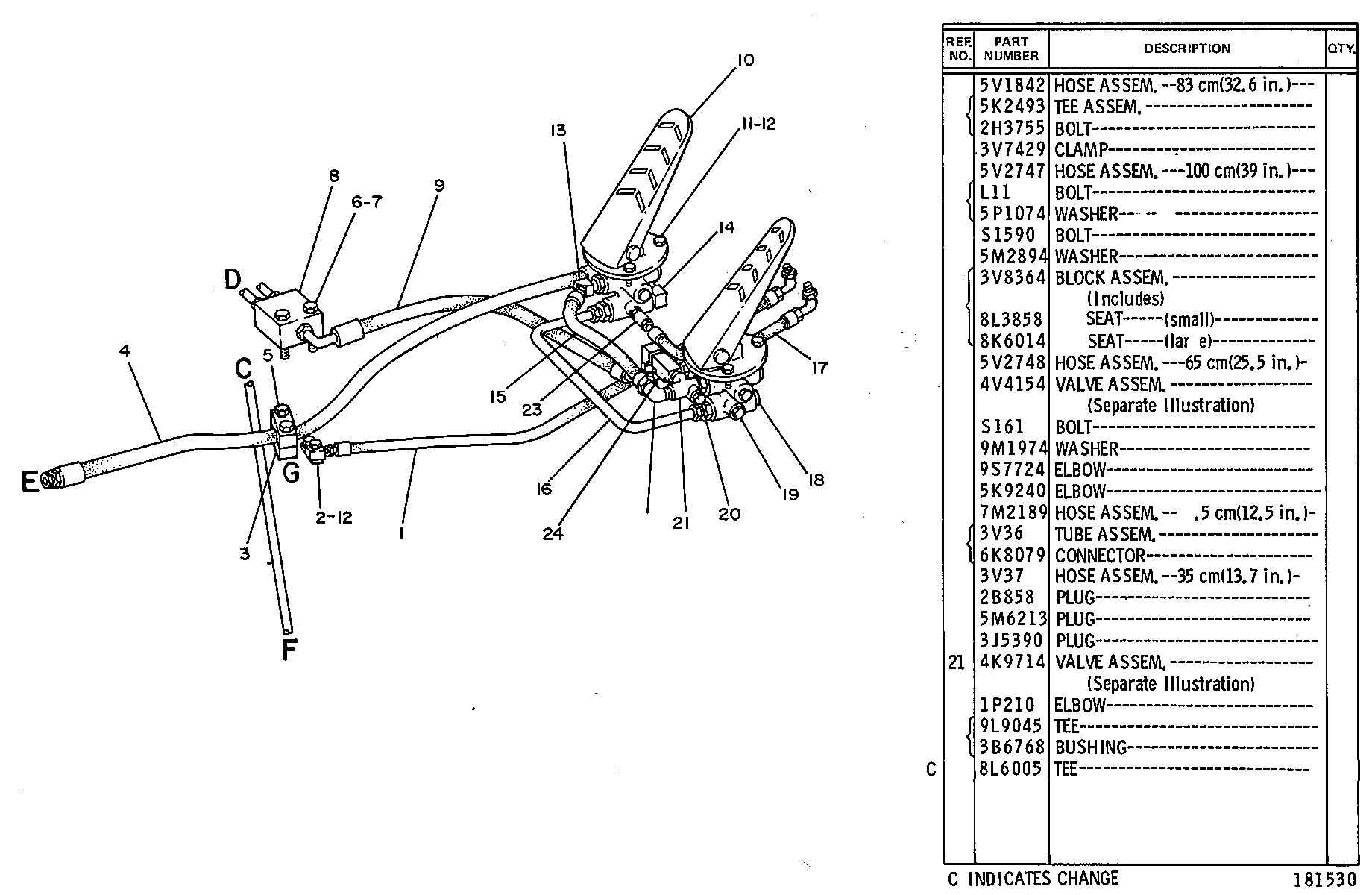

| 5V1842 | 1 HOSE AS (83CM) | 1 | |
| 5K2493 | 2 TEE AS-FRAME | 1 | |
| 2H3755 | BOLT (5/16-18X0.43-IN) | 1 | |
| 3V7429 | 3 CLAMP | 2 | |
| 5V2747 | 4 HOSE AS (100CM) | 1 | |
| 0L1143 | 5 BOLT (3/8-16X2.5-IN) | 2 | |
| 5P1074 | WASHER | 2 | |
| 0S1590 | 6 BOLT (3/8-16X2-IN) | 2 | |
| 5M2894 | 7 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 3V8364 | 8 BLOCK AS | 1 | |
| 8L3858 | INSERT-FLARED (FOR 12.70-MM OD) | 2 | |
| 8K6014 | INSERT-FLARED (FOR 15.88-MM OD) | 1 | |
| 5V2748 | 9 HOSE AS (65CM) | 1 | |
| 4V4154 | 10 VALVE GP-BRAKE CONTROL | 2 | |
| 0S1618 | 11 BOLT (5/16-18X1-IN) | 6 | |
| 9M1974 | 12 WASHER-HARD (8.8X16X2-MM THK) | 7 | |
| 9S7724 | 13 ELBOW-FLARED | 1 | |
| 5K9240 | 14 ELBOW-FLARED | 1 | |
| 7M2189 | 15 HOSE AS (31.5 CM) | 1 | |
| 3V0037 | 16 HOSE AS | 1 | |
| 6K8079 | CONNECTOR | 2 | |
| 3V0037 | 17 HOSE AS (35CM) | 1 | |
| 2B0858 | 18 PLUG-PIPE | 7 | |
| 5M6213 | 19 PLUG-PIPE (1/4-18-THD) | 3 | |
| 3J5390 | 20 PLUG (3/8-18-THD) | 1 | |
| 4K9714 | 21 VALVE GP-CHECK | 1 | |
| 1P0210 | 22 ELBOW-FLARED | 2 | |
| 9L9045 | 23 TEE | 1 | |
| 3B6768 | BUSHING-REDUCER | 1 | |
| 8L6005 | 24 TEE-PIPE | 1 | |

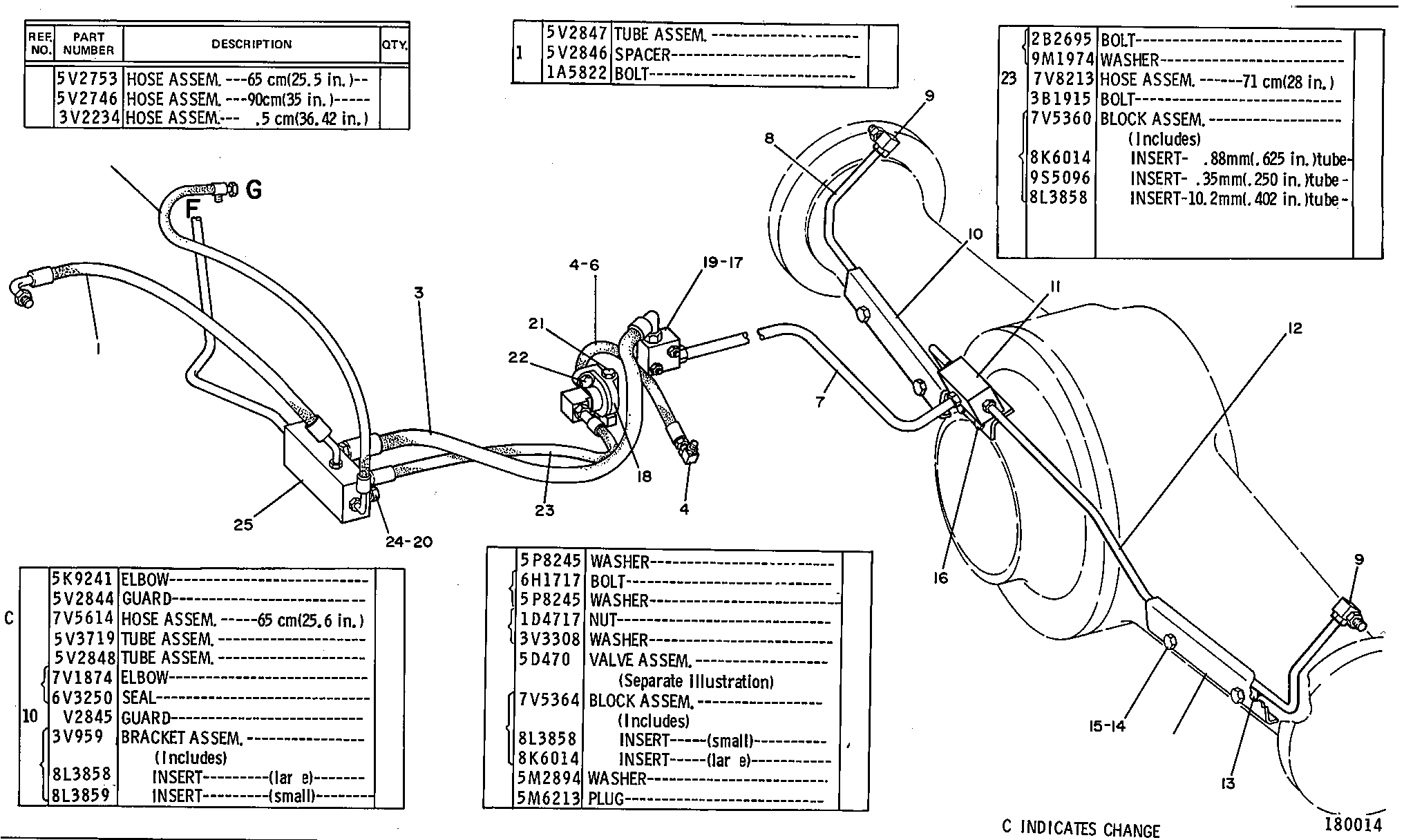

| 5V2753 | 1 HOSE AS (65 CM) | 1 | |
| 5V2746 | 2 HOSE AS (90 CM) | 1 | |
| 3V2234 | 3 HOSE AS (92.5 CM) | 1 | |
| 5K9241 | 4 ELBOW | 2 | |
| 5V2844 | 5 GUARD | 1 | |
| 7V5614 | 6 HOSE AS (65 CM) | 1 | |
| 5V3719 | 7 TUBE AS | 1 | |
| 5V2848 | 8 TUBE AS | 1 | |
| 7V1874 | 9 ELBOW | 2 | |
| 6V3250 | SEAL-O-RING | 2 | |
| 5V2845 | 10 GUARD | 1 | |
| 3V0959 | 11 BRACKET AS | 1 | |
| 8L3858 | INSERT-FLARED (FOR 12.70-MM OD) | 1 | |
| 8L3859 | INSERT-FLARED (FOR 9.52-MM OD) | 2 | |
| 5V2847 | 12 TUBE AS | 1 | |
| 5V2846 | 13 SPACER | 4 | |
| 1A5822 | 14 BOLT (1/2-13X2.75-IN) | 4 | |
| 5P8245 | 15 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 6H1717 | 16 BOLT (1/2-13X1.125-IN) | 2 | |
| 5P8245 | WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 1D4717 | 17 NUT (3/8-16-THD) | 2 | |
| 3V3308 | WASHER-HARD (10.2X20.5X2.5-MM THK) | 2 | |
| 5D0470 | 18 VALVE GP-QUICK-RELEASE | 1 | |
| 7V5364 | 19 BLOCK AS | 1 | |
| 8L3858 | INSERT-FLARED (FOR 12.70-MM OD) | 1 | |
| 8K6014 | INSERT-FLARED (FOR 15.88-MM OD) | 1 | |
| 5M2894 | 20 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 5M6213 | 21 PLUG-PIPE (1/4-18-THD) | 1 | |
| 2B2695 | 22 BOLT (5/16-18X0.875-IN) | 2 | |
| 9M1974 | WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 7V8213 | 23 HOSE AS (71 CM) | 1 | |
| 3B1915 | 24 BOLT (3/8-16X1.375-IN) | 2 | |
| 7V5360 | 25 BLOCK AS | 1 | |
| 8K6014 | INSERT-FLARED (FOR 15.88-MM OD) | 1 | |
| 9S5096 | INSERT-FLARED | 3 | |
| 8L3858 | INSERT-FLARED (FOR 12.70-MM OD) | 1 |
