System And Components

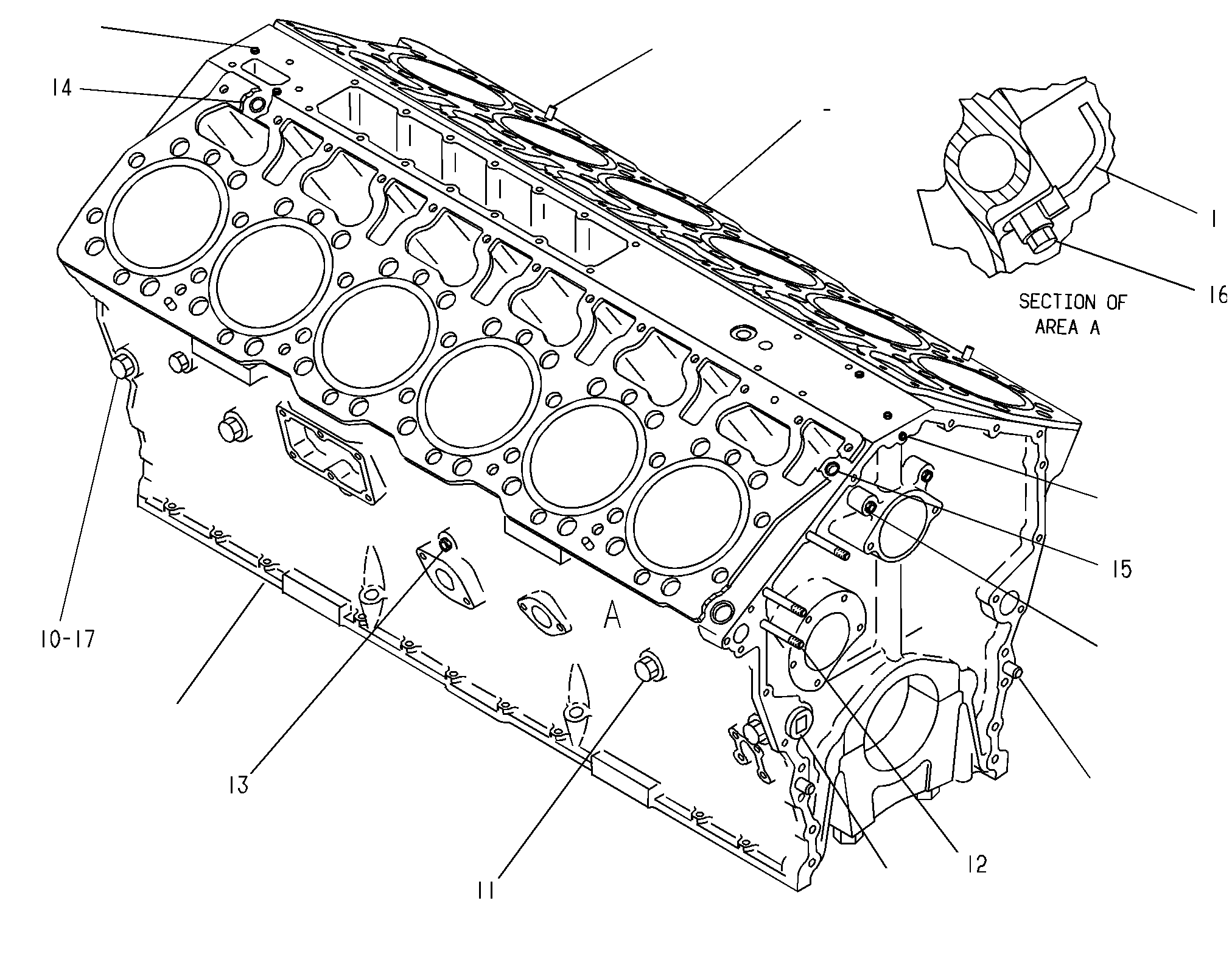

4N-1201 CYLINDER BLOCK GPS/N 73W6093-6171
Group No: 4N-1201
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7W7496 | 1 JET AS-PISTON COOLING | 12 | |
| 4N1650 | 2 DOWEL | 4 | |
| 7H3171 | 3 PLUG-PIPE | 4 | |
| 7N0841 | 4 CYLINDER BLOCK AS | 1 | |
| 9F2247 | 5 PLUG-PIPE (1/8-27-THD) | 7 | |
| 6N9135 | 6 GASKET-PLATE | 2 | |
| 4N4501 | 7 PLATE-BLOCK | 2 | |
| 4N0693 | 8 PLUG-TAPERLOCK (1-1/2-12-THD) | 3 | |
| 4N0683 | 9 DOWEL | 4 | |
| 9S4190 | 10 PLUG-O-RING (7/8-14-THD) | 8 | |
| 3B0645 | 11 PLUG-CUP (32.08-MM OD) | 1 | |
| 6L4428 | 12 STUD-TAPERLOCK (3/8-16X4.01-IN) | 3 | |
| 7M7410 | 13 PLUG-PIPE | 4 | |
| 8M8283 | 14 SEAL-O-RING | 4 | |
| 3S6605 | 15 PLUG-CUP | 2 | |
| 4N9916 | 16 BOLT | 12 | |
| 2M9780 | 17 SEAL-O-RING | 8 | |
| 1010523 | INSERT-LINER SEAT (5.21-MM THK)(STANDARD) | ||
| 1010524 | INSERT-LINER SEAT (5.16-MM THK)(0.5-MM US) | ||
| 1010525 | INSERT-LINER SEAT (5.26-MM THK)(0.5-MM OS) | ||
| 9Y3368 | INSERT-LINER SEAT (0.822-MM THK)(STANDARD) | ||
| 6I4361 | INSERT-LINER SEAT (0.772-MM THK)(0.05-MM US) | ||
| 6I4362 | INSERT-LINER SEAT (0.872-MM THK)(0.05-MM OS) | ||
| 2W3815 | INSERT-LINER SEAT (1.605-MM THK)(STANDARD) | ||
| 6I4363 | INSERT-LINER SEAT (1.555-MM THK)(0.05-MM US) | ||
| 6I4364 | INSERT-LINER SEAT (1.655-MM THK)(0.05-MM OS) | ||
| 5N0093 | INSERT-LINER SEAT (2.71-MM THK)(STANDARD) | ||
| 6I4365 | INSERT-LINER SEAT (2.66-MM THK)(0.05-MM US) | ||
| 6I4366 | INSERT-LINER SEAT (2.76-MM THK)(0.05-MM OS) |
