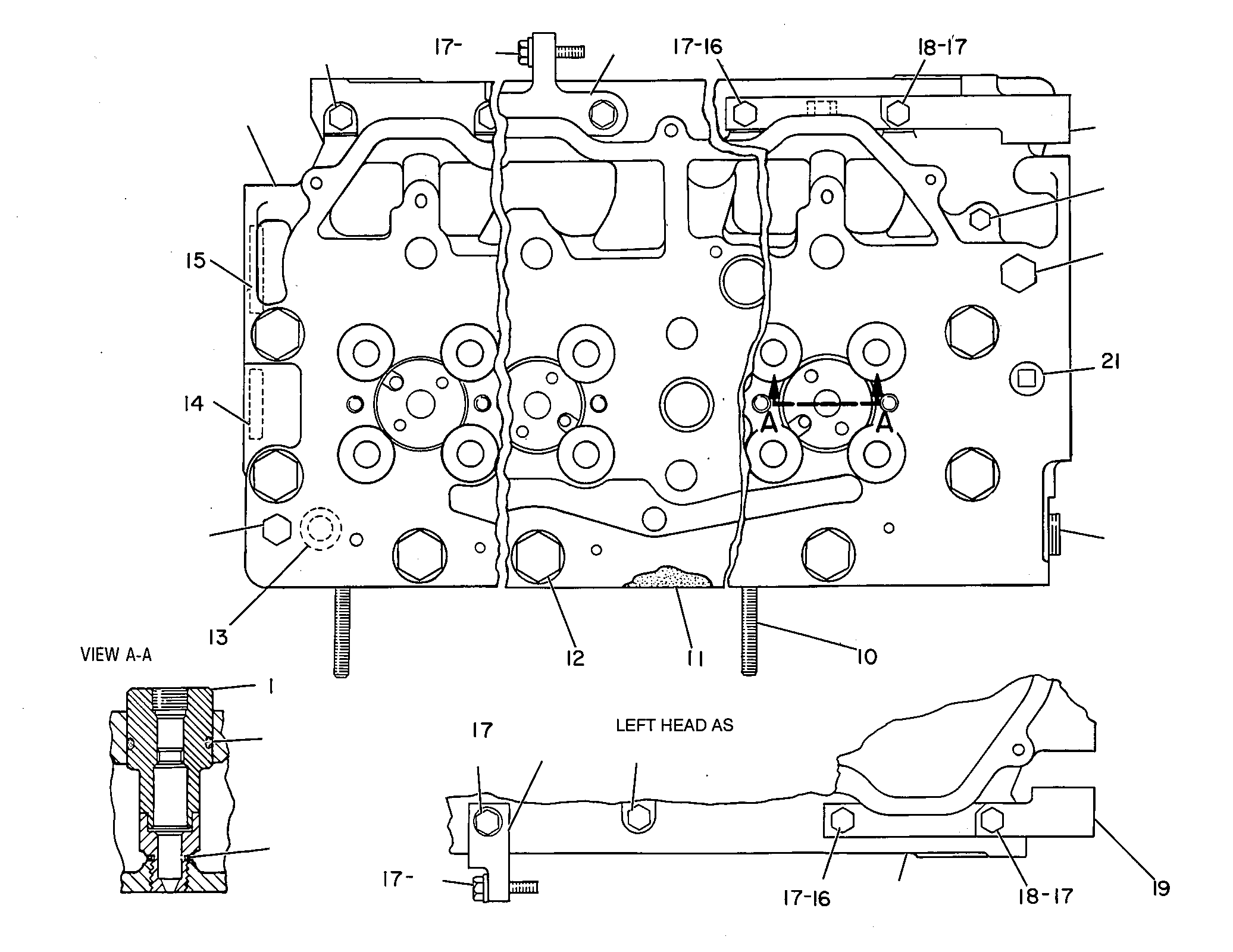

1N-3009 CYLINDER HEAD GPS/N 73W5218-5362

Group No: 1N-3009
Part NumberPart NameQty
2W97571 ADAPTER AS12
2S22512 SEAL-O-RING12
4N72533 GASKET-CHAMBER12
5M62144 PLUG (1/8-27 PTF)2
1W59595 CYLINDER HEAD GP2
0L13526 BOLT (3/8-16X3.25-IN)19
3J53907 PLUG (3/8-18-THD)2
3J53898 PLUG (EXTERNAL)2
1B51749 PLUG-PIPE2
4S613710 STUD-TAPERLOCK (3/8-16X3.1-IN)24
2W798511 GASKET-CYLINDER HEAD2
2H375012 BOLT (3/4-16X7.5-IN)40
5H1504WASHER-HARD (20X33.5X5-MM THK)40
4W105513 SEAL48
5P006314 PLUG-CUP4
4N093215 PLUG-CUP (57.53-MM OD)2
0T005516 BOLT (3/8-16X4.25-IN)2
5M289417 WASHER-HARD (10.2X18.5X2.5-MM THK)5
5B263818 BOLT (3/8-16X5.25-IN)2
6N654719 SUPPORT (TIMING GEAR)1
6N654620 SUPPORT (TIMING GEAR)1
2B085821 PLUG-PIPE2
8S919122 BOLT (3/8-16X4-IN)3
9N258323 BRACKET-FUEL PUMP1
0S159124 BOLT (3/8-16X1.5-IN)2
1W520725 BRACKET-FUEL PUMP1
