System And Components

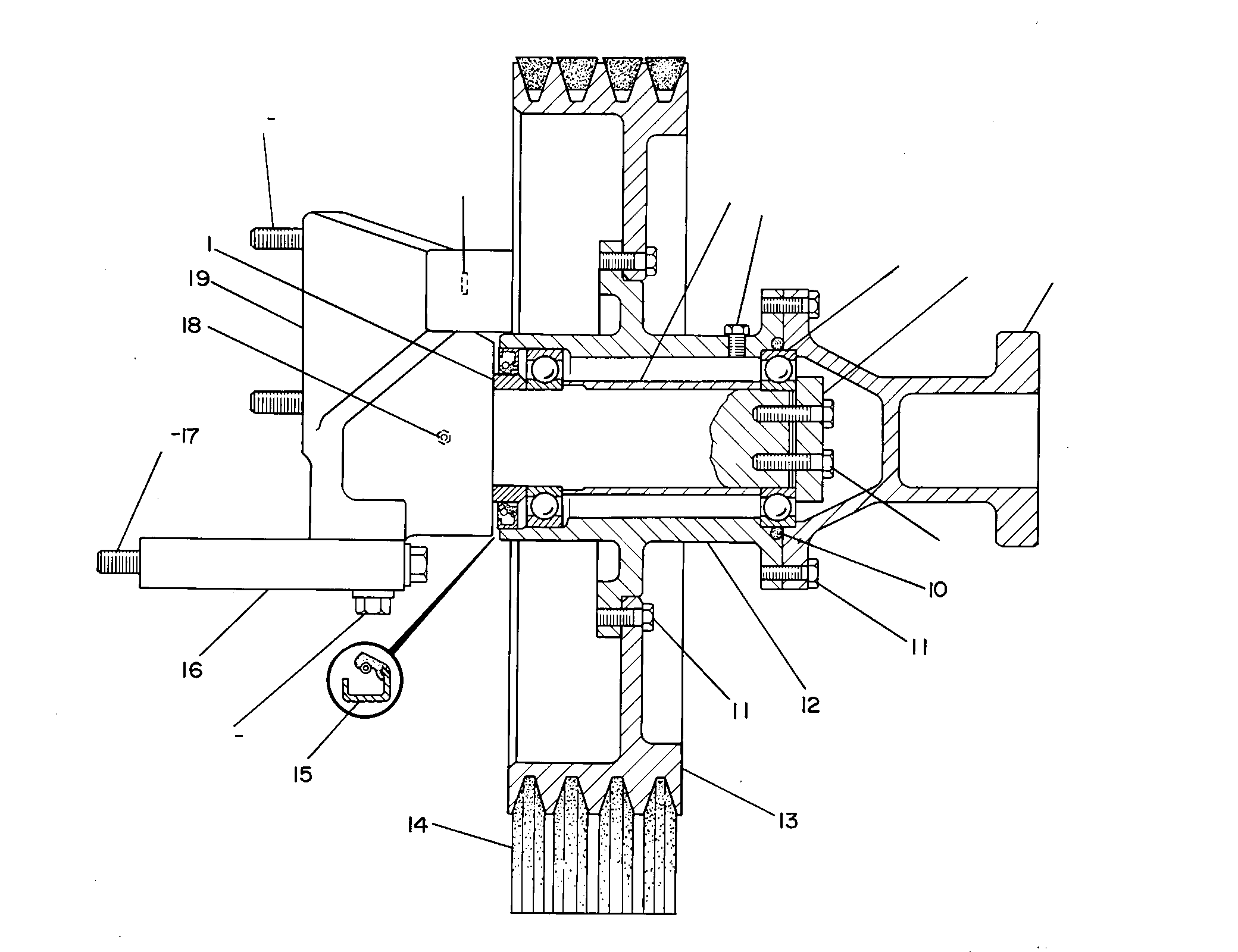

1N-3328 DRIVE GP-FANS/N 49Z1-717
Group No: 1N-3328
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2N9827 | 1 SLEEVE | 1 | |
| 2B0947 | 2 BOLT (1/2-13X2.25-IN) | 5 | |
| 2M0849 | 3 WASHER-HARD (13.5X25.5X5-MM THK) | 6 | |
| 2N9864 | 4 SPACER | 1 | |
| 5M6214 | 5 PLUG (1/8-27 PTF) | 1 | |
| 1F2771 | 6 BALL BEARING | 2 | |
| 6N7574 | 7 WASHER | 1 | |
| 7N2931 | 8 ADAPTER-FAN | 1 | |
| 0310219 | 9 BOLT-LOCKING (3/8-16X1.75-IN) | 2 | |
| 7D7111 | 10 SEAL-O-RING | 1 | |
| 1A2029 | 11 BOLT (3/8-16X1.125-IN) | 14 | |
| 6N1903 | 12 HUB-FAN PULLEY | 1 | |
| 6N7346 | 13 PULLEY-FAN DRIVE | 1 | |
| 6N7575 | 14 V-BELT SET | 1 | |
| 3N0533 | 15 SEAL-LIP TYPE | 1 | |
| 6N7567 | 16 BLOCK-FAN SUPPORT | 1 | |
| 1A0168 | 17 BOLT (1/2-13X7.5-IN) | 1 | |
| 3B8489 | 18 FITTING-GREASE (1/8-27 PTF) | 1 | |
| 6N7569 | 19 BRACKET AS-SUPPORT | 1 | |
| 5B5821 | DOWEL | 1 | |
| 4N0955 | 20 DOWEL | 1 |
