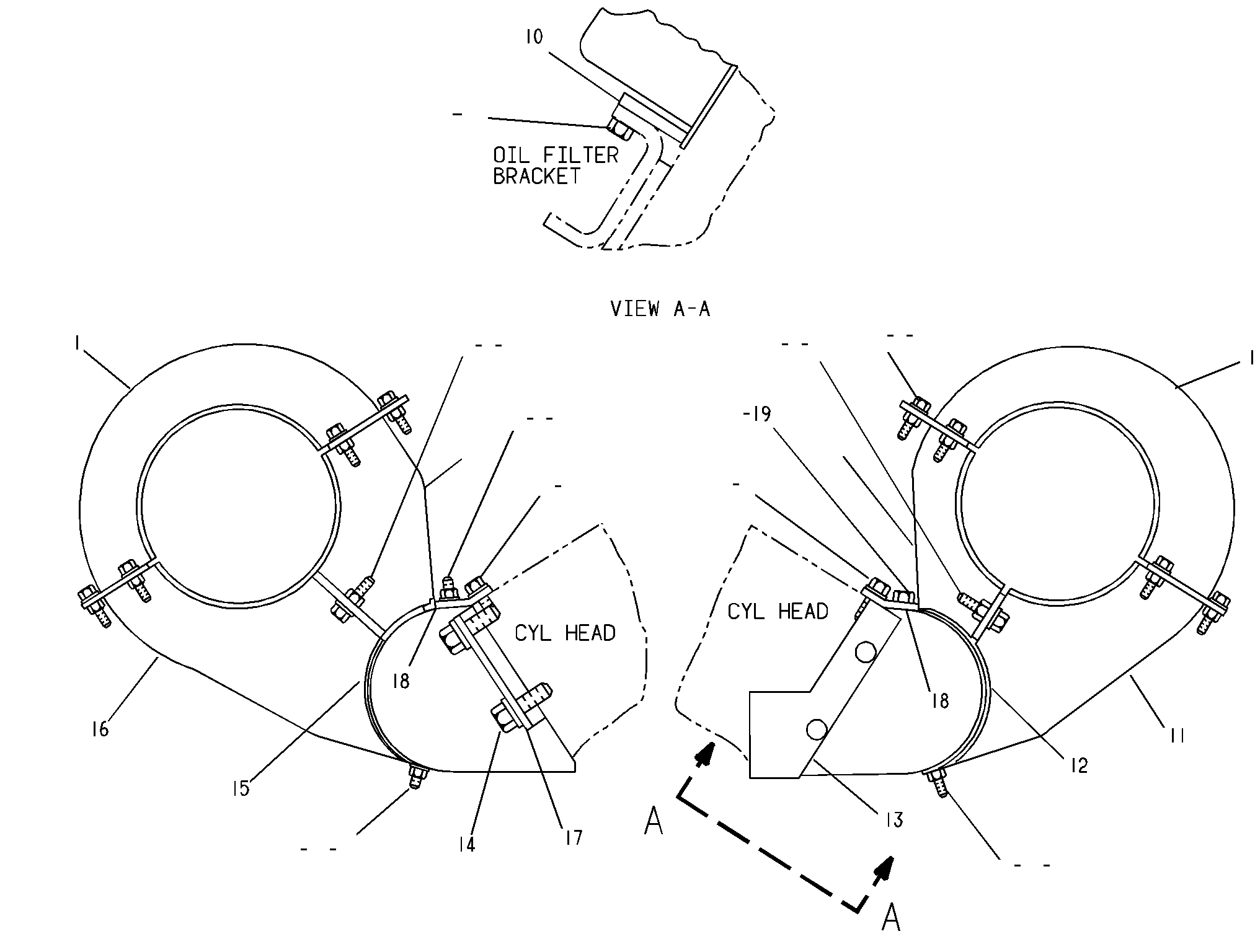

Assembly
100%

1N-3531 SHIELD GP-MANIFOLDS/N 49Z1-99999

Group No: 1N-3531
Part NumberPart NameQty
1W04501 SHIELD AS (RH & LH)2
4M64252 BOLT (5/16-18X1-IN)20
8T42243 WASHER-HARD (8.8X16X2-MM THK)56
6V81894 NUT (5/16-18-THD)38
1W04645 SHIELD AS (LH)1
6V27126 STUD18
4L64547 BOLT (3/8-16X1-IN)14
8T48968 WASHER-HARD (10.2X18.5X2.5-MM THK)14
1W04589 SHIELD AS (RH)1
1W046710 PLATE1
1W046011 SHIELD AS (RH)1
1W045612 SHIELD AS-MANIFOLD (RH)1
8N795413 PLATE (RH & LH)2
0S158714 BOLT (1/2-13X1.75-IN)2
5P8245WASHER-HARD (13.5X25.5X3-MM THK)2
1W046215 SHIELD AS-MANIFOLD (LH)1
1W046616 SHIELD AS (LH)1
8N795317 PLATE1
1W339718 PLATE2
8T539119 BOLT (5/16-18X0.5-IN)4
5P411620 WASHER-HARD (8.8X20.5X2-MM THK)6
