System And Components

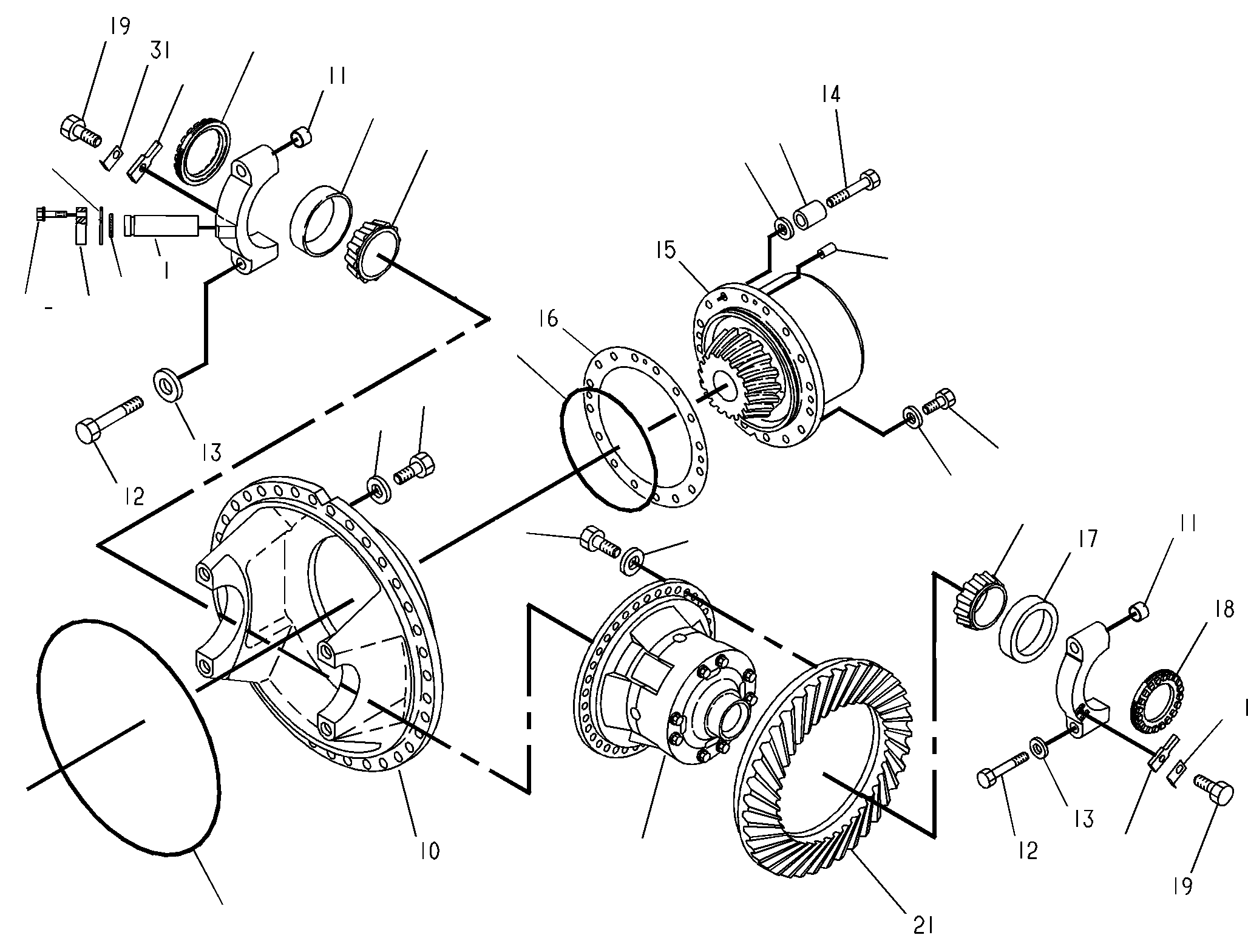

1V-5944 DIFFERENTIAL & BEVEL GEAR GPS/N 49Z1-414; 49Z416-416
Group No: 1V-5944
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1V2788 | 1 PIN | 1 | |
| 5V5670 | 2 COVER | 1 | |
| 5P8245 | 3 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 2H3932 | 4 SEAL-O-RING | 1 | |
| 1V2607 | 5 NUT-ADJUSTMENT | 1 | |
| 2P1823 | 6 CUP-BEARING (TAPERED ROLLER) | 1 | |
| 2D6506 | 7 SEAL-O-RING | 1 | |
| 1D4626 | 8 BOLT (7/8-9X2.75-IN) | 54 | |
| 5P8249 | 9 WASHER-HARD (24X41.5X4-MM THK) | 92 | |
| 7V9515 | 10 CARRIER AS-DIFFERENTIAL | 1 | |
| 7V9514 | 11 SLEEVE | 4 | |
| 6V2624 | 12 BOLT (1-1/4-7X7-IN) | 4 | |
| 4K0684 | 13 WASHER-HARD (34X55X6-MM THK) | 4 | |
| 9S1351 | 14 BOLT (7/8-9X5-IN) | 2 | |
| 1V2835 | 15 GEAR GP-BEVEL | 1 | |
| 1V2718 | 16 SHIM PACK (INCLUDES 20-SHIMS) | 1 | |
| 4F2041 | 17 CUP-BEARING (TAPERED ROLLER) | 1 | |
| 7K0056 | 18 RING-ADJUSTMENT | 1 | |
| 0S1621 | 19 BOLT (1/2-13X1-IN) | 2 | |
| 1V2834 | 20 DIFFERENTIAL GP | 1 | |
| 7V8388 | 21 GEAR-BEVEL (49 TEETH) | 1 | |
| 6F7035 | 22 BOLT (7/8-14X2.25-IN) | 36 | |
| 2M3340 | 23 SEAL-O-RING | 1 | |
| 0S1587 | 24 BOLT (1/2-13X1.75-IN) | 4 | |
| 5J3941 | 25 PIN-SPRING (9.52MM .375IN DIA) | 1 | |
| 3B2225 | DOWEL (12.54MM .494IN DIA) | 1 | |
| 5V5669 | 26 SHIM PACK (INCLUDES 15-SHIMS) | 1 | |
| 2P1824 | 27 CONE-BEARING (TAPERED ROLLER) | 1 | |
| 1V7750 | 28 SPACER (27X44.5X57-MM THK) | 2 | |
| 2D9457 | 29 CONE-BEARING (TAPERED ROLLER) | 1 | |
| 9K4454 | 30 LOCK | 2 | |
| 2D9456 | 31 LOCK | 2 |
