System And Components

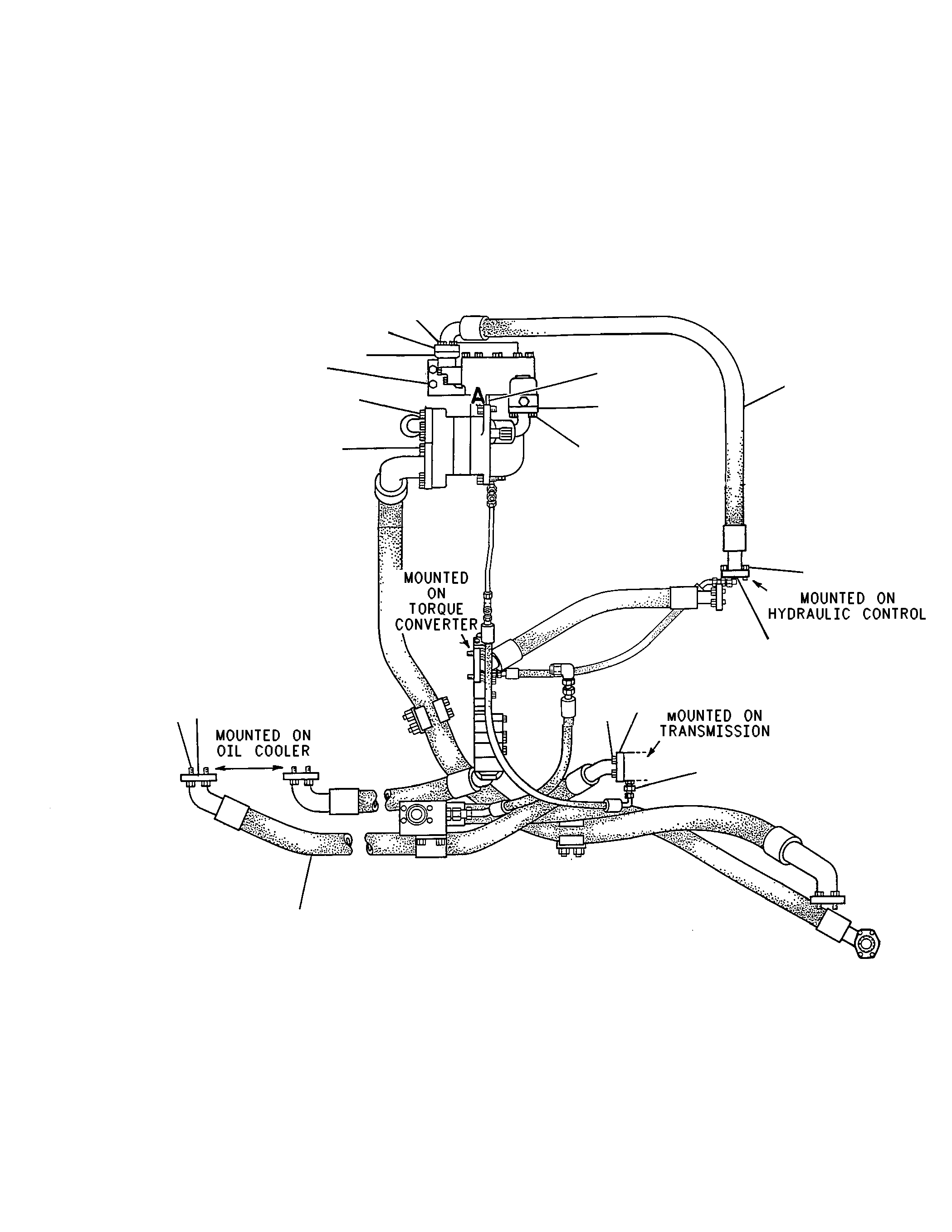

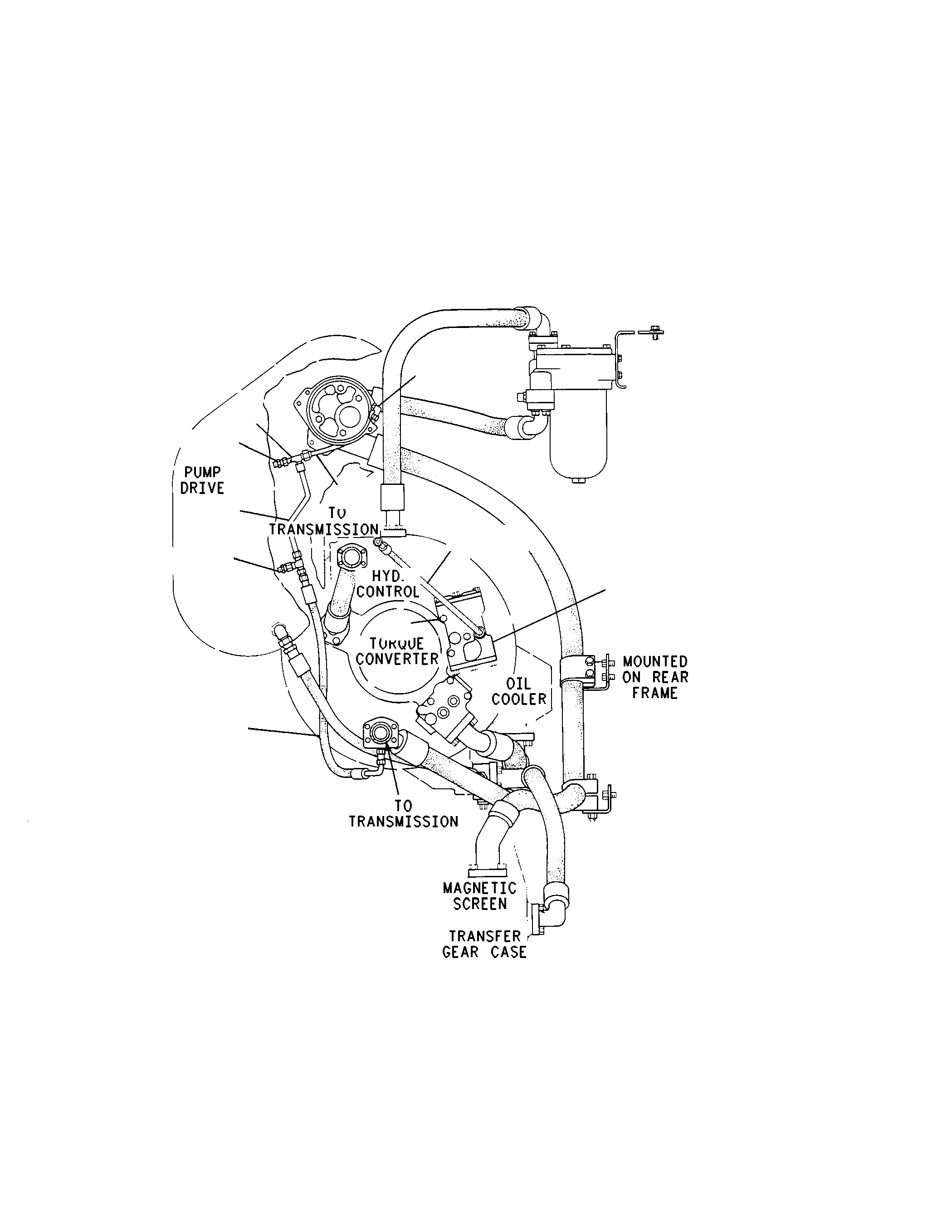

7V-8427 LINES GP-POWER TRAIN OILS/N 49Z374-700
Group No: 7V-8427
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7V8631 | 1 HOSE AS | 1 | |
| 4J0522 | 2 SEAL-O-RING | 3 | |
| 1P4578 | 3 FLANGE-HALF | 6 | |
| 3H5368 | 4 BOLT (7/16-14X1.375-IN) | 8 | |
| 5P8244 | 5 WASHER-HARD (12X22.5X2.5-MM THK) | 12 | |
| 6D0837 | 6 ELBOW | 1 | |
| 1D4556 | 7 BOLT (7/16-14X2.75-IN) | 4 | |
| 1P4579 | 8 FLANGE-HALF | 6 | |
| 0S1585 | 9 BOLT (1/2-13X1.5-IN) | 20 | |
| 5P8245 | 10 WASHER-HARD (13.5X25.5X3-MM THK) | 20 | |
| 4J0524 | 11 SEAL-O-RING | 3 | |
| 1P4582 | 12 FLANGE-HALF | 2 | |
| 4J0527 | 13 SEAL-O-RING | 1 | |
| 7M3882 | 14 CLIP | 1 | |
| 2R6806 | 15 CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4V1121 | 16 HOSE AS | 1 | |
| 0S1588 | 17 BOLT (3/8-16X1.25-IN) | 2 | |
| 1D4717 | NUT (3/8-16-THD) | 2 | |
| 5P1075 | 18 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 3T9343 | 19 SWITCH GP-BYPASS | 1 | |
| 4J0524 | 26 SEAL-O-RING | 2 | |
| 0307950 | 27 ELBOW | 1 | |
| 3D2824 | 28 SEAL-O-RING | 2 | |
| 3P6164 | 29 HOSE AS | 1 | |
| 1P4582 | 30 FLANGE-HALF | 4 | |
| 0S1585 | 31 BOLT (1/2-13X1.5-IN) | 12 | |
| 5P8245 | 32 WASHER-HARD (13.5X25.5X3-MM THK) | 12 | |
| 3H5368 | 33 BOLT (7/16-14X1.375-IN) | 4 | |
| 5P8244 | 34 WASHER-HARD (12X22.5X2.5-MM THK) | 4 | |
| 4J0522 | 35 SEAL-O-RING | 1 | |
| 1P4578 | 36 FLANGE-HALF | 2 | |
| 4V1119 | 37 HOSE AS | 1 | |
| 2R6276 | 38 CONNECTOR | 1 | |
| 2V0600 | 39 CLAMP-HALF | 2 | |
| 5P1076 | 40 WASHER-HARD (13.5X30X4-MM THK) | 10 | |
| 4V0884 | 41 ADAPTER | 1 | |
| 1P3707 | 42 SEAL-RECTANGULAR | 1 | |
| 0V0375 | 43 BOLT (1/2-13X3.25-IN) | 4 | |
| 8S9089 | 44 BOLT (1/2-13X4.5-IN) | 4 | |
| 1D4719 | 45 NUT-FULL (1/2-13-THD) | 4 | |
| 4V1125 | 46 BRACKET | 2 | |
| 4V1123 | 47 CLAMP-HALF | 4 | |
| 0S1621 | BOLT (1/2-13X1-IN) | 4 | |
| 3V5879 | 48 HOSE AS (238CM 93.7IN) | 1 | |
| 1P4579 | 49 FLANGE-HALF | 4 | |
| 4J0527 | 50 SEAL-O-RING | 3 | |
| 4F5192 | 51 BOLT (7/16-14X3-IN) | 2 | |
| 1D4707 | 52 BOLT (7/16-14X2.25-IN) | 2 | |
| 8P2843 | 53 PUMP GP-TRANSMISSION | 1 | |
| 7V0557 | 54 TUBE AS | 1 | |
| 2R6806 | 55 CONNECTOR | 5 | |
| 3J1907 | 56 SEAL-O-RING | 5 | |
| 3T1639 | 57 HOSE AS | 1 | |
| 0L1143 | 58 BOLT (3/8-16X2.5-IN) | 3 | |
| 8M4988 | SEAL-O-RING | 3 | |
| 3V5878 | 59 HOSE AS | 1 | |
| 0619258 | 60 TEE | 1 | |
| 6K9194 | 61 ELBOW | 1 | |
| 3V5906 | 62 TUBE AS | 1 | |
| 0530700 | 63 TEE-SWIVEL (FLARED) | 1 | |
| 6P6569 | 64 VALVE GP-SEQUENCE & PRESS CONT | 1 | |
| 8M4447 | SEAL-O-RING | 1 | |
| 3V5882 | 65 HOSE AS | 1 | |
| 4J0522 | 66 SEAL-O-RING | 1 | |
| 3H5368 | 67 BOLT (7/16-14X1.375-IN) | 4 | |
| 5P8244 | 68 WASHER-HARD (12X22.5X2.5-MM THK) | 4 | |
| 1P4578 | 69 FLANGE-HALF | 2 | |
| 0T0065 | 70 BOLT (3/8-16X3.5-IN) | 3 | |
| 8M8157 | 71 SEAL-O-RING | 1 | |
| 1P4579 | 72 FLANGE-HALF | 4 | |
| 4V1120 | 73 HOSE AS | 1 | |
| 4J0524 | 74 SEAL-O-RING | 2 | |
| 0S1585 | 75 BOLT (1/2-13X1.5-IN) | 8 | |
| 5P8245 | 76 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8P1471 | 77 VALVE GP-RELIEF (CONVERTER OUTLET) | 1 | |
| 8M4443 | SEAL-O-RING | 1 | |
| 3H5841 | 78 BOLT (3/8-16X1-IN) | 3 | |
| 5M2894 | 79 WASHER-HARD (10.2X18.5X2.5-MM THK) | 7 | |
| 8V3557 | 80 BRACKET AS | 1 | |
| 0L1351 | 81 BOLT (3/8-16X0.875-IN) | 4 | |
| 9P0856 | 82 FILTER GP-OIL (POWER TRAIN) | 1 | |
| 7V8532 | 83 SPACER | 1 | |
| 9G3341 | 84 SWITCH AS-TEMPERATURE | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 7V8630 | 85 HOSE AS | 1 |
