System And Components

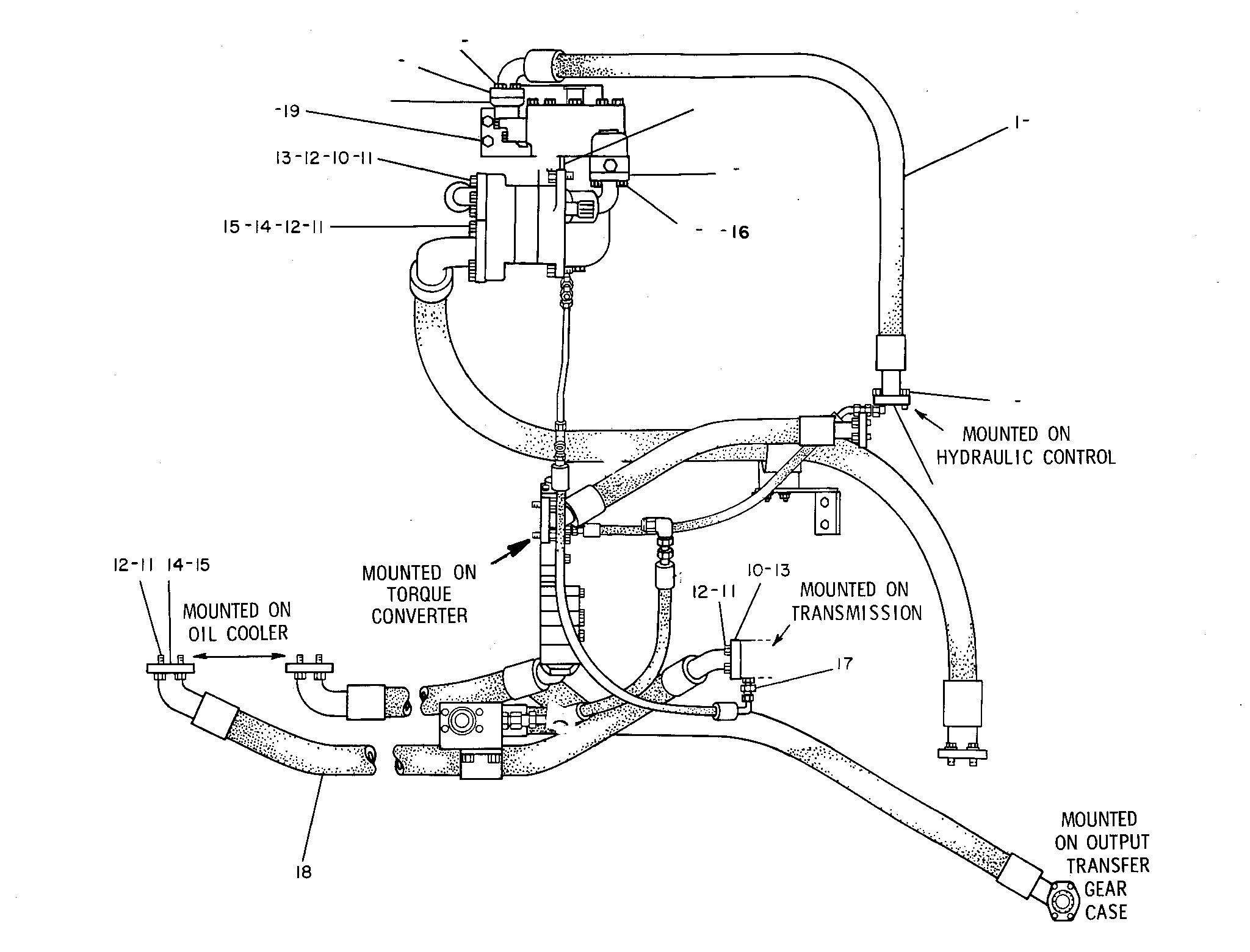

7V-8427 LINES GP-POWER TRAIN OILS/N 49Z1176-1786
Group No: 7V-8427
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7V8631 | 1 HOSE AS | 1 | |
| 5P1075 | 2 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 3T9343 | 3 SWITCH GP-BYPASS | 1 | |
| 4J0522 | 4 SEAL-O-RING | 4 | |
| 1P4578 | 5 FLANGE-HALF | 6 | |
| 7X0308 | 6 BOLT (7/16-14X1.375-IN) | 8 | |
| 8T5360 | 7 WASHER (12X22.5X2.5-MM THK) | 12 | |
| 6D0837 | 8 ELBOW | 1 | |
| 7X0313 | 9 BOLT (7/16-14X2.75-IN) | 4 | |
| 1P4579 | 10 FLANGE-HALF | 6 | |
| 5P2566 | 11 BOLT (1/2-13X1.5-IN) | 20 | |
| 8T4223 | 12 WASHER-HARD (13.5X25.5X3-MM THK) | 20 | |
| 4J0524 | 13 SEAL-O-RING | 2 | |
| 1P4582 | 14 FLANGE-HALF | 6 | |
| 4J0527 | 15 SEAL-O-RING | 1 | |
| 7M3882 | 16 CLIP | 1 | |
| 2R6806 | 17 CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4V1121 | 18 HOSE AS | 1 | |
| 9B7237 | 19 BOLT (3/8-16X1.25-IN) | 2 | |
| 6V8801 | NUT (3/8-16-THD) | 2 | |
| 4J0524 | 20 SEAL-O-RING | 1 | |
| 0307950 | 21 ELBOW | 1 | |
| 3D2824 | 22 SEAL-O-RING | 2 | |
| 3P6164 | 23 HOSE AS | 1 | |
| 7X0314 | 24 BOLT (7/16-14X3-IN) | 2 | |
| 7X0311 | 25 BOLT (7/16-14X2.25-IN) | 2 | |
| 8P2843 | 26 PUMP GP-TRANSMISSION | 1 | |
| 1P4582 | 27 FLANGE-HALF | 2 | |
| 5P2566 | 28 BOLT (1/2-13X1.5-IN) | 6 | |
| 8T4223 | 29 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 7X0308 | 30 BOLT (7/16-14X1.375-IN) | 4 | |
| 8T5360 | 31 WASHER (12X22.5X2.5-MM THK) | 4 | |
| 4J0522 | 32 SEAL-O-RING | 1 | |
| 1P4578 | 33 FLANGE-HALF | 2 | |
| 4V1119 | 34 HOSE AS | 1 | |
| 6W4195 | 35 ANGLE | 1 | |
| 5P2228 | 36 BOLT (1/2-13X1-IN) | 2 | |
| 8T8917 | 37 BOLT (1/2-13X1.25-IN) | 2 | |
| 2R6276 | 38 CONNECTOR | 1 | |
| 2V0600 | 39 CLAMP-HALF | 2 | |
| 5P1076 | 40 WASHER-HARD (13.5X30X4-MM THK) | 8 | |
| 4V0884 | 41 ADAPTER | 1 | |
| 1P3707 | 42 SEAL-RECTANGULAR | 1 | |
| 8T8920 | 43 BOLT (1/2-13X3.25-IN) | 4 | |
| 7X0332 | 44 BOLT (1/2-13X4.5-IN) | 2 | |
| 6V8188 | 45 NUT (1/2-13-THD) | 4 | |
| 6W4184 | 46 PLATE AS | 1 | |
| 4V1123 | 47 CLAMP-HALF | 2 | |
| 6W4196 | 48 HOSE AS | 1 | |
| 1P4579 | 49 FLANGE-HALF | 2 | |
| 4J0527 | 50 SEAL-O-RING | 3 | |
| 7V0557 | 51 TUBE AS | 1 | |
| 2R6806 | 52 CONNECTOR | 5 | |
| 3J1907 | 53 SEAL-O-RING | 5 | |
| 3T1639 | 54 HOSE AS | 1 | |
| 0530700 | 55 TEE-SWIVEL (FLARED) | 1 | |
| 6P6569 | 56 VALVE GP-SEQUENCE & PRESS CONT | 1 | |
| 8M4447 | SEAL-O-RING | 1 | |
| 4L6459 | 57 BOLT (3/8-16X2.5-IN) | 3 | |
| 8M4988 | SEAL-O-RING | 3 | |
| 3V5878 | 58 HOSE AS | 1 | |
| 8C3447 | 59 CAP-DUST | 1 | |
| 8C3446 | 60 VALVE-SAMPLING | 1 | |
| 3J7354 | 61 SEAL-O-RING | 1 | |
| 0619258 | 62 TEE | 1 | |
| 6K9194 | 63 ELBOW | 1 | |
| 3V5906 | 64 TUBE AS | 1 | |
| 3V5882 | 65 HOSE AS | 1 | |
| 4J0522 | 66 SEAL-O-RING | 1 | |
| 7X0308 | 67 BOLT (7/16-14X1.375-IN) | 4 | |
| 8T5360 | 68 WASHER (12X22.5X2.5-MM THK) | 4 | |
| 1P4578 | 69 FLANGE-HALF | 2 | |
| 7X0290 | 70 BOLT (3/8-16X3.5-IN) | 3 | |
| 8M8157 | 71 SEAL-O-RING | 1 | |
| 1P4579 | 72 FLANGE-HALF | 4 | |
| 4V1120 | 73 HOSE AS | 1 | |
| 9G3341 | 74 SWITCH AS-TEMPERATURE | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 7V8630 | 75 HOSE AS | 1 | |
| 4J0524 | 76 SEAL-O-RING | 2 | |
| 5P2566 | 77 BOLT (1/2-13X1.5-IN) | 8 | |
| 8T4223 | 78 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8P1471 | 79 VALVE GP-RELIEF (CONVERTER OUTLET) | 1 | |
| 8M4443 | SEAL-O-RING | 1 | |
| 3H5841 | 80 BOLT (3/8-16X1-IN) | 3 | |
| 8T4896 | 81 WASHER-HARD (10.2X18.5X2.5-MM THK) | 7 | |
| 8V3557 | 82 BRACKET AS | 1 | |
| 5S7379 | 83 BOLT (3/8-16X0.875-IN) | 4 | |
| 9P0856 | 84 FILTER GP-OIL (POWER TRAIN) | 1 | |
| 4J6064 | FILTER ELEMENT AS-OIL (HYDRAULIC) | 1 | |
| 7V8532 | 85 SPACER | 1 |
