System And Components

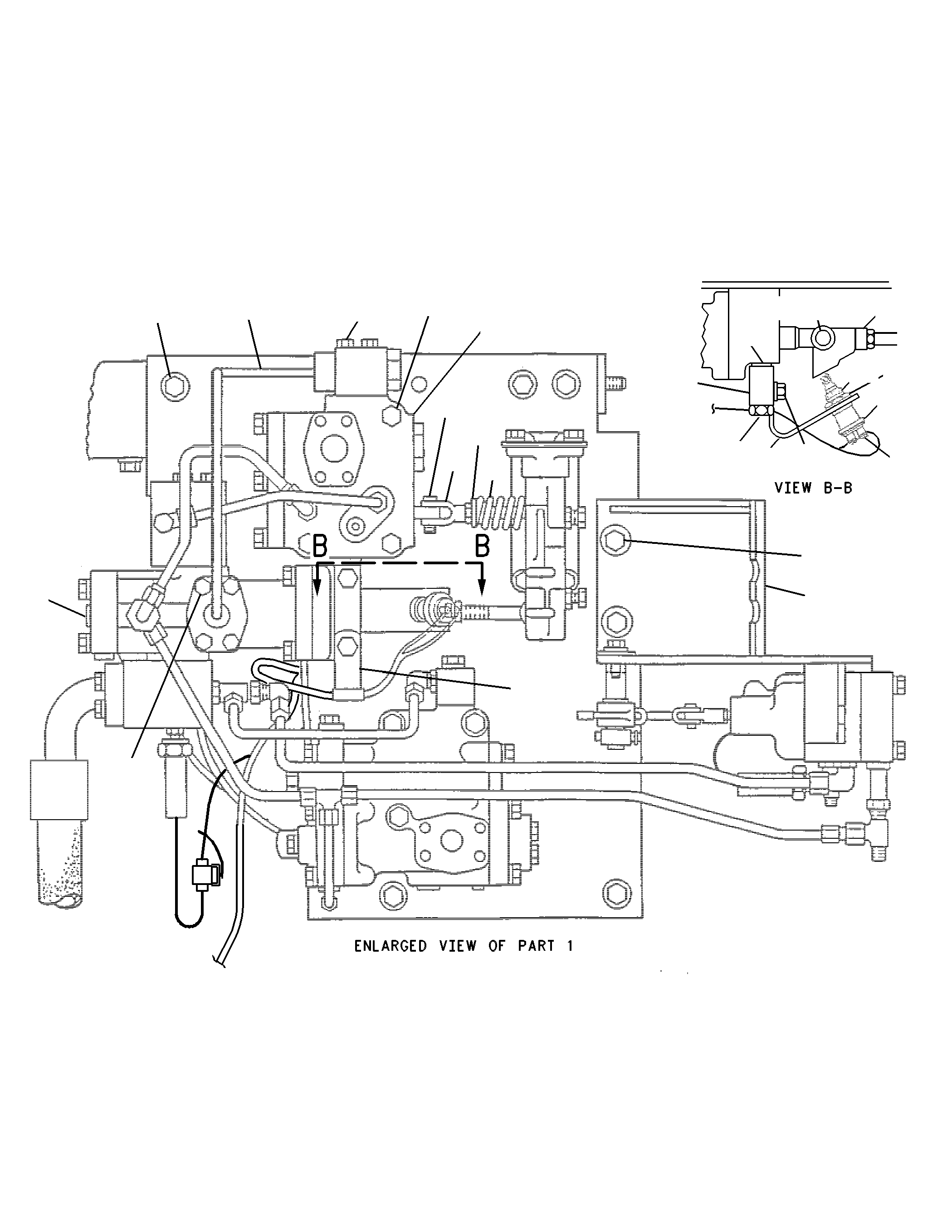

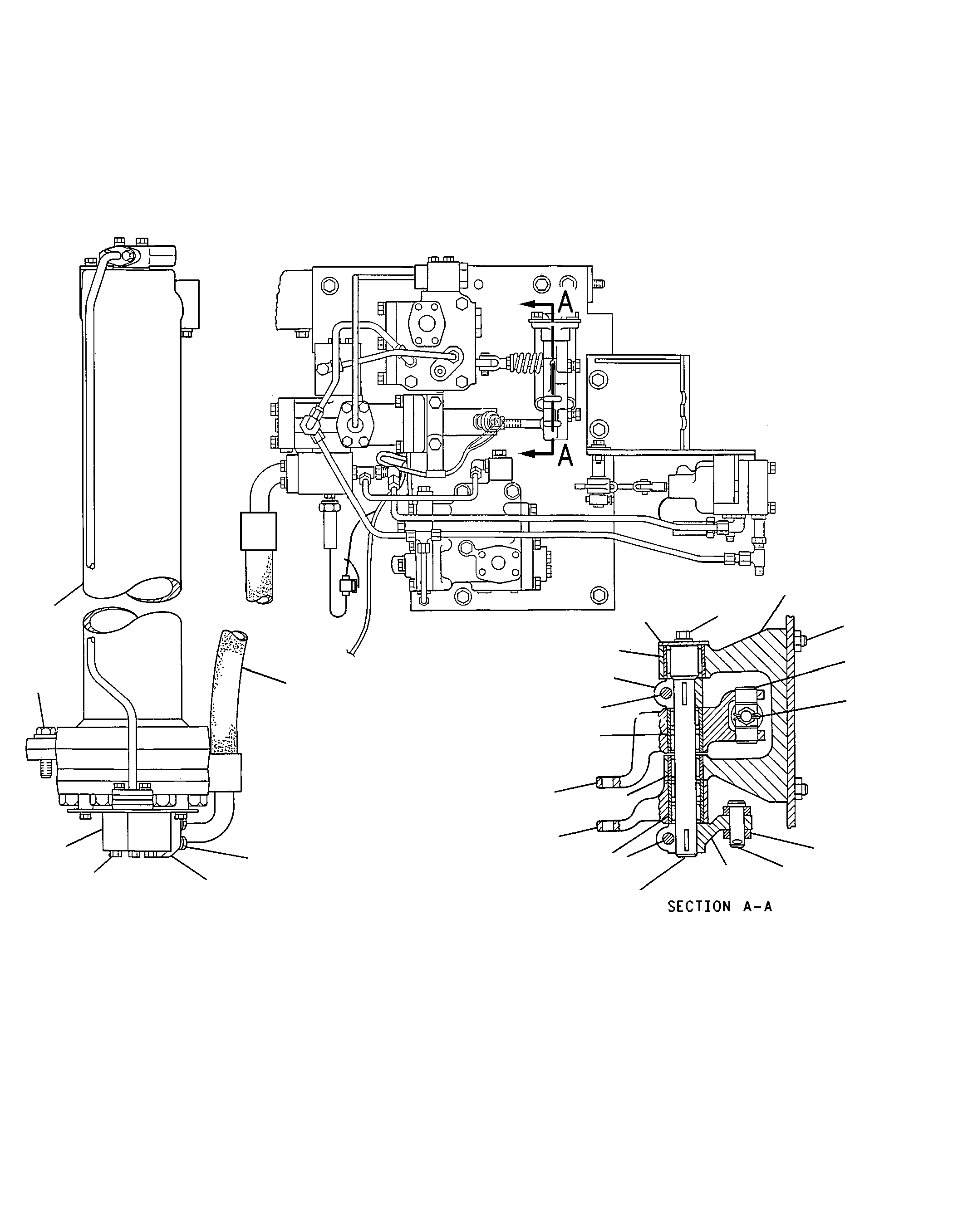

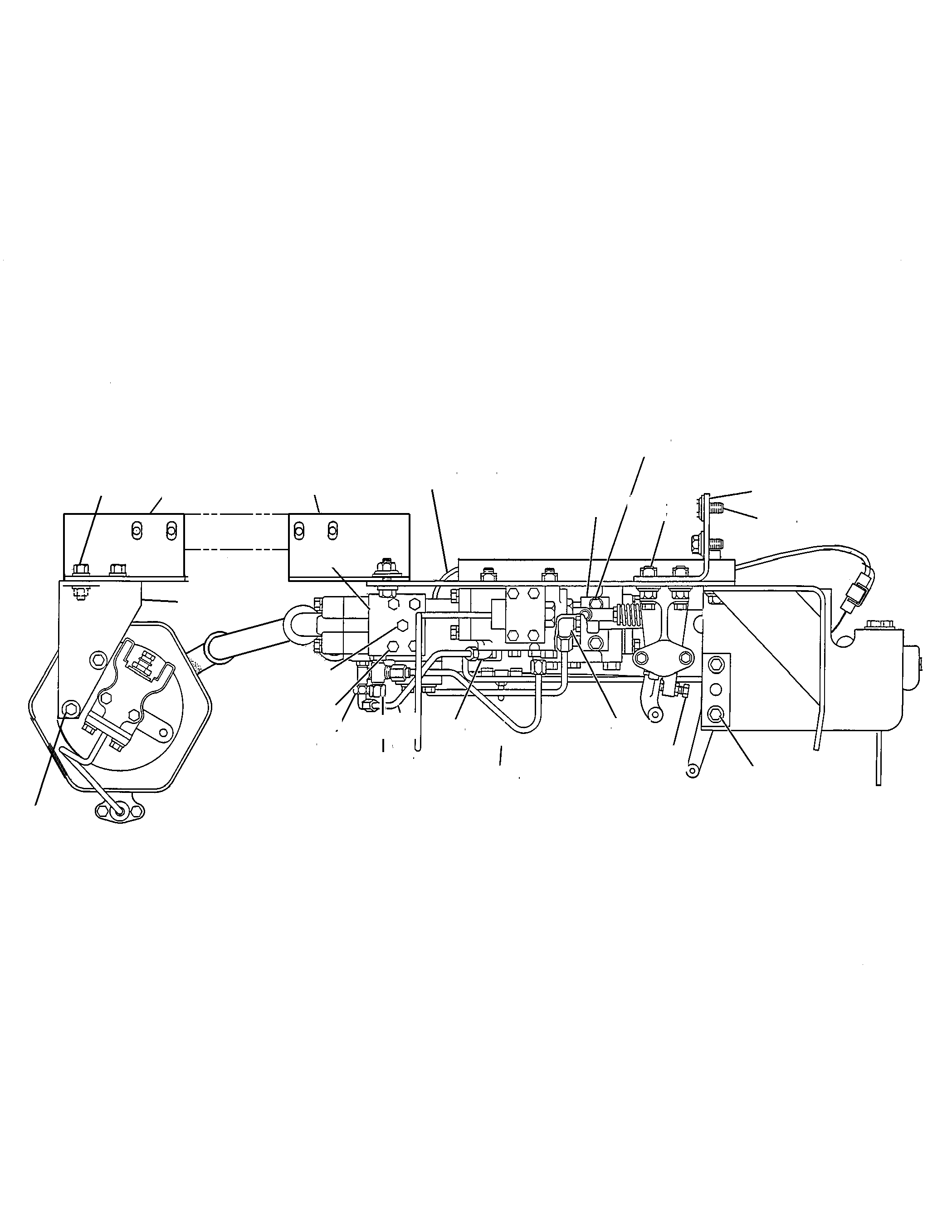

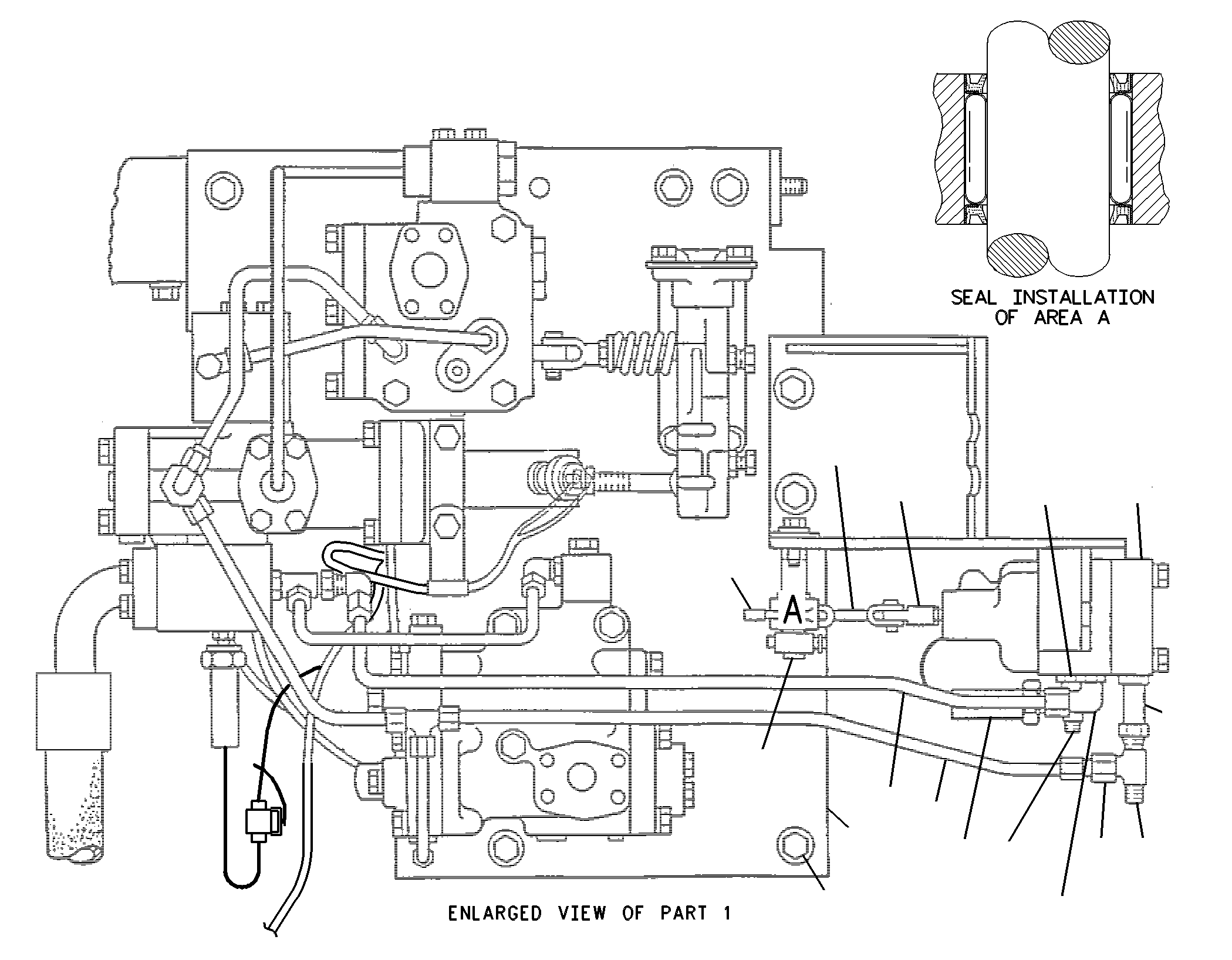

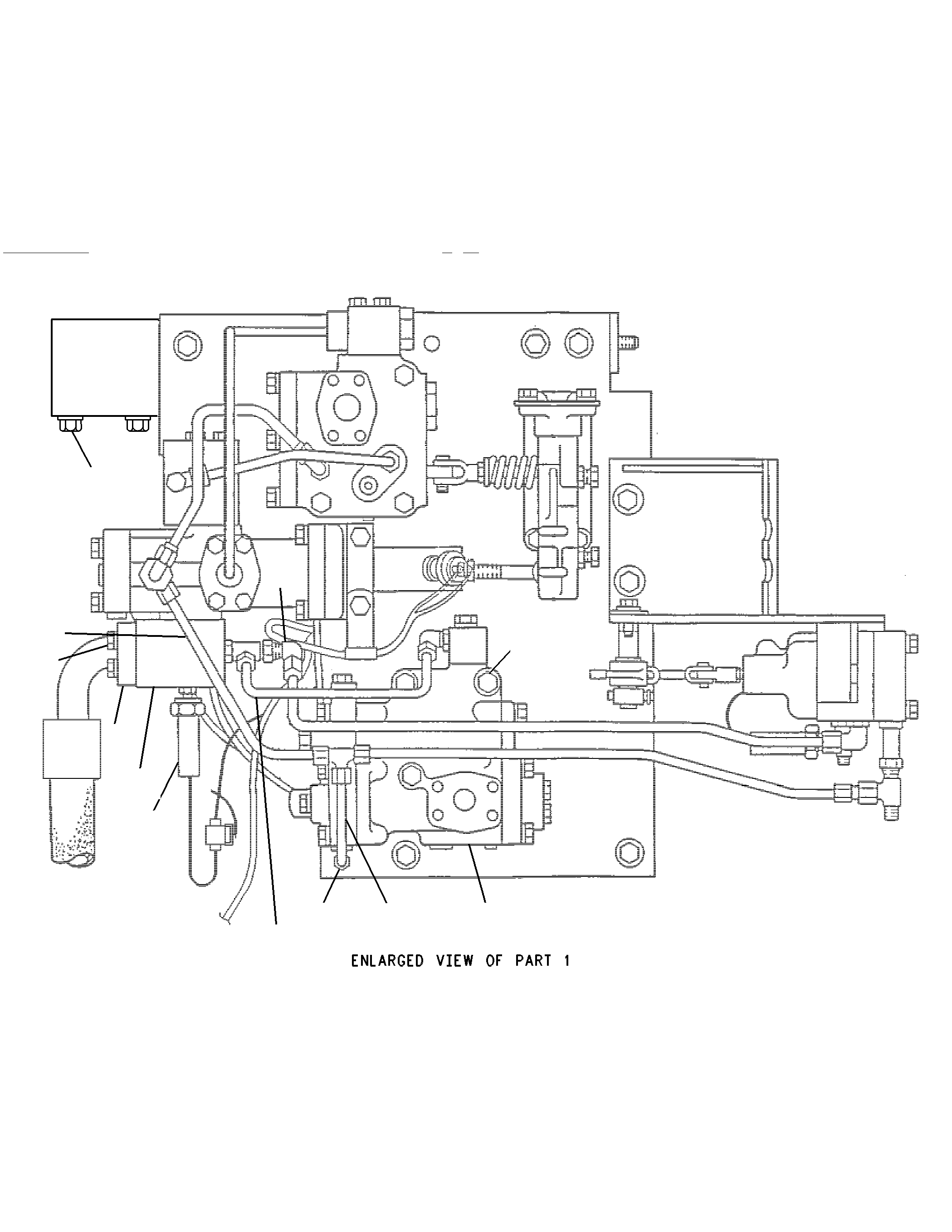

7V-8401 CONTROL GP-SERVICE BRAKES/N 49Z916-99999
Group No: 7V-8401
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3G0278 | 1 ACCUMULATOR GP-BRAKE (CHARGED) | 1 | |
| 8T6871 | 2 BOLT (5/8-11X2.5-IN) | 2 | |
| 7X0515 | WASHER-HARD (17X35X5-MM THK) | 2 | |
| 8J4854 | 3 BLOCK-SHEAR CYLINDER | 1 | |
| 4J0522 | 4 SEAL-O-RING | 2 | |
| 7X0315 | 5 BOLT (7/16-14X3.25-IN) | 4 | |
| 1P4578 | 6 FLANGE-HALF | 2 | |
| 7X0308 | 7 BOLT (7/16-14X1.375-IN) | 4 | |
| 8T5360 | WASHER (12X22.5X2.5-MM THK) | 4 | |
| 3V5656 | 8 HOSE AS | 1 | |
| 5S7382 | 9 BOLT (3/8-16X1.375-IN) | 2 | |
| 2P9858 | 10 BEARING-ROLLER | 4 | |
| 2V0016 | 11 LEVER | 1 | |
| 6D3787 | 12 BEARING-ROLLER | 1 | |
| 2V0015 | 13 LEVER | 1 | |
| 2V0003 | 14 LEVER | 1 | |
| 1B8706 | 15 KEY-WOODRUFF | 2 | |
| 9S6465 | 16 BEARING-ROLLER | 1 | |
| 5J5437 | 17 COVER | 1 | |
| 8T9364 | 18 BOLT (1/4-20X0.625-IN) | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 2V3717 | 19 BRACKET | 1 | |
| 4L9337 | 20 BOLT (3/8-16X1.5-IN) | 4 | |
| 8T4896 | 21 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 9F8910 | 22 PIN | 1 | |
| 3B4617 | 23 PIN-COTTER | 2 | |
| 1B4442 | 24 NUT-SLOTTED | 1 | |
| 4B8523 | 25 ROD-BRAKE CONTROL | 1 | |
| 1B4430 | NUT-JAM (1/2-20-THD) | 1 | |
| 0S0175 | 26 PIN-CLEVIS | 1 | |
| 2V0014 | 27 LEVER | 1 | |
| 2V3761 | 28 SHAFT | 1 | |
| 9J4080 | 29 VALVE GP-BRAKE CONTROL | 1 | |
| 5P2566 | 30 BOLT (1/2-13X1.5-IN) | 1 | |
| 6V8188 | NUT (1/2-13-THD) | 1 | |
| 8T7971 | WASHER-HARD (13.5X25.5X5-MM THK) | 1 | |
| 5P1076 | 31 WASHER-HARD (13.5X30X4-MM THK) | 3 | |
| 3V5861 | 32 TUBE AS | 1 | |
| 7K1308 | 33 SPACER (5-MM THK) | 2 | |
| 1P3703 | 34 SEAL-RECTANGULAR | 2 | |
| 8T9397 | 35 BOLT (3/4-10X1.25-IN) | 4 | |
| 6V4432 | 36 BOLT (1/2-13X4-IN) | 3 | |
| 4T3128 | 37 VALVE GP-BRAKE NEUTRALIZER | 1 | |
| 1B0676 | 38 PIN | 1 | |
| 3B4617 | 39 PIN-COTTER | 2 | |
| 1M1341 | 40 END-YOKE ROD | 1 | |
| 2V7226 | 41 RETAINER | 2 | |
| 5B9079 | NUT-JAM (3/8-24-THD) | 1 | |
| 2P5677 | 42 SPRING | 1 | |
| 2V3764 | ROD | 1 | |
| 0S0175 | 43 PIN-CLEVIS | 1 | |
| 8V0014 | 44 ROD END | 1 | |
| 8T8917 | 45 BOLT (1/2-13X1.25-IN) | 2 | |
| 3V5817 | 46 BRACKET AS | 1 | |
| 6V2383 | 47 CLIP | 1 | |
| 5S7383 | 48 BOLT (3/8-16X1.75-IN) | 4 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 5S7379 | 49 BOLT (3/8-16X0.875-IN) | 1 | |
| 5P1075 | WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 7X0336 | 50 BOLT (1/2-13X5.5-IN) | 2 | |
| 8V3924 | 51 BRACKET | 1 | |
| 8V3923 | 52 BLOCK | 1 | |
| 9X0023 | 53 SWITCH AS-ROLLER (STOPLIGHTS) | 1 | |
| 6V8363 | 54 SCREW (10-32X0.312-IN) | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 9X0199 | 55 BOOT-SWITCH | 1 | |
| 6V8370 | 56 NUT-HEX (3/4-32-THD) | 1 | |
| 2H3922 | LOCKWASHER | 1 | |
| 9W2653 | 57 SWITCH AS-PRESSURE (PARKING BRAKE) | 1 | |
| 7N7781 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 3V5813 | 58 PLATE AS | 1 | |
| 8T8917 | 59 BOLT (1/2-13X1.25-IN) | 2 | |
| 5P1076 | 60 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 3G2228 | 61 VALVE GP-BRAKE CONTROL | 1 | |
| 5S7379 | 62 BOLT (3/8-16X0.875-IN) | 2 | |
| 5P1075 | 63 WASHER-HARD (10.2X22.5X3-MM THK) | 2 | |
| 1P1376 | 64 CONNECTOR-PORT | 1 | |
| 3J1907 | 65 SEAL-O-RING | 3 | |
| 0307947 | 66 ADAPTER-ELBOW | 1 | |
| 8C2948 | 67 ADAPTER-TEE | 1 | |
| 0619258 | 68 TEE (SWIVEL) | 1 | |
| 3R4437 | 69 NUT (9/16-18-THD) | 1 | |
| 0308142 | REDUCER-FLARED | 1 | |
| 3V5864 | 70 TUBE AS | 1 | |
| 1A4790 | 71 WASHER (16.7X31.8X1.6-MM THK) | 1 | |
| 4K3777 | 72 EYE-ADJUSTMENT | 1 | |
| 9M1311 | NUT-JAM (1/4-28-THD) | 1 | |
| 5H1389 | 73 ROD-CONTROL | 1 | |
| 4J5325 | PIN | 2 | |
| 3B4607 | 74 PIN-COTTER | 3 | |
| 4V0596 | 75 SHAFT AS | 1 | |
| 4V1541 | COLLAR | 1 | |
| 4B2913 | PIN-CLEVIS | 1 | |
| 2V7859 | BEARING | 1 | |
| 4V0010 | 76 LEVER | 1 | |
| 5P6724 | BEARING-ROLLER | 1 | |
| 8T0741 | SEAL-LIP TYPE | 2 | |
| 3V5863 | 77 TUBE AS | 1 | |
| 9J4693 | 78 VALVE GP-ACCUMULATOR CHARGING | 1 | |
| 7X0332 | 79 BOLT (1/2-13X4.5-IN) | 3 | |
| 0307946 | 80 ELBOW | 1 | |
| 3J7354 | 81 SEAL-O-RING | 1 | |
| 3V5896 | 82 TUBE AS | 1 | |
| 0055421 | 83 TEE-UNION | 1 | |
| 6K9194 | 84 ELBOW | 1 | |
| 3V5862 | 85 TUBE AS | 1 | |
| 6M6853 | 86 TEE-O-RING | 1 | |
| 3J1907 | 87 SEAL-O-RING | 2 | |
| 9W2653 | 88 SWITCH AS-PRESSURE (LOW BRAKE) | 1 | |
| 7N7781 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 3S2093 | STRAP-CABLE | 1 | |
| 5P2228 | 89 BOLT (1/2-13X1-IN) | 4 | |
| 8T4223 | WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 1Y7574 | 90 BOLT-HEAD (3/8-16X2.5-IN) | 4 | |
| 9C2245 | 91 BLOCK | 1 | |
| 4J0519 | SEAL-O-RING | 1 | |
| 1P4577 | 92 FLANGE-HALF | 2 | |
| 4J0520 | SEAL-O-RING | 1 | |
| 9B7237 | 93 BOLT (3/8-16X1.25-IN) | 4 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 3V5865 | 94 TUBE AS | 1 | |
| 8C4436 | 95 BOLT (1/2-13X1.375-IN) | 2 | |
| 6V8188 | NUT (1/2-13-THD) | 2 | |
| 5P1076 | 96 WASHER-HARD (13.5X30X4-MM THK) | 4 | |
| 7V8531 | 97 BRACKET | 1 | |
| 5S7379 | 98 BOLT (3/8-16X0.875-IN) | 4 | |
| 3V5666 | 99 BLOCK | 1 | |
| 4J0522 | SEAL-O-RING | 1 | |
| 8T8917 | 100 BOLT (1/2-13X1.25-IN) | 4 | |
| 5M6214 | 101 PLUG (1/8-27 PTF) | 1 | |
| 9C2169 | 102 HARNESS AS | 1 | |
| 8M2770 | 103 CLIP (LOOP) | 2 | |
| 5M3062 | BOLT (3/8-16X0.75-IN) | 2 | |
| 7V8302 | 104 BRACKET | 1 | |
| 7V8533 | 105 BRACKET | 1 | |
| 8T4896 | 106 WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 7K4994 | 107 FLANGE | 1 | |
| 9H6761 | SEAL-O-RING | 1 | |
| 8T2501 | 108 BOLT (3/8-16X2-IN) | 2 | |
| 3V5809 | 109 BRACKET AS | 1 | |
| 7K9197 | 110 ELBOW (SWIVEL) | 1 | |
| 0307957 | TEE-FLARED | 1 | |
| 2A1396 | 111 SCREW-ADJUSTMENT | 2 | |
| 1B2578 | NUT (3/8-16-THD)(JAM) | 2 | |
| 0307947 | 112 ADAPTER-ELBOW | 1 | |
| 3J1907 | 113 SEAL-O-RING | 4 | |
| 3V5866 | 114 TUBE AS | 1 | |
| 2R6806 | 115 CONNECTOR | 1 | |
| 8S4950 | 116 CAP (FLARED 37-DEG) | 1 | |
| 6M6853 | TEE-O-RING | 1 | |
| 7X0291 | 117 BOLT (3/8-16X3.75-IN) | 4 | |
| 5P1075 | 118 WASHER-HARD (10.2X22.5X3-MM THK) | 2 | |
| 8T4223 | 119 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 0307946 | 120 ELBOW | 1 | |
| 3J7354 | 121 SEAL-O-RING | 2 | |
| 9V0230 | 122 TUBE AS | 1 |
