System And Components

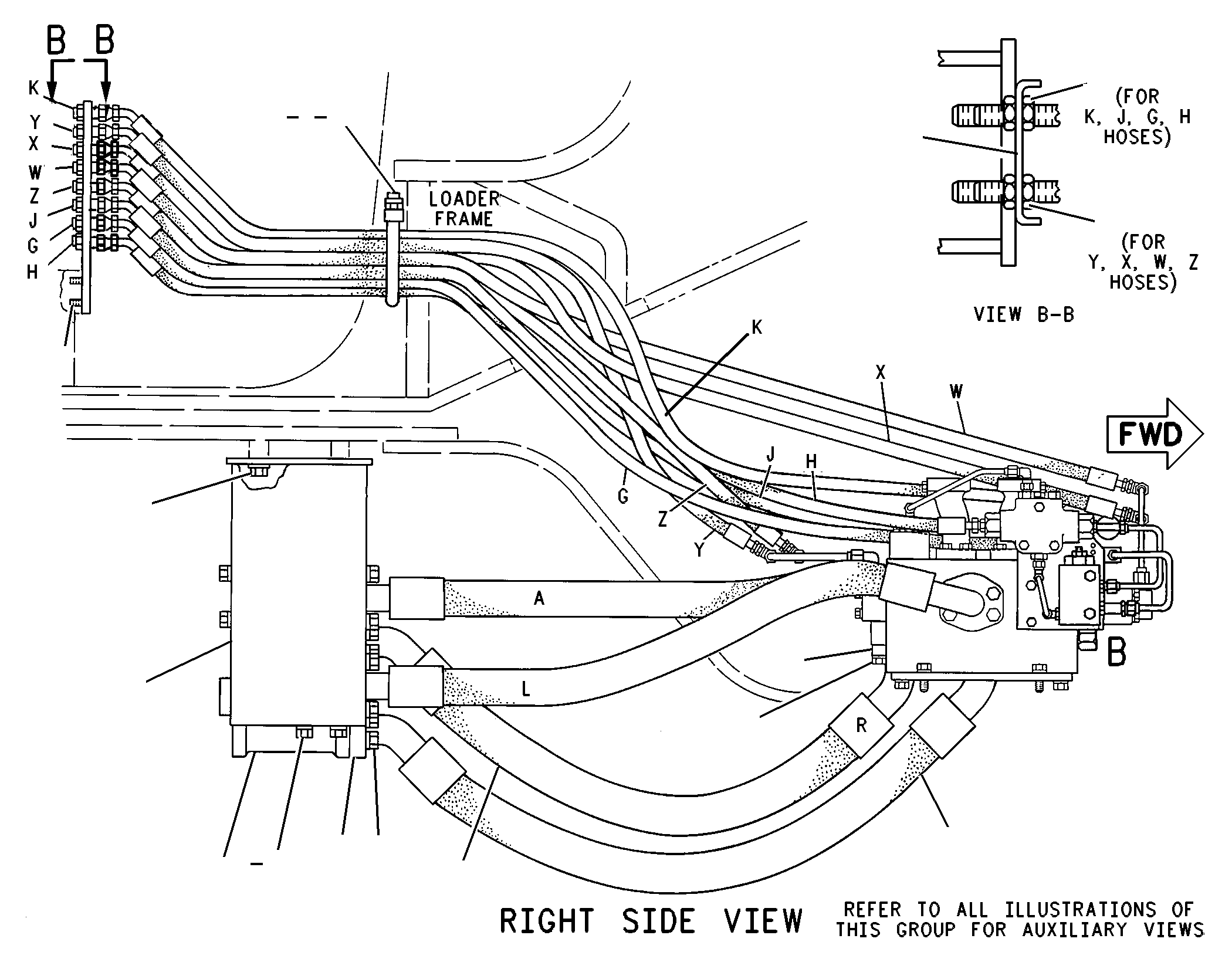

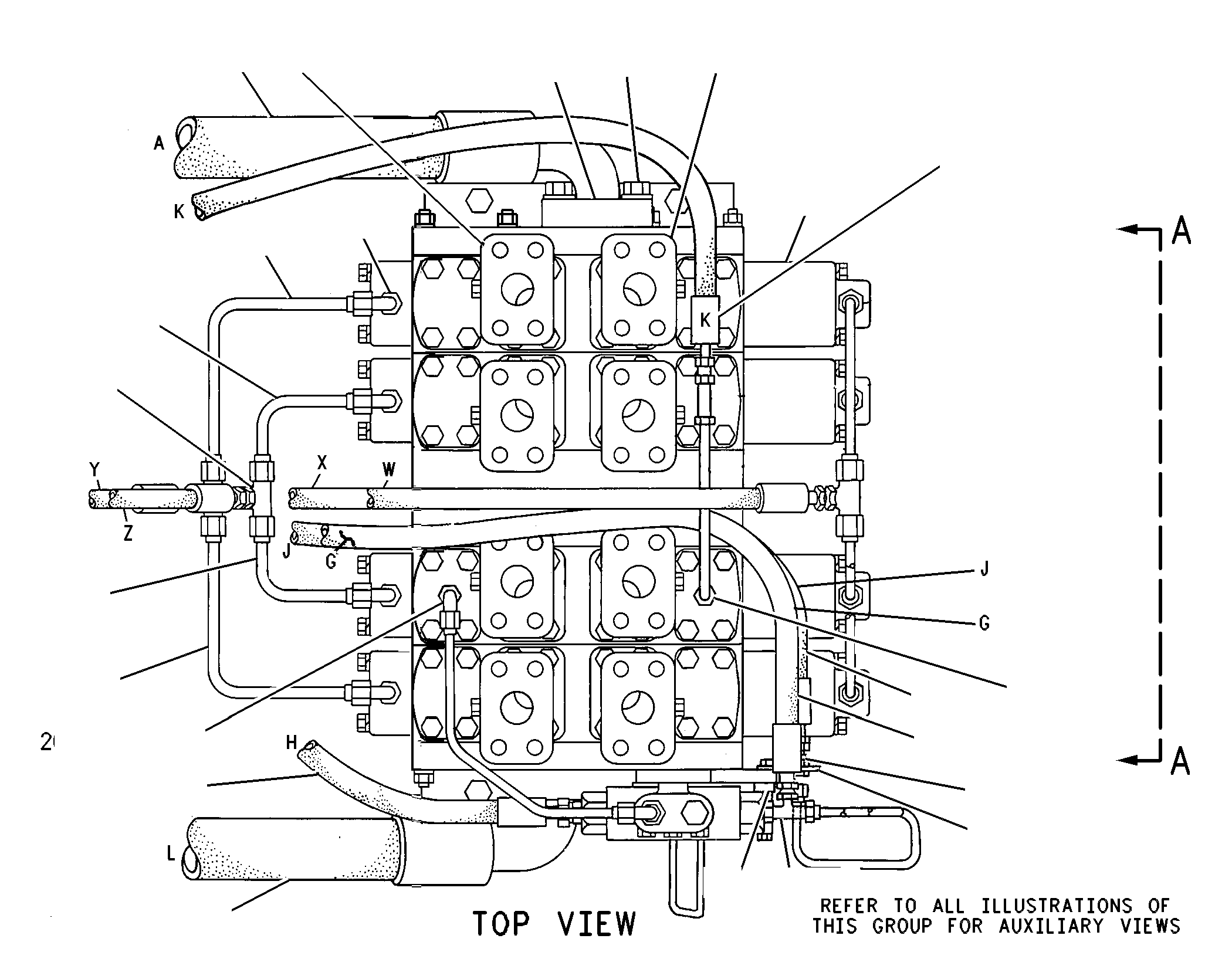

8R-7403 VALVE & LINES GP-HYD CONTROLS/N 49Z1897-99999
Group No: 8R-7403
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4L6454 | 1 BOLT (3/8-16X1-IN) | 4 | |
| 5P1075 | WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 8R2001 | 2 CHANNEL | 1 | |
| 6V8995 | 3 UNION (STRAIGHT) | 4 | |
| 6V9169 | NUT (13/16-16-THD) | 4 | |
| 5V9354 | 4 U-BOLT | 1 | |
| 3K6060 | 5 LOCKNUT (3/8-16-THD) | 2 | |
| 9M4594 | 6 SPACER (0.406X0.875X0.75-IN THK) | 2 | |
| 8C4436 | 7 BOLT (1/2-13X1.375-IN) | 4 | |
| 5P1076 | 8 WASHER-HARD (13.5X30X4-MM THK) | 4 | |
| 6V8994 | 9 UNION (STRAIGHT) | 4 | |
| 6V9168 | NUT (11/16-16-THD) | 4 | |
| 2V3047 | 10 HOSE AS | 1 | |
| 5P2566 | 11 BOLT (1/2-13X1.5-IN) | 16 | |
| 8T4223 | WASHER-HARD (13.5X25.5X3-MM THK) | 16 | |
| 1P4582 | 12 FLANGE-HALF | 8 | |
| 4J0527 | SEAL-O-RING | 4 | |
| 2V3048 | 13 HOSE AS | 1 | |
| 9J4114 | 14 VALVE GP-MANIFOLD & RELIEF (MAIN) | 1 | |
| 3V7747 | 15 BRACKET AS | 1 | |
| 8T9393 | 16 BOLT (5/8-11X1.5-IN) | 4 | |
| 8T4122 | WASHER-HARD (17X32X3.5-MM THK) | 4 | |
| 3V0752 | 17 HOSE AS | 2 | |
| 3V6962 | 18 ADAPTER | 4 | |
| 1P3705 | 19 SEAL-RECTANGULAR | 10 | |
| 5P2566 | 20 BOLT (1/2-13X1.5-IN) | 32 | |
| 5P8077 | 21 FLANGE-HALF | 4 | |
| 7X0347 | 22 BOLT (5/8-11X2.25-IN) | 8 | |
| 8T4122 | WASHER-HARD (17X32X3.5-MM THK) | 8 | |
| 3V6961 | 23 ADAPTER | 4 | |
| 9T1482 | 24 VALVE GP-CONTROL | 1 | |
| 6V8994 | 25 UNION (STRAIGHT) | 1 | |
| 3J1907 | 26 SEAL-O-RING | 3 | |
| 8R2005 | 27 TUBE AS | 2 | |
| 6V9168 | 28 NUT (11/16-16-THD) | 1 | |
| 8R2006 | 29 TUBE AS | 2 | |
| 5M3062 | 30 BOLT (3/8-16X0.75-IN) | 2 | |
| 8R7402 | 31 HOSE AS | 2 | |
| 6V8781 | 32 TEE | 1 | |
| 8D7564 | 33 INSERT | 2 | |
| 8R9580 | 34 HOSE AS | 1 | |
| 8R7400 | 35 HOSE AS | 1 | |
| 6V8636 | 36 CONNECTOR | 2 | |
| 6V9851 | 37 ELBOW | 4 | |
| 6V8789 | 38 TEE | 2 | |
| 8T4896 | 39 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 6V9850 | 40 ELBOW | 1 | |
| 6V8398 | 41 SEAL-O-RING | 12 | |
| 4E8150 | 42 PLATE | 1 | |
| 6V8397 | 43 SEAL-O-RING | 9 | |
| 9U1885 | 44 HOSE AS | 2 | |
| 8R7401 | 45 HOSE AS | 2 | |
| 4E4488 | 46 HOSE AS | 1 | |
| 3J1907 | 47 SEAL-O-RING | 12 | |
| 8T4896 | 48 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 9S4191 | 49 PLUG (9/16-18-THD) | 8 | |
| 6V8724 | 50 ELBOW | 1 | |
| 8R2008 | 51 TUBE AS | 1 | |
| 6V9850 | 52 ELBOW | 2 | |
| 6V8715 | 53 CONNECTOR | 2 | |
| 2M9780 | 54 SEAL-O-RING | 3 | |
| 6V8636 | 55 CONNECTOR | 2 | |
| 8J2602 | 56 VALVE GP-SELECTOR | 1 | |
| 4L6459 | 57 BOLT (3/8-16X2.5-IN) | 3 | |
| 8C4436 | 58 BOLT (1/2-13X1.375-IN) | 4 | |
| 7X0550 | 59 WASHER-HARD (13.5X32X5-MM THK) | 4 | |
| 7X0347 | 60 BOLT (5/8-11X2.25-IN) | 8 | |
| 5P8077 | 61 FLANGE-HALF | 4 | |
| 1P3705 | SEAL-RECTANGULAR | 2 | |
| 8R2004 | 62 TUBE AS | 1 | |
| 5G8697 | 63 HOSE AS | 2 | |
| 6V8639 | 64 CONNECTOR | 2 | |
| 8T4122 | 65 WASHER-HARD (17X32X3.5-MM THK) | 12 | |
| 3K0360 | 66 SEAL-O-RING | 8 | |
| 8T9393 | 67 BOLT (5/8-11X1.5-IN) | 4 | |
| 2V9109 | 68 PLATE | 2 | |
| 6V8625 | 69 ELBOW | 6 | |
| 4E4489 | 70 HOSE AS | 1 | |
| 9S4190 | 71 PLUG-O-RING (7/8-14-THD) | 1 | |
| 8R2009 | 72 TUBE AS | 1 | |
| 8R2010 | 73 TUBE AS | 1 | |
| 9T3096 | 74 VALVE GP-CHECK | 1 | |
| 5V9016 | 75 PLATE | 1 | |
| 8T2502 | 76 BOLT (3/8-16X1.125-IN) | 2 | |
| 4M6424 | 77 BOLT (5/16-18X3-IN) | 2 | |
| 6V8189 | NUT (5/16-18-THD) | 2 | |
| 8T4224 | WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 1U1100 | 78 VALVE GP-PRESSURE REDUCING | 1 | |
| 6V8398 | 79 SEAL-O-RING | 16 | |
| 6V8397 | 80 SEAL-O-RING | 10 | |
| 8R2005 | 81 TUBE AS | 2 | |
| 6V8398 | 82 SEAL-O-RING | 4 | |
| 6V9873 | 83 CONNECTOR | 6 | |
| 3J1907 | 84 SEAL-O-RING | 9 | |
| 6V8636 | 85 CONNECTOR | 1 | |
| 6V9843 | 86 TEE | 1 | |
| 6V8397 | 87 SEAL-O-RING | 3 | |
| 8R2007 | 88 TUBE AS | 1 | |
| 6V8789 | 89 TEE | 2 | |
| 8R6924 | 90 TUBE AS | 2 | |
| 9X2085 | 91 ELBOW | 2 | |
| 8J8197 | 92 CLIP | 1 |
