System And Components

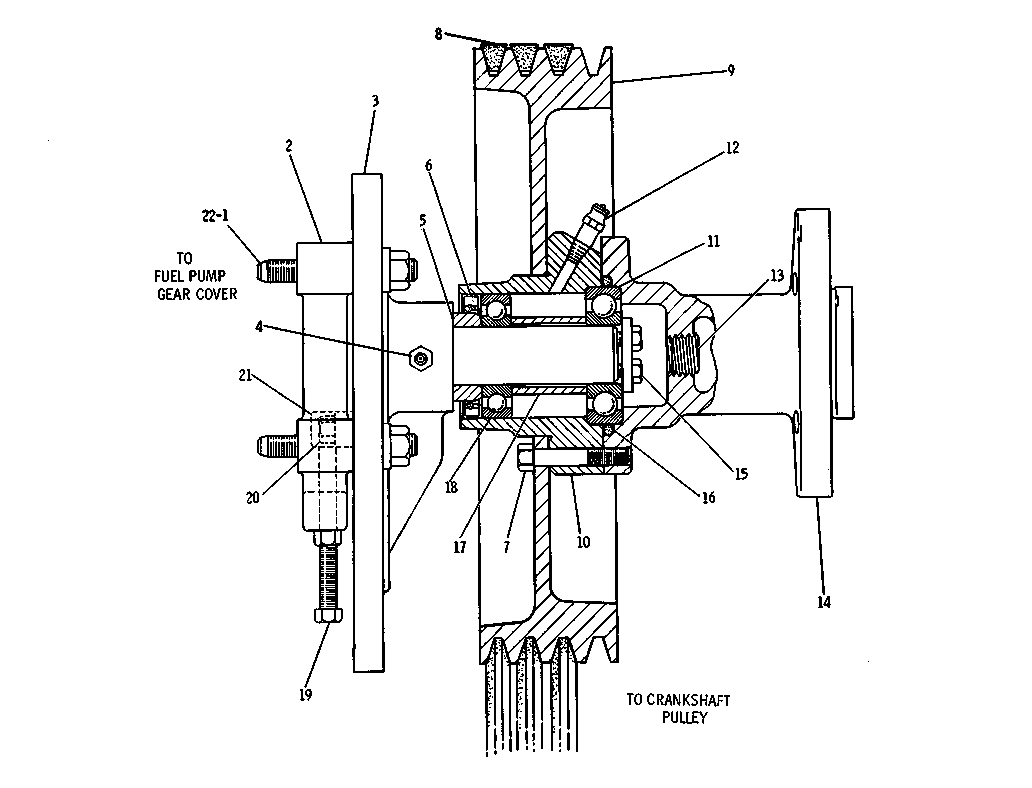

7N8971 FAN DRIVE GROUPFOR USAGE REFER TO 4N6973 CHART SHOWN ON PAGE 91. AN ATTACHMENT
Group No: 7N8971
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9L0553 | 1 STUD-TAPERLOCK | 4 | |
| 1F7960 | WASHER | 4 | |
| 6N2547 | 2 ADAPTER-FAN BRACKET | 1 | |
| 6N7688 | 3 BRACKET AS-FAN | 1 | |
| 4B4550 | 4 FITTING-RELIEF | 1 | |
| 5S9062 | 5 SPACER | 1 | |
| 5S2106 | 6 SEAL-LIP TYPE | 1 | |
| 0L2070 | 7 BOLT | 6 | |
| 6N6655 | 8 V-BELT SET | 1 | |
| 6N0598 | 9 PULLEY-FAN | 1 | |
| 7N8827 | 10 HUB | 1 | |
| 3L1425 | 11 BALL BEARING | 1 | |
| 2D4867 | 12 FITTING-HYDRAULIC | 1 | |
| 1B5174 | 13 PLUG-PIPE | 1 | |
| 4N3123 | 14 ADAPTER-FAN | 1 | |
| 1H5403 | 15 BOLT | 2 | |
| 5S7264 | WASHER-RETAINING 5.56MM(.219IN.)THK | 1 | |
| 5P7979 | BOLT-SELF LOCKING | 2 | |
| 7N2900 | WASHER-RETAINING 12.7MM(.50IN.)THK | 1 | |
| 9F4446 | 16 SEAL-O-RING | 1 | |
| 2P2243 | 17 SPACER | 1 | |
| 8H9789 | 18 BALL BEARING | 1 | |
| 8L5213 | 19 BOLT | 1 | |
| 1D4717 | NUT | 1 | |
| 0S1594 | 20 BOLT | 2 | |
| 6N2538 | 21 BRACKET-FAN ADJUSTMENT | 1 | |
| 1D4719 | 22 NUT | 4 |
