System And Components

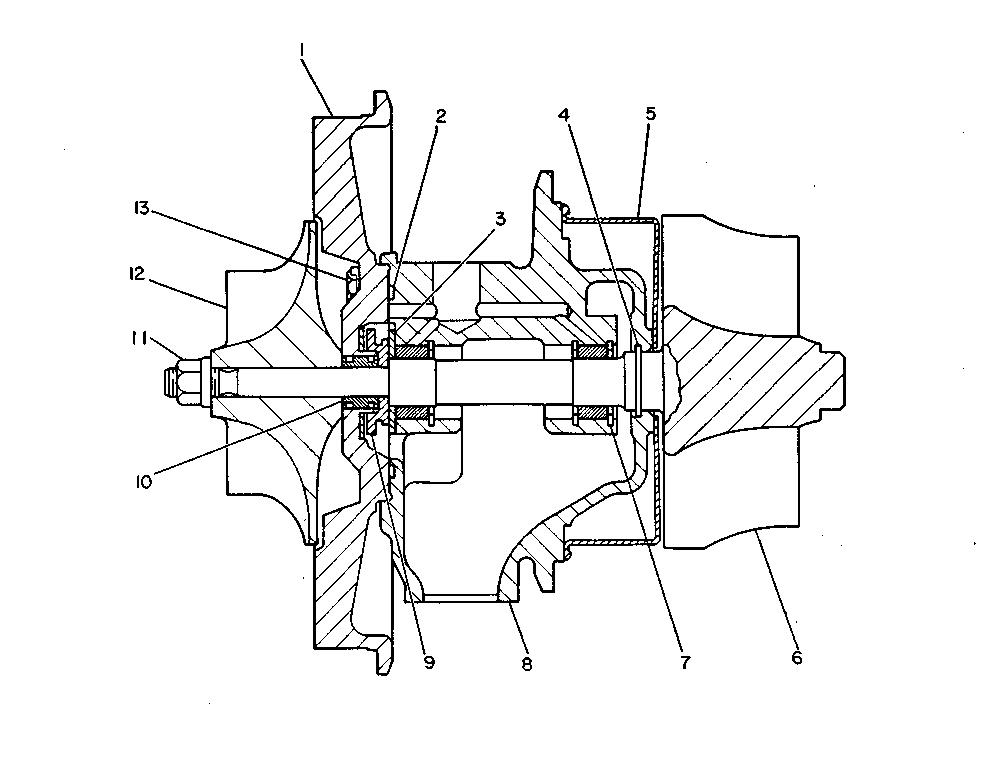

1N3999 TURBOCHARGER CARTRIDGE GROUP*RPART OF 1N3989 TURBOCHARGER GROUP SHOWN ON PAGE 135
Group No: 1N3999
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N7962 | 1 BACKPLATE AS | 1 | |
| 1P1120 | 2 RING-SEAL | 1 | |
| 6N5004 | 3 BEARING-THRUST | 1 | |
| 7N3759 | 4 RING-PISTON | 1 | |
| 9N3701 | 5 SHROUD-TURBINE WHEEL | 1 | |
| 9N2043 | 6 SHAFT & WHEEL AS | 1 | |
| 9M8915 | 7 RING-RETAINING | 3 | |
| 9N2035 | 8 HOUSING AS-CENTER | 1 | |
| 4M6646 | PIN-GROOVE | 2 | |
| 7W2368 | RING-SEAL | 1 | |
| 9M8911 | 9 COLLAR-THRUST | 1 | |
| 9N2046 | 10 SPACER-THRUST | 1 | |
| 9M8919 | RING-SEAL | 2 | |
| 1S1770 | 11 LOCKNUT-TURBOCHARGER | 1 | |
| 1N4000 | 12 WHEEL-COMPRESSOR | 1 | |
| 0S1616 | 13 BOLT | 4 | |
| 9N2036 | PLATE-LOCK | 4 | |
| 9N2047 | NAMEPLATE-CARTRIDGE | 1 | |
| 2F0808 | SCREW | 2 | |
| 9N2041 | KIT-BEARING | 1 |
