System And Components

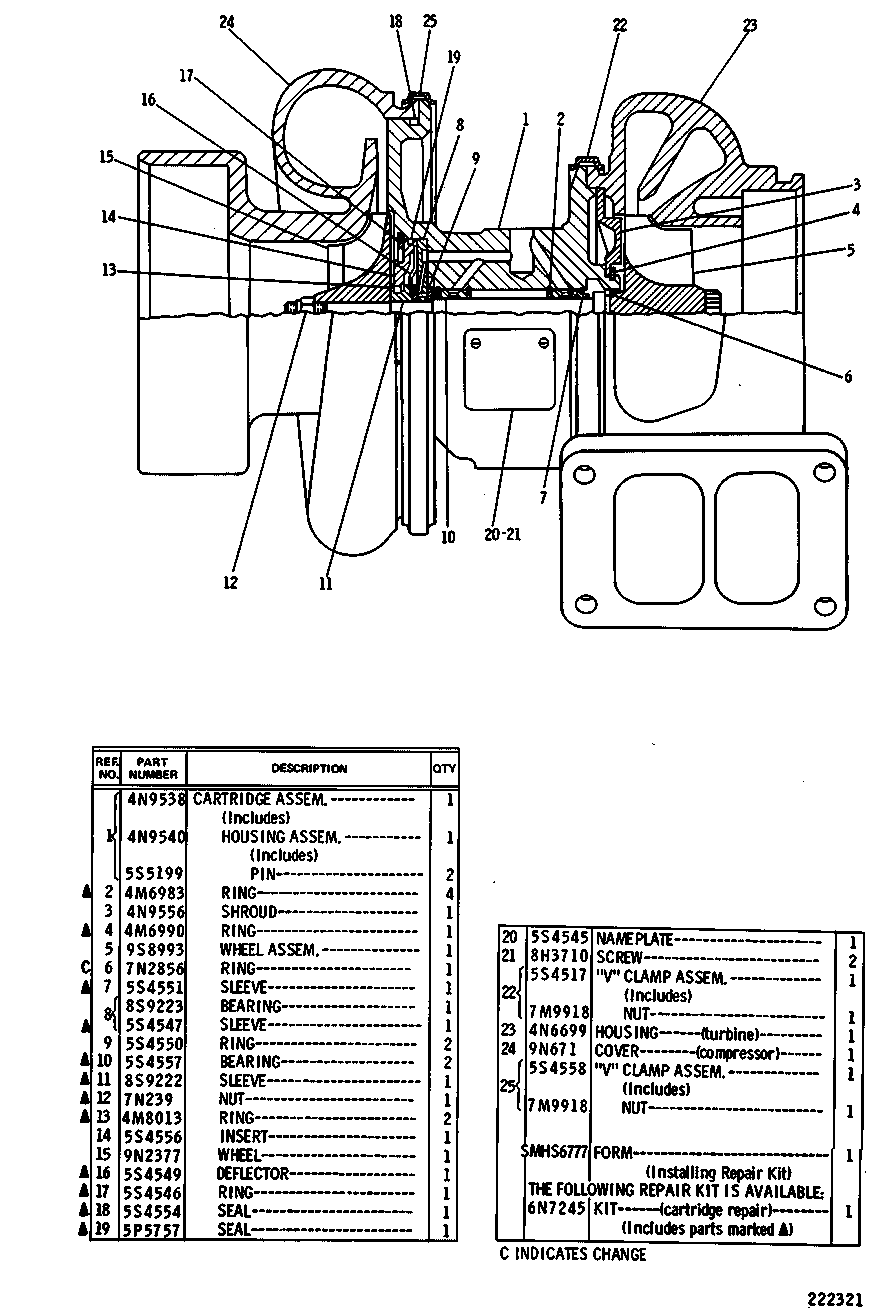

6N3249 TURBOCHARGER GROUP-BASICPART OF 6N3492 TURBOCHARGER GROUP SHOWN ON PAGE 137
Group No: 6N3249
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4N9538 | 1 CARTRIDGE ASSEM. | 1 | |
| 4N9540 | HOUSING ASSEM. | 1 | |
| 5S5199 | PIN | 2 | |
| 4M6983 | 2 RING | 4 | |
| 4N9556 | 3 SHROUD | 1 | |
| 4M6990 | 4 RING | 1 | |
| 9S8993 | 5 WHEEL ASSEM. | 1 | |
| 7N2856 | 6 RING | 1 | |
| 5S4551 | 7 SLEEVE | 1 | |
| 8S9223 | 8 BEARING | 1 | |
| 5S4547 | SLEEVE | 1 | |
| 5S4550 | 9 RING | 2 | |
| 5S4550 | 10 BEARING | 2 | |
| 8S9222 | 11 SLEEVE | 1 | |
| 7N0239 | 12 NUT | 1 | |
| 4M8013 | 13 RING | 2 | |
| 5S4556 | 14 INSERT | 1 | |
| 9N2377 | 15 WHEEL | 1 | |
| 5S4549 | 16 DEFLECTOR | 1 | |
| 5S4546 | 17 RING | 1 | |
| 5S4554 | 18 SEAL | 1 | |
| 5P5757 | 19 SEAL | 1 | |
| 5S4545 | 20 NAMEPLATE | 1 | |
| 8H3710 | 21 SCREW | 2 | |
| 5S4517 | 22 "V" CLAMP ASSEM. | 1 | |
| 7M9918 | NUT | 1 | |
| 4N6699 | 23 HOUSING (turbine) | 1 | |
| 9N0671 | 24 COVER (compressor) | 1 | |
| 5S4558 | 25 "V" CLAMP ASSEM. | 1 | |
| 7M9918 | NUT | 1 | |
| 6N7245 | KIT (cartridge repair) | 1 |
