System And Components

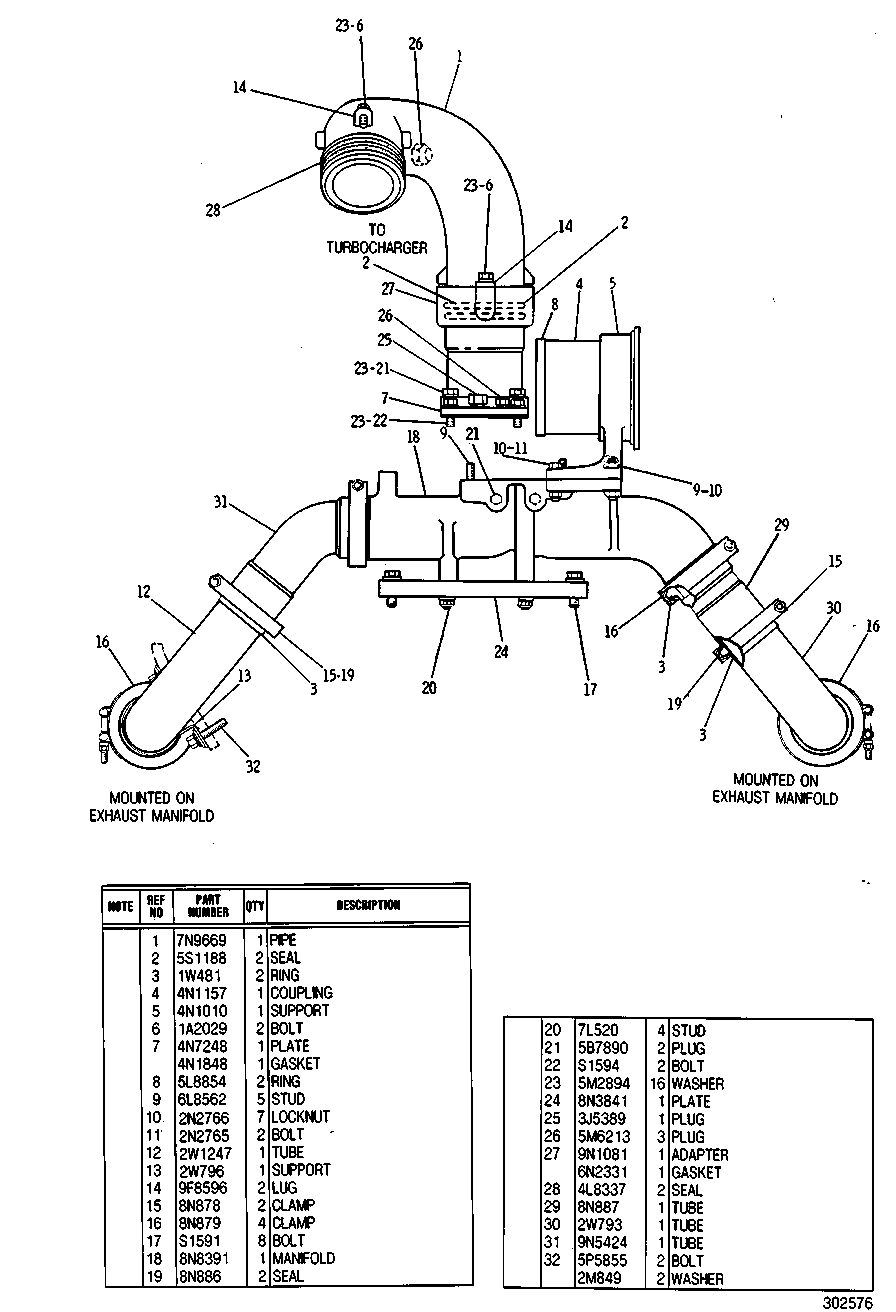

8N8392 AIR LINES GROUPSERIAL NO. 78Z1 TO 78Z1054 INCLUSIVE
Group No: 8N8392
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7N9669 | 1 PIPE-OUTLET | 1 | |
| 5S1188 | 2 SEAL-O-RING | 2 | |
| 1W0481 | 3 RING-EXHAUST SEAL | 2 | |
| 4N1157 | 4 COUPLING-EXHAUST | 1 | |
| 4N1010 | 5 SUPPORT-ELBOW | 1 | |
| 1A2029 | 6 BOLT | 2 | |
| 4N7248 | 7 PLATE | 1 | |
| 4N1848 | GASKET | 1 | |
| 5L8854 | 8 RING-SEALING | 2 | |
| 6L8562 | 9 STUD-TAPERLOCK | 5 | |
| 2N2766 | 10 LOCKNUT | 7 | |
| 2N2765 | 11 BOLT-HIGH TEMP | 2 | |
| 2W1247 | 12 TUBE-EXHAUST-RH | 1 | |
| 2W0796 | 13 SUPPORT-EXHAUST TUBE | 1 | |
| 9F8596 | 14 LUG | 2 | |
| 8N0878 | 15 CLAMP | 2 | |
| 8N0879 | 16 CLAMP | 4 | |
| 0S1591 | 17 BOLT | 8 | |
| 8N8391 | 18 MANIFOLD-MOUNT | 1 | |
| 8N0886 | 19 SEAL-EXHAUST | 2 | |
| 7L0520 | 20 STUD-TAPERLOCK | 4 | |
| 5B7890 | 21 PLUG-PIPE | 2 | |
| 0S1594 | 22 BOLT | 2 | |
| 5M2894 | 23 WASHER | 16 | |
| 8N3841 | 24 PLATE | 1 | |
| 3J5389 | 25 PLUG | 1 | |
| 5M6213 | 26 PLUG | 3 | |
| 9N1081 | 27 ADAPTER-TRANSFER PIPE | 1 | |
| 6N2331 | GASKET | 1 | |
| 4L8337 | 28 SEAL-O-RING | 2 | |
| 8N0887 | 29 TUBE-EXHAUST | 1 | |
| 2W0793 | 30 TUBE-EXHAUST-LH | 1 | |
| 9N5424 | 31 TUBE | 1 | |
| 5P5855 | 32 BOLT-12 POINT HEAD | 2 | |
| 2M0849 | WASHER | 2 |
