System And Components

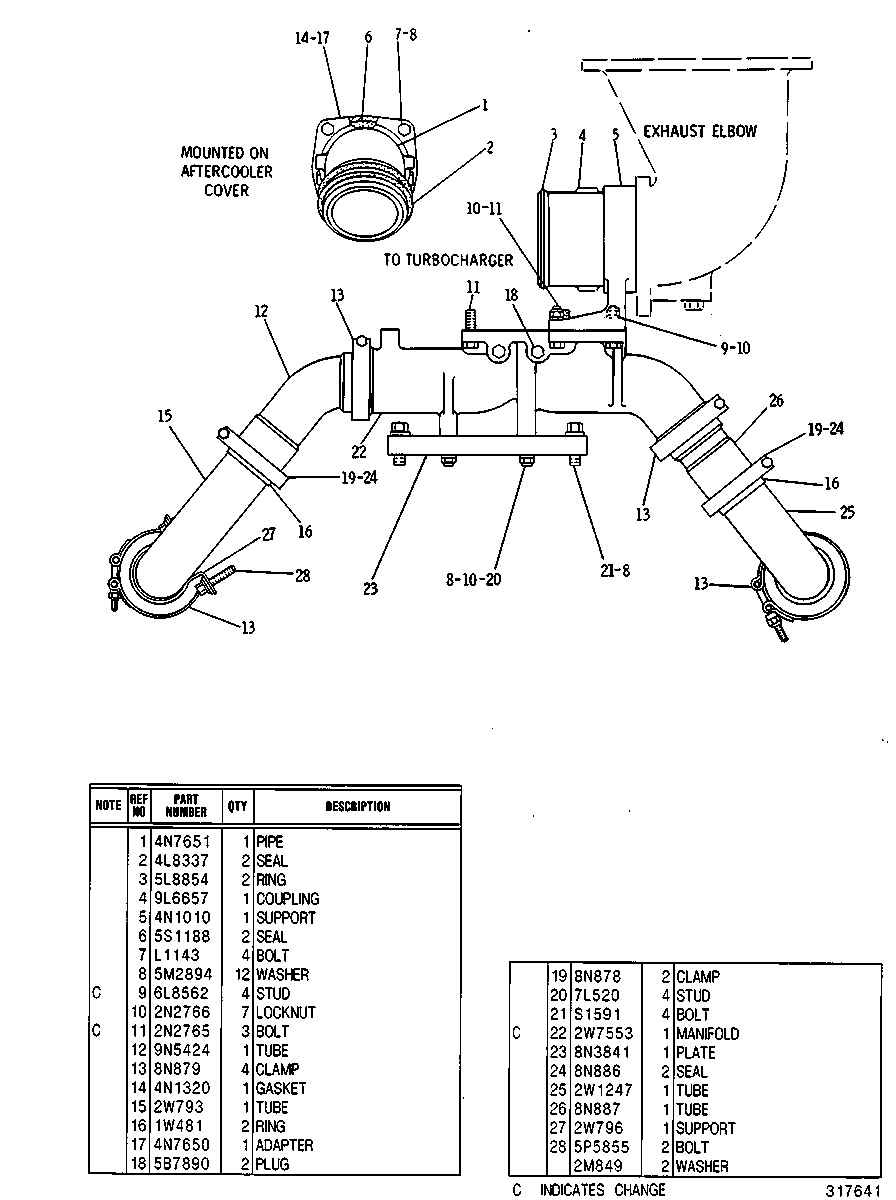

8N8393 AIR LINES GROUPSERIAL NO. 78Z1055-UP
Group No: 8N8393
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4N7651 | 1 PIPE-OUTLET | 1 | |
| 4L8337 | 2 SEAL-O-RING | 2 | |
| 5L8854 | 3 RING-SEALING | 2 | |
| 9L6657 | 4 COUPLING-EXHAUST | 1 | |
| 4N1010 | 5 SUPPORT-ELBOW | 1 | |
| 5S1188 | 6 SEAL-O-RING | 2 | |
| 0L1143 | 7 BOLT | 4 | |
| 5M2894 | 8 WASHER | 12 | |
| 6L8562 | 9 STUD-TAPERLOCK | 4 | |
| 2N2766 | 10 LOCKNUT | 7 | |
| 2N2765 | 11 BOLT-HIGH TEMP | 3 | |
| 9N5424 | 12 TUBE | 1 | |
| 8N0879 | 13 CLAMP | 4 | |
| 4N1320 | 14 GASKET-ADAPTER | 1 | |
| 2W0793 | 15 TUBE-EXHAUST-LH | 1 | |
| 1W0481 | 16 RING-EXHAUST SEAL | 2 | |
| 4N7650 | 17 ADAPTER | 1 | |
| 5B7890 | 18 PLUG-PIPE | 2 | |
| 8N0878 | 19 CLAMP | 2 | |
| 7L0520 | 20 STUD-TAPERLOCK | 4 | |
| 0S1591 | 21 BOLT | 4 | |
| 2W7553 | 22 MANIFOLD-MOUNT | 1 | |
| 8N3841 | 23 PLATE | 1 | |
| 8N0886 | 24 SEAL-EXHAUST | 2 | |
| 2W1247 | 25 TUBE-EXHAUST-RH | 1 | |
| 8N0887 | 26 TUBE-EXHAUST | 1 | |
| 2W0796 | 27 SUPPORT-EXHAUST TUBE | 1 | |
| 5P5855 | 28 BOLT-12 POINT HEAD | 2 | |
| 2M0849 | WASHER | 2 |
