System And Components

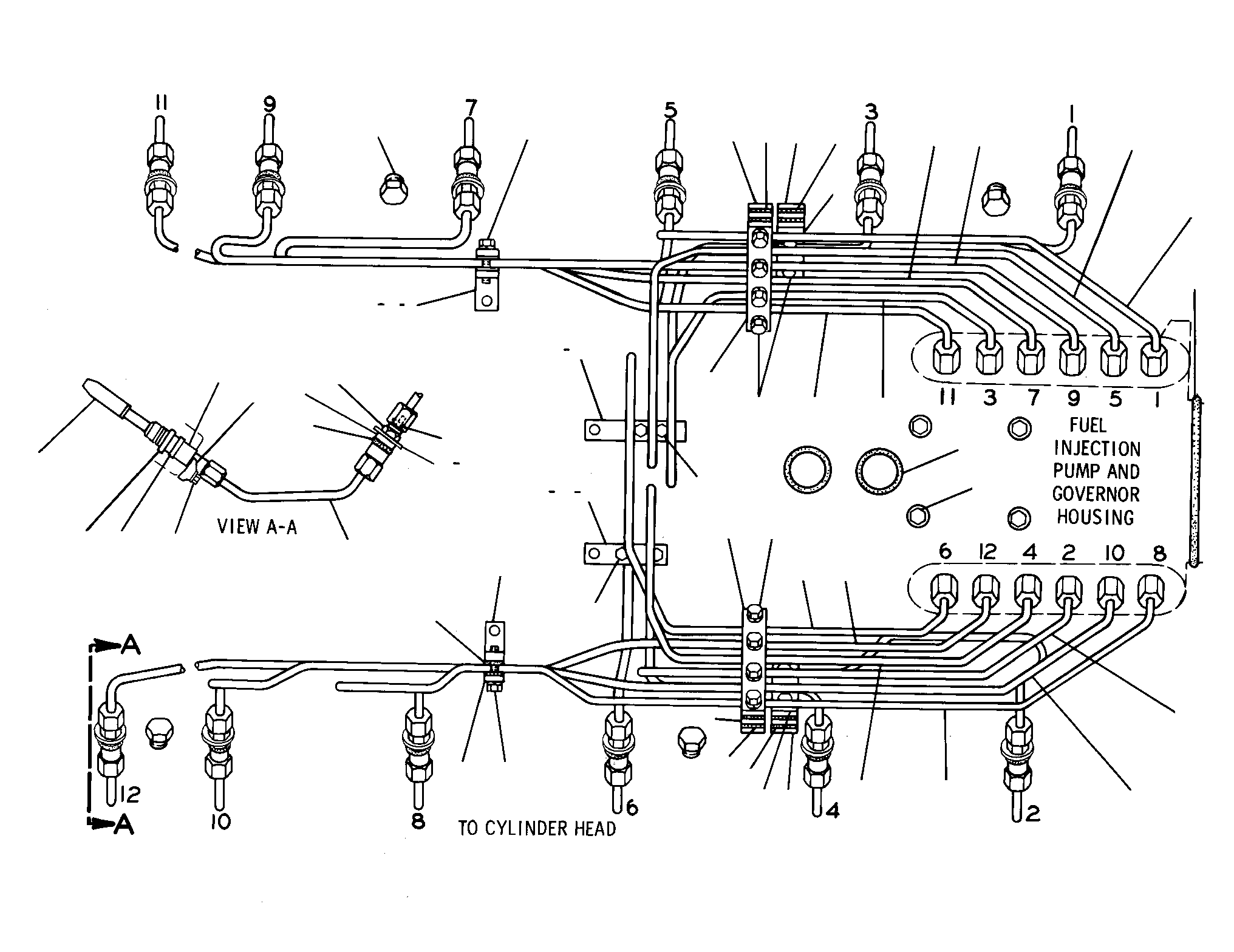

8N4200 FUEL INJECTION LINES GROUPS/N 81Z1-4760
Group No: 8N4200
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N2944 | 1 PLUG | 4 | |
| 7N0654 | 2 BOLT AS | 24 | |
| 4L1468 | 3 WASHER 1.5MM(.06IN.)THK | 12 | |
| 6N4721 | 4 BRACKET | 2 | |
| 7N0661 | 5 CLAMP | 2 | |
| 7N0662 | 6 DAMPER | 4 | |
| 7N0669 | 7 CLAMP | 2 | |
| 6N0925 | 8 CLAMP | 2 | |
| 7N0813 | 9 DAMPER | 4 | |
| 8S3997 | 10 CLAMP | 1 | |
| 7N0663 | 11 CLAMP | 1 | |
| 7N0664 | 12 DAMPER | 2 | |
| 8N4207 | 13 LINE AS-FUEL INJ (NO. 7) | 1 | |
| 8N4209 | 14 LINE AS-FUEL INJ (NO. 9) | 1 | |
| 8N4205 | 15 LINE AS-FUEL INJ (NO. 5) | 1 | |
| 8N4201 | 16 LINE AS-FUEL INJ (NO. 1) | 1 | |
| 6V4314 | 17 SEAL-O-RING | 1 | |
| 1S0004 | 18 SEAL-O-RING | 2 | |
| 0S1591 | 19 BOLT | 4 | |
| 5M2894 | WASHER | 4 | |
| 0688438 | SPACER | 4 | |
| 8N5111 | 20 LINE AS-FUEL INJ (NO.11) | 1 | |
| 8N4203 | 21 LINE AS-FUEL INJ (NO. 3) | 1 | |
| 8N4206 | 22 LINE AS-FUEL INJ (NO. 6) | 1 | |
| 8N4212 | 23 LINE AS-FUEL INJ (NO.12) | 1 | |
| 8N4202 | 24 LINE AS-FUEL INJ (NO. 2) | 1 | |
| 8N4210 | 25 LINE AS-FUEL INJ (NO.10) | 1 | |
| 8N4208 | 26 LINE AS-FUEL INJ (NO. 8) | 1 | |
| 8N4204 | 27 LINE AS-FUEL INJ (NO. 4) | 1 | |
| 7N0665 | 28 CLAMP | 1 | |
| 6N2751 | 29 CLAMP | 2 | |
| 7N0671 | 30 DAMPER | 4 | |
| 7N0814 | 31 DAMPER | 2 | |
| 7N0670 | 32 BRACKET | 1 | |
| 7N0666 | 33 CLAMP 91.94MM(3.62IN.)LG | 1 | |
| 6N4720 | CLAMP 63.50MM(2.50IN.)LG | 1 | |
| 1B5354 | 34 NUT-FULL | 12 | |
| 9M1974 | WASHER 2.1MM(.08IN.)THK | 12 | |
| 4N1797 | 35 ADAPTER AS | 12 | |
| 8M4437 | 36 SEAL-O-RING | 1 | |
| 9N3970 | 37 LINE AS-FUEL INJ | 12 | |
| 1H1023 | SEAL-O-RING | 12 | |
| 5P6900 | 38 BOLT-12 POINT HEAD | 48 | |
| 2W3390 | 39 BODY AS-FUEL INJ VALVE | 12 | |
| 5P2060 | 40 SEAL-SECTION | 1 | |
| 4N1292 | 41 LOCK-ADAPTER | 12 | |
| 9L6884 | 42 NOZZLE AS-VALVE | 12 | |
| 9N2481 | 43 SPACER | 12 | |
| 4W5717 | 44 CLAMP-FUEL NOZZLE | 24 | |
| 4W5718 | 45 SLEEVE | 12 |
