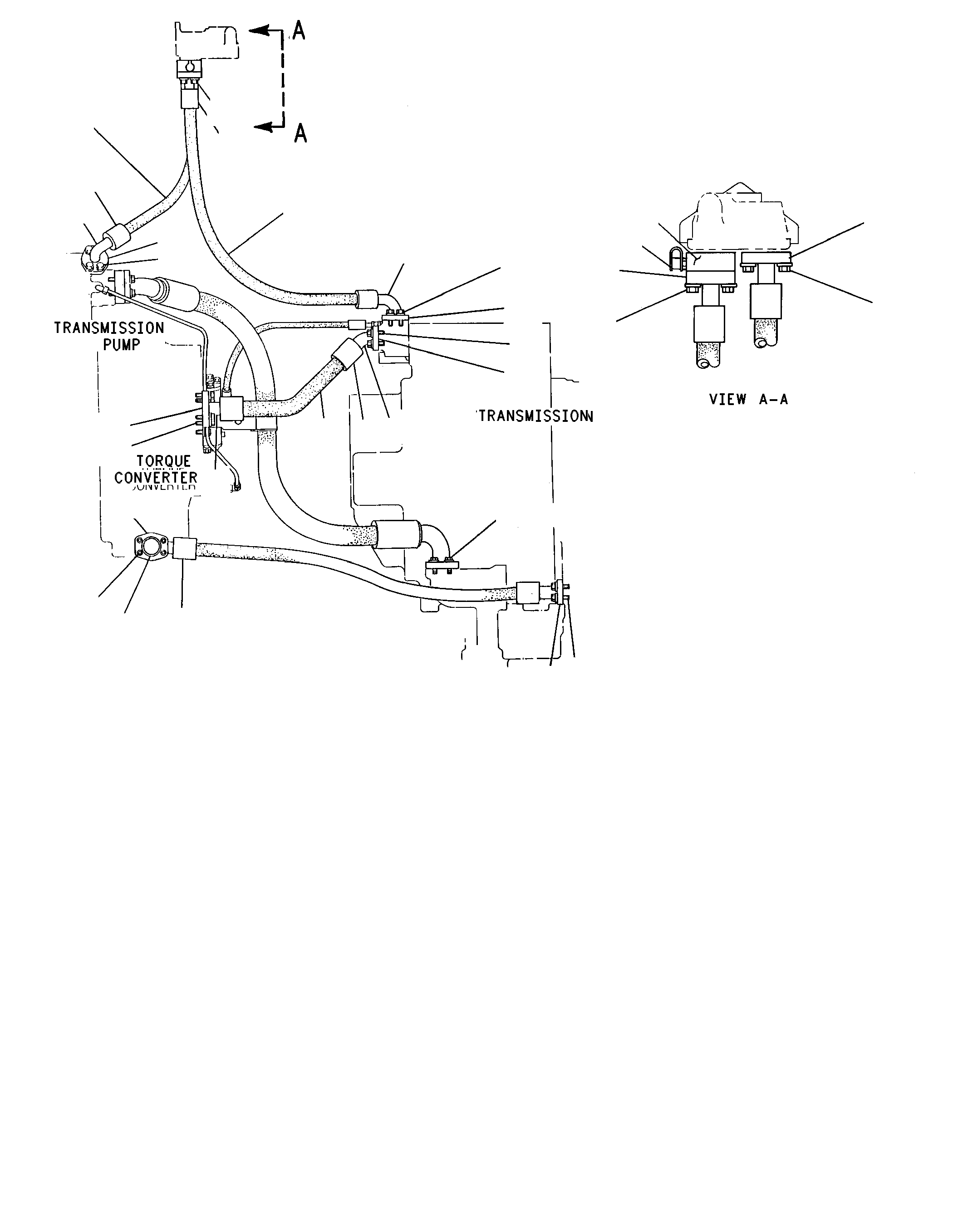

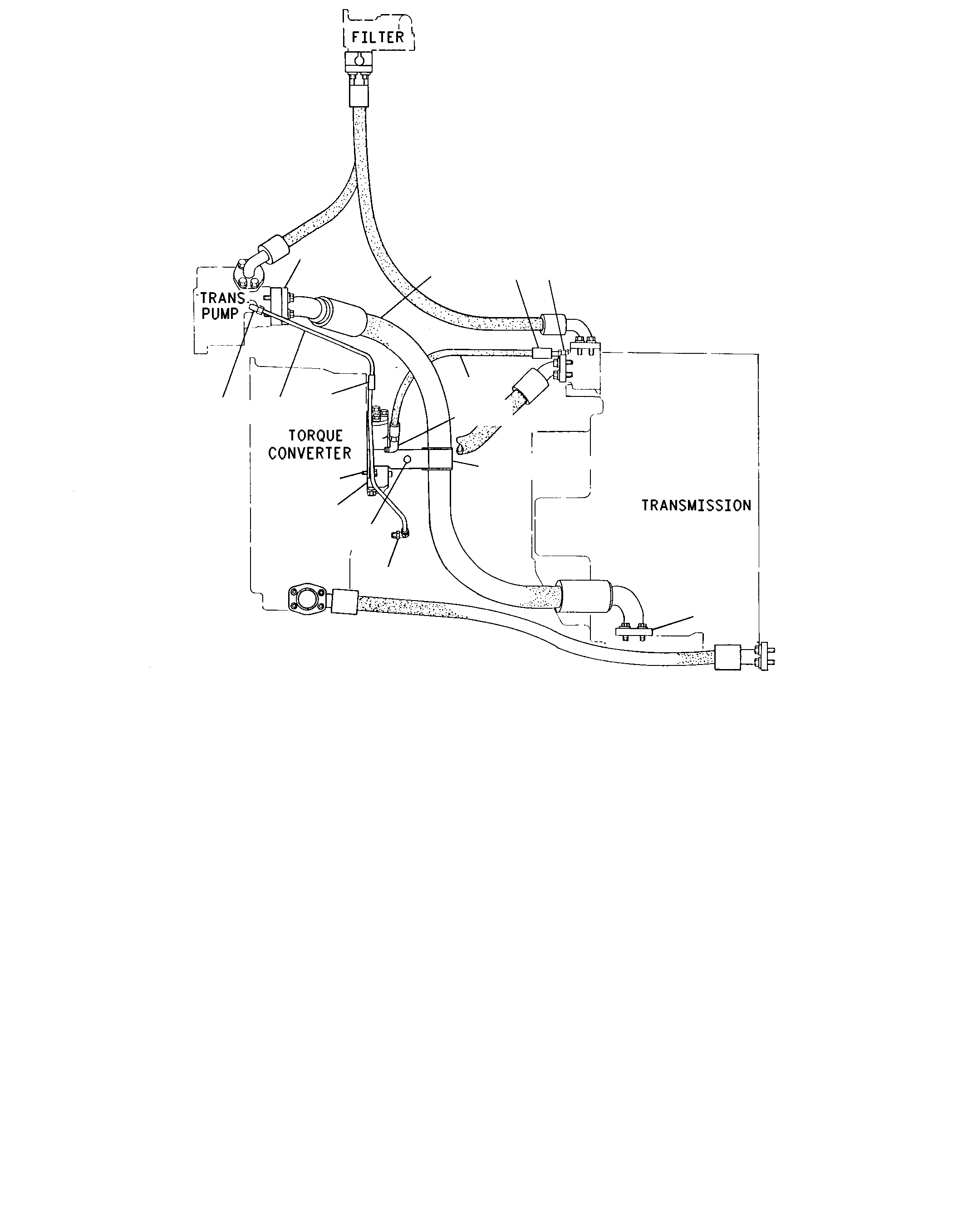

8V-1004 LINES GP-POWER TRAIN OILS/N 50W9010-10580

Group No: 8V-1004
Part NumberPart NameQty
1P45781 FLANGE-HALF12
4J05222 SEAL-O-RING7
8T89163 BOLT (7/16-14X1.5-IN)16
8T53604 WASHER (12X22.5X2.5-MM THK)24
2V50435 HOSE AS1
8S9355HOSE (IN. 109CM)
7S05756 STEM AS (90)1
6V14047 STEM AS (STRAIGHT)1
3S72528 SLEEVE2
2V29349 HOSE AS1
8S9355HOSE (IN. 52.5CM)
6V1404STEM AS (STRAIGHT)1
7S057510 STEM AS (90)1
3S725211 SLEEVE2
7X030812 BOLT (7/16-14X1.375-IN)4
8R024713 SPACER1
4J052714 SEAL-O-RING2
2V503815 HOSE AS1
8S9348HOSE (IN. 43CM)
5S377916 STEM AS (STRAIGHT)1
3S857017 STEM AS (45)1
3S711618 SLEEVE2
1P457919 FLANGE-HALF4
8T891920 BOLT (1/2-13X1.75-IN)8
8T422321 WASHER-HARD (13.5X25.5X3-MM THK)16
5P256622 BOLT (1/2-13X1.5-IN)8
7X031323 BOLT (7/16-14X2.75-IN)4
4V177624 HOSE AS1
8C344725 CAP-DUST1
8C344626 VALVE-SAMPLING1
3J7354SEAL-O-RING1
6W561927 HOSE AS1
3V073028 HOSE AS1
2P5943HOSE (IN. 62CM)
4S541429 SLEEVE2
8S641730 COUPLING AS2
2R680631 CONNECTOR1
3J190732 SEAL-O-RING4
1P458233 FLANGE-HALF4
4J0527SEAL-O-RING2
6P656934 VALVE GP-SEQUENCE & PRESS CONT1
4L6459BOLT (3/8-16X2.5-IN)3
8M4447SEAL-O-RING1
8M4988SEAL-O-RING3
030794735 ADAPTER-ELBOW3
6V186736 CLIP (SLOT)1
6V1868CLIP (TAB)1
8C443637 BOLT (1/2-13X1.375-IN)1
7X0584WASHER-HARD (13.5X20.5X2-MM THK)2
6V8188NUT (1/2-13-THD)1
8T422338 WASHER-HARD (13.5X25.5X3-MM THK)1
2V296539 BRACKET1
5P256640 BOLT (1/2-13X1.5-IN)1
6V186941 GROMMET (65-MM ID)1
8B612742 CLIP (LOOP)1
2V966743 TUBE AS1
