System And Components

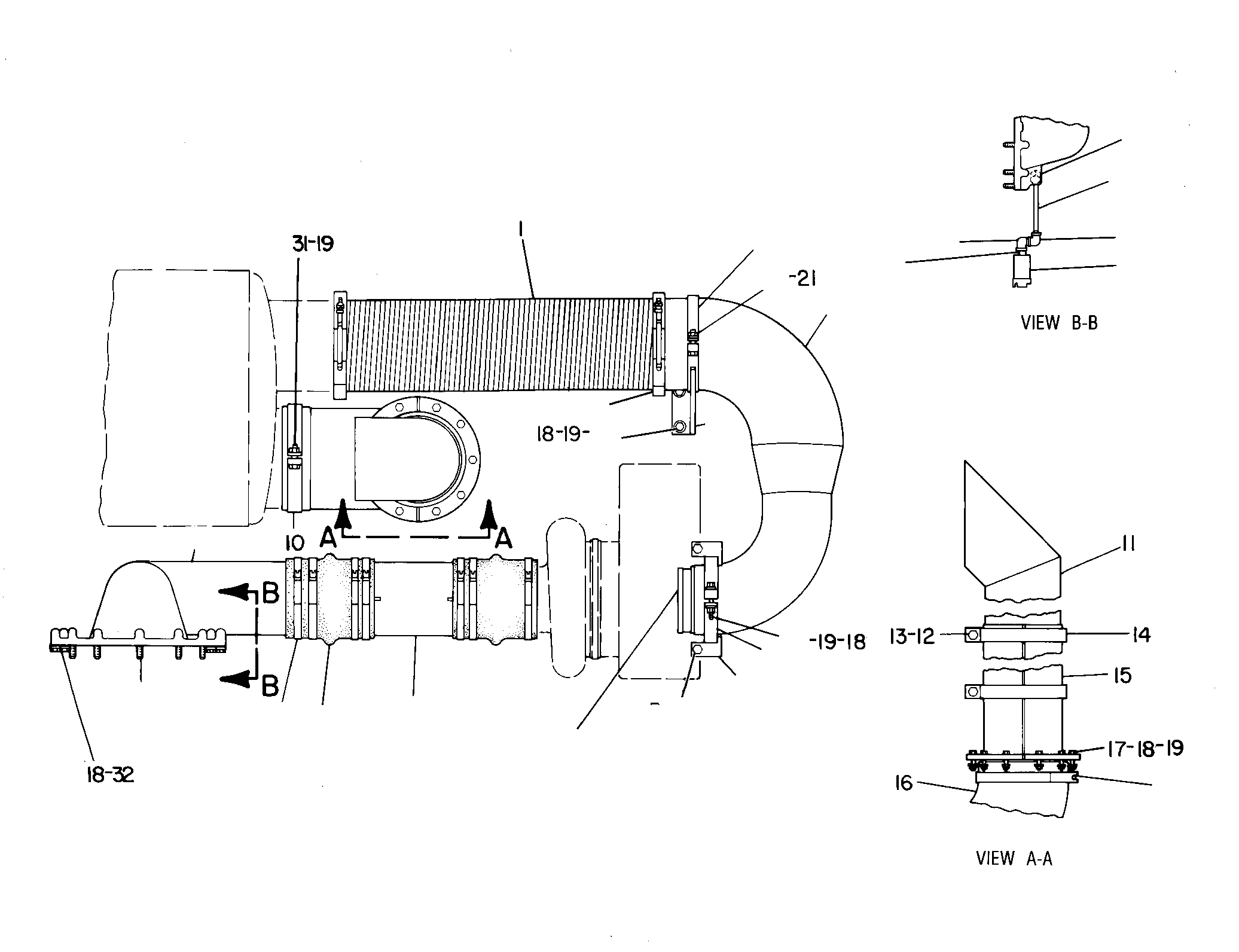

8N-2398 LINES GP-AIRS/N 90Z1-108; 91Z1-202
Group No: 8N-2398
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1W3336 | 1 PIPE AS-EXHAUST | 1 | |
| 1W6694 | 2 CLAMP AS | 2 | |
| 1W3332 | 3 BRACKET AS | 1 | |
| 1W3335 | 4 STRAP | 1 | |
| 1W3331 | 5 PIPE AS-EXHAUST | 1 | |
| 7N4901 | 6 COUPLING-ELBOW | 1 | |
| 1W3302 | 7 TUBE AS | 1 | |
| 7S1131 | 8 HOSE-ADAPTER | 2 | |
| 5P3860 | 9 CLAMP-HOSE | 7 | |
| 2P7418 | 10 CLAMP | 1 | |
| 1W3341 | 11 EJECTOR AS-EXHAUST | 1 | |
| 0S1587 | 12 BOLT (1/2-13X1.75-IN) | 2 | |
| 1K6872 | 13 LOCKNUT (1/2-13-THD) | 2 | |
| 5S5327 | 14 CLAMP | 2 | |
| 1W3338 | 15 SUPPORT AS | 2 | |
| 1W3337 | 16 ELBOW AS-EXHAUST | 1 | |
| 3B1915 | 17 BOLT (3/8-16X1.375-IN) | 10 | |
| 5M2894 | 18 WASHER-HARD (10.2X18.5X2.5-MM THK) | 22 | |
| 1D4717 | 19 NUT (3/8-16-THD) | 14 | |
| 0S1591 | 20 BOLT (3/8-16X1.5-IN) | 4 | |
| 1B5355 | 21 NUT-FULL (3/8-16-THD) | 2 | |
| 3B6552 | 22 ELBOW-PIPE | 1 | |
| 6V1813 | 23 FITTING | 1 | |
| 1W0613 | 24 INDICATOR AS-AIR FILTER CHANGE (SERVICE) | 1 | |
| 8B4884 | 25 ELBOW | 1 | |
| 3B7736 | 26 FITTING | 1 | |
| 7M1674 | 27 SCREEN-AIR CLEANER INLET | 1 | |
| 1W3342 | 28 CLAMP | 1 | |
| 1W3246 | 29 MANIFOLD | 1 | |
| 2M1538 | 30 STUD-TAPERLOCK (3/8-16X1.6-IN) | 20 | |
| 0S1571 | 31 BOLT (3/8-16X1.75-IN) | 1 | |
| 0L1351 | 32 BOLT (3/8-16X0.875-IN) | 8 | |
| 4W1218 | 33 PLATE | 2 | |
| 0S1618 | 34 BOLT (5/16-18X1-IN) | 2 | |
| 5P4116 | 35 WASHER-HARD (8.8X20.5X2-MM THK) | 4 | |
| 0S1590 | 36 BOLT (3/8-16X2-IN) | 1 | |
| 8M0280 | 37 CLAMP | 1 |
