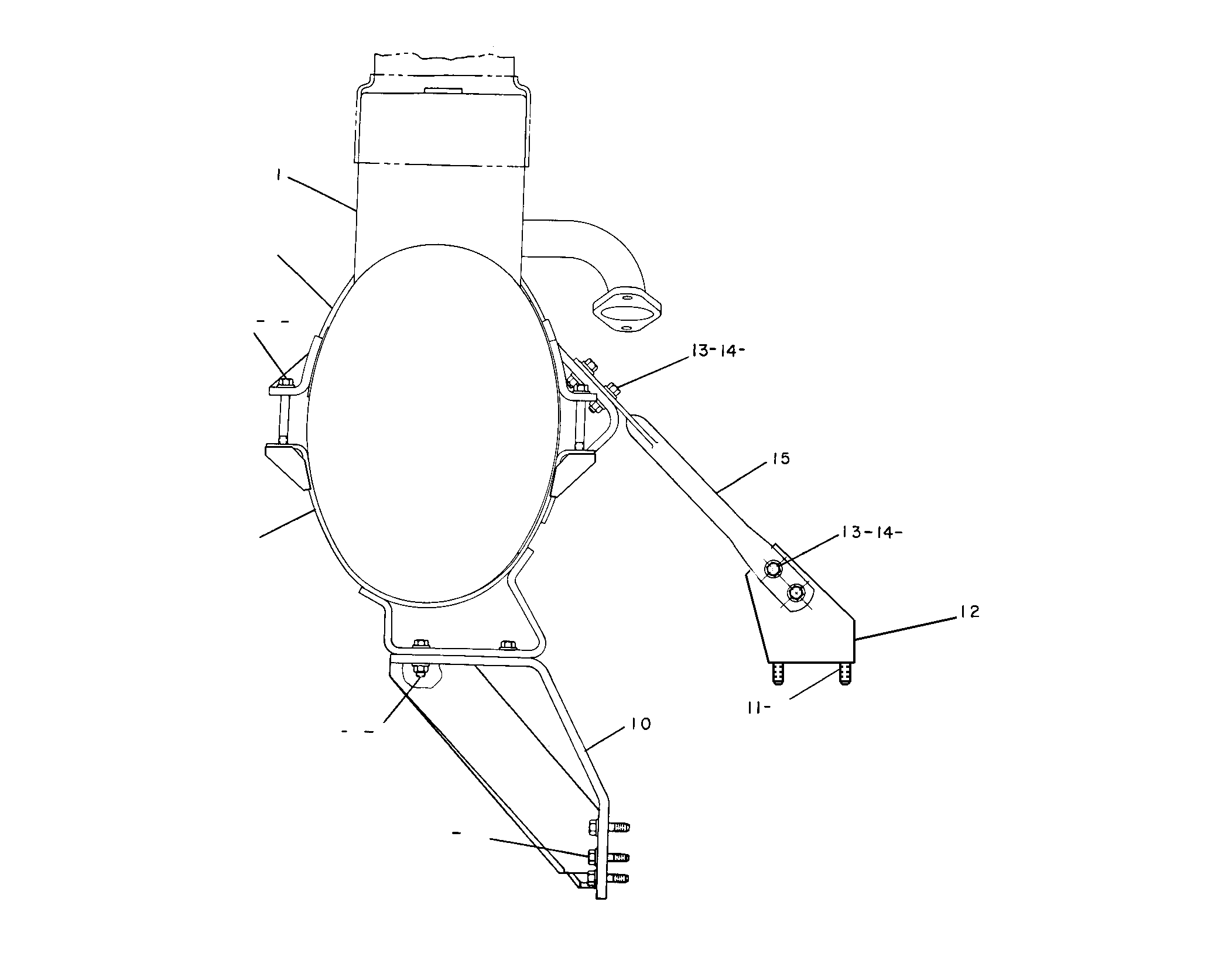

2W-9625 MUFFLER GPS/N 90Z146-UP; 91Z266-UP

Group No: 2W-9625
Part NumberPart NameQty
2W96261 MUFFLER AS1
7C70472 BRACKET AS1
7X02913 BOLT (3/8-16X3.75-IN)4
8T48964 WASHER-HARD (10.2X18.5X2.5-MM THK)19
2K49735 LOCKNUT (3/8-16-THD)4
8T25026 BOLT (3/8-16X1.125-IN)5
7C20387 BRACKET AS2
4L93378 BOLT (3/8-16X1.5-IN)2
6V88019 NUT (3/8-16-THD)6
2W962710 BRACKET AS1
8T250111 BOLT (3/8-16X2-IN)2
7C066012 BRACKET AS1
5S738213 BOLT (3/8-16X1.375-IN)4
5P107514 WASHER-HARD (10.2X22.5X3-MM THK)8
7C099415 BRACE1
