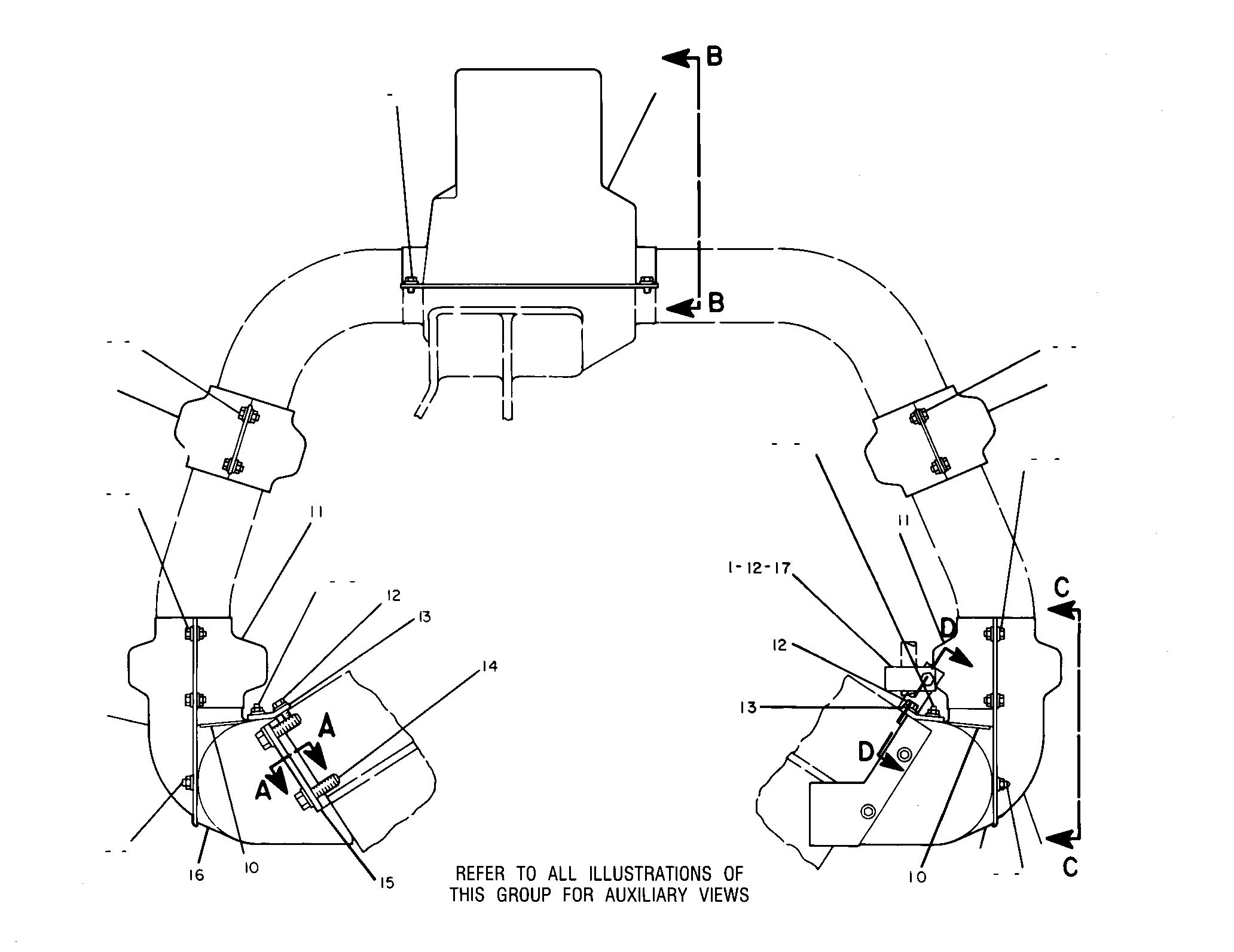

2W-2171 SHIELD GP-MANIFOLDS/N 89Z95-193

Group No: 2W-2171
Part NumberPart NameQty
1D47171 NUT (3/8-16-THD)1
9M19742 WASHER-HARD (8.8X16X2-MM THK)53
8N23683 SHIELD AS1
2H37554 BOLT (5/16-18X0.43-IN)21
1B53545 NUT-FULL (5/16-18-THD)32
1N33006 SHIELD AS4
8N15947 SHIELD AS2
6V27128 STUD16
1W61839 SHIELD AS-MANIFOLD1
6V5044NUT-WELD (5/16-18-THD)(PILOT)10
8N161610 SHIELD AS2
8N161911 SHIELD AS2
0S159412 BOLT (3/8-16X1-IN)12
5M2894WASHER-HARD (10.2X18.5X2.5-MM THK)13
1W339713 PLATE2
0S158714 BOLT (1/2-13X1.75-IN)2
5P8245WASHER-HARD (13.5X25.5X3-MM THK)2
8N795315 PLATE1
1W618416 SHIELD AS1
6V5044NUT-WELD (5/16-18-THD)(PILOT)10
6K493817 CLIP1
6K4939CLIP1
5P995918 BOLT (5/16-18X0.5-IN)6
4B427719 WASHER (8.8X17.5X1.6-MM THK)4
8N795420 PLATE2
2W142621 PLATE1
9M197422 WASHER-HARD (8.8X16X2-MM THK)2
1A202923 BOLT (3/8-16X1.125-IN)1
5M2894WASHER-HARD (10.2X18.5X2.5-MM THK)1
1W618524 SHIELD AS1
6V5044NUT-WELD (5/16-18-THD)2
9M417225 BRACKET1
